Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List

Scan Tool Data List

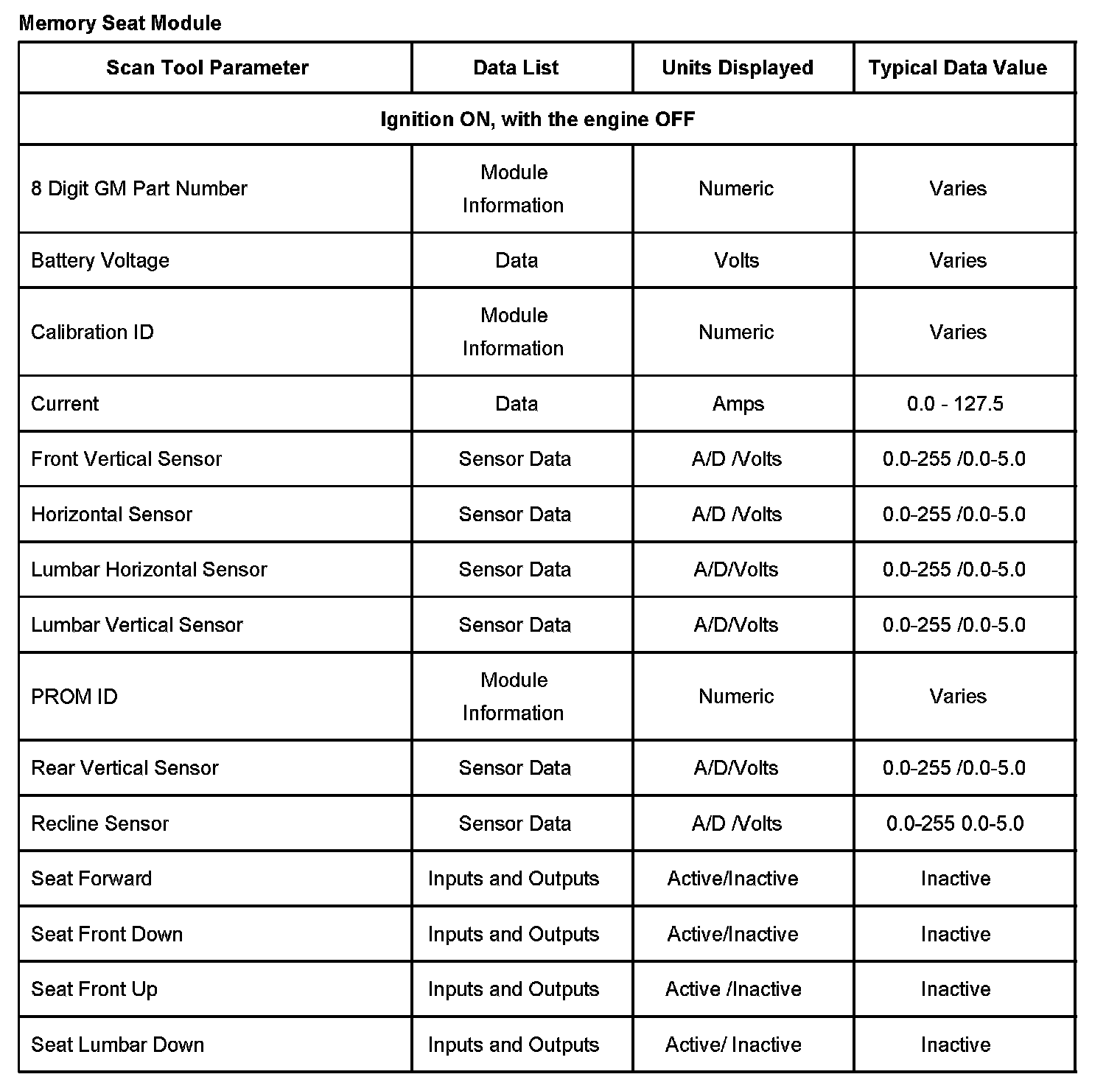

Memory Seat Module Part 1:

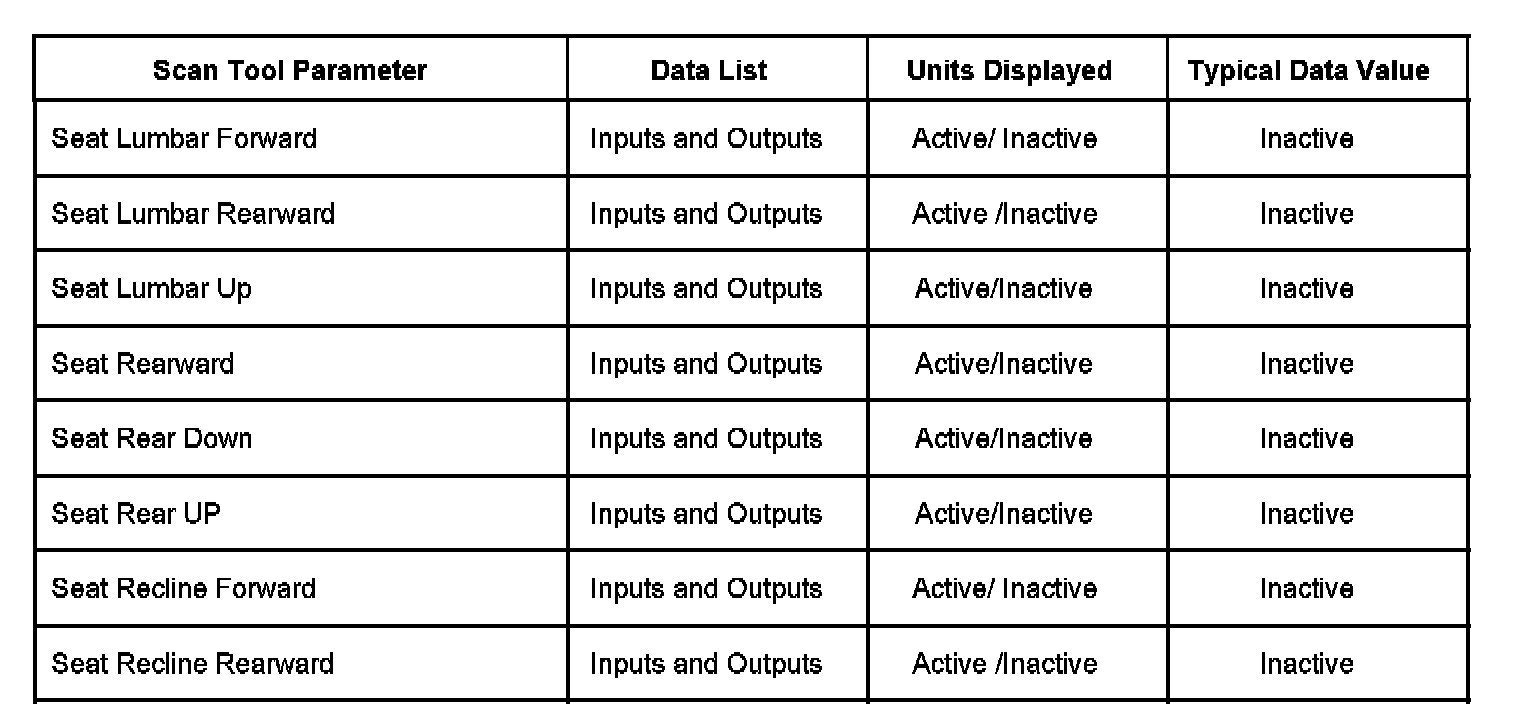

Memory Seat Module Part 2:

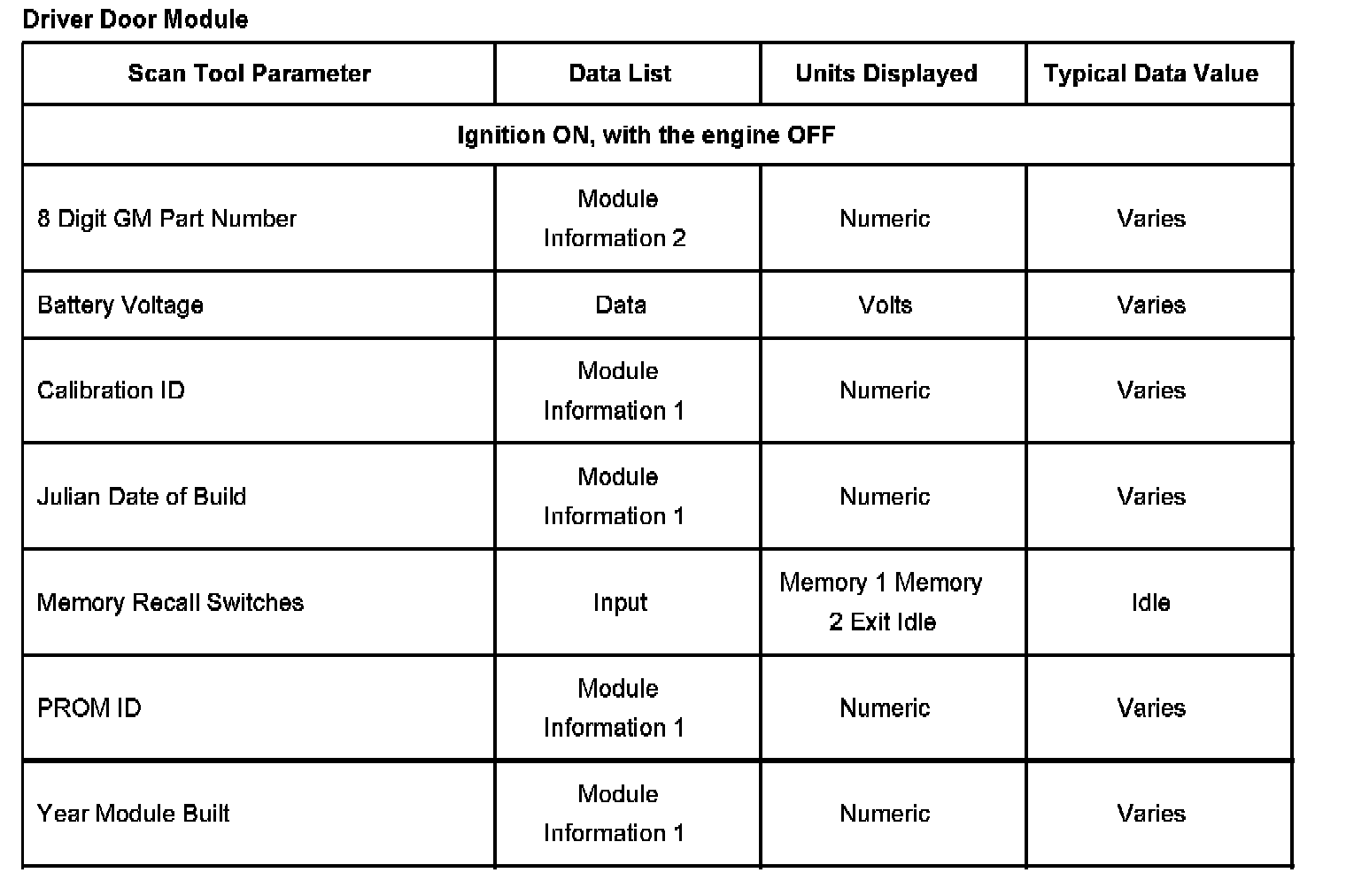

Driver Door Module:

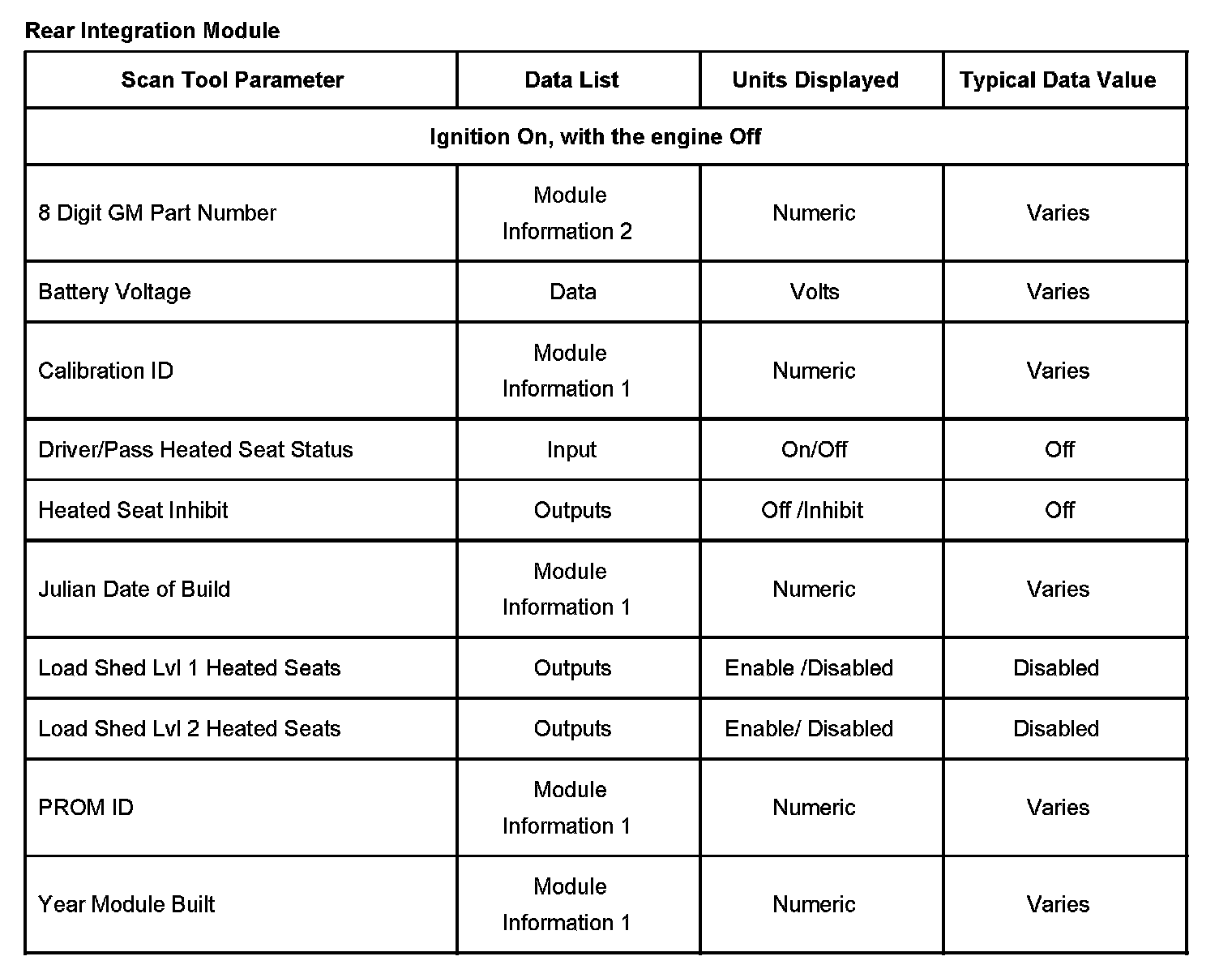

Rear Integration Module:

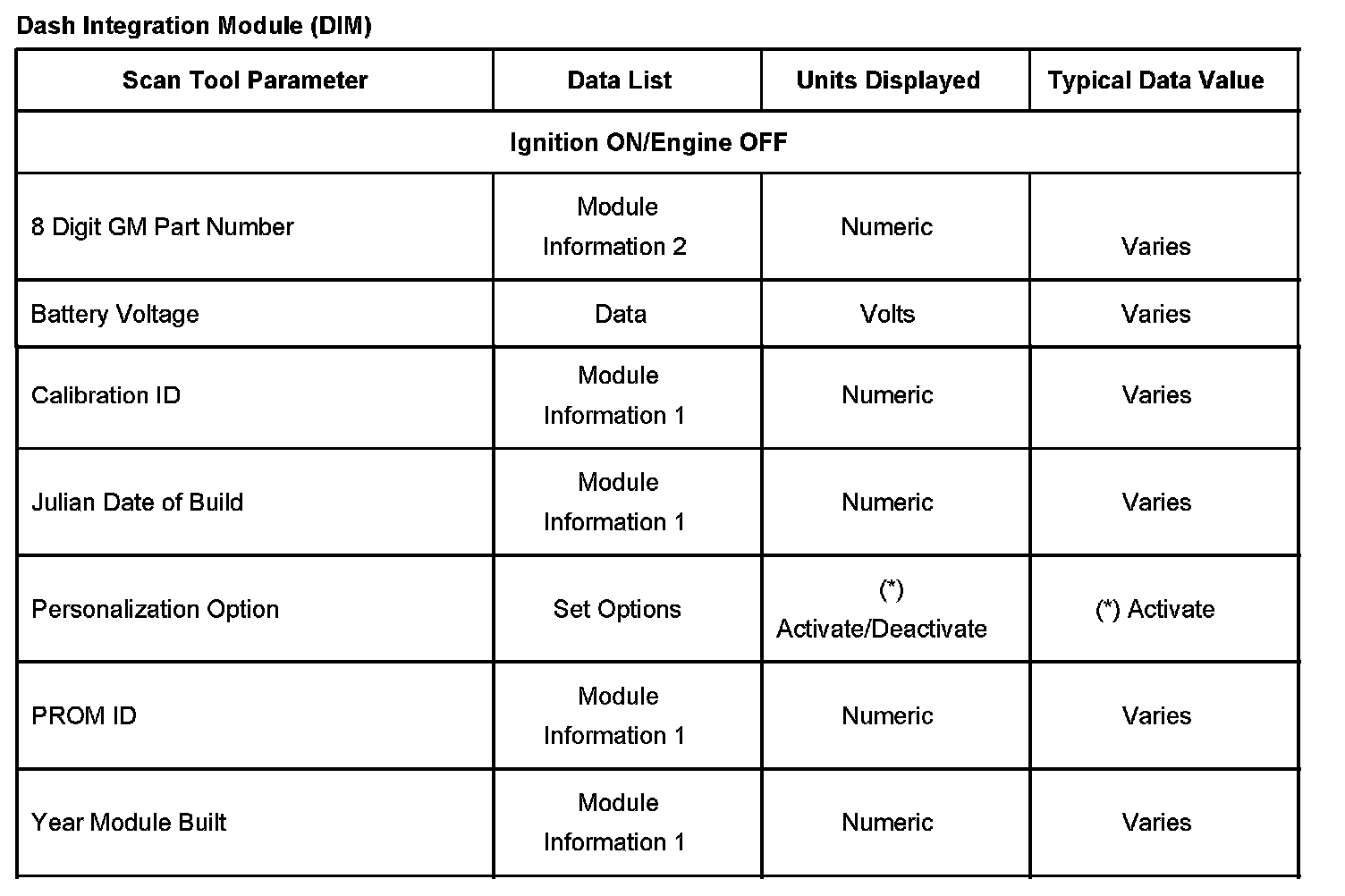

Dash Integration Module (DIM):
