Connector Views

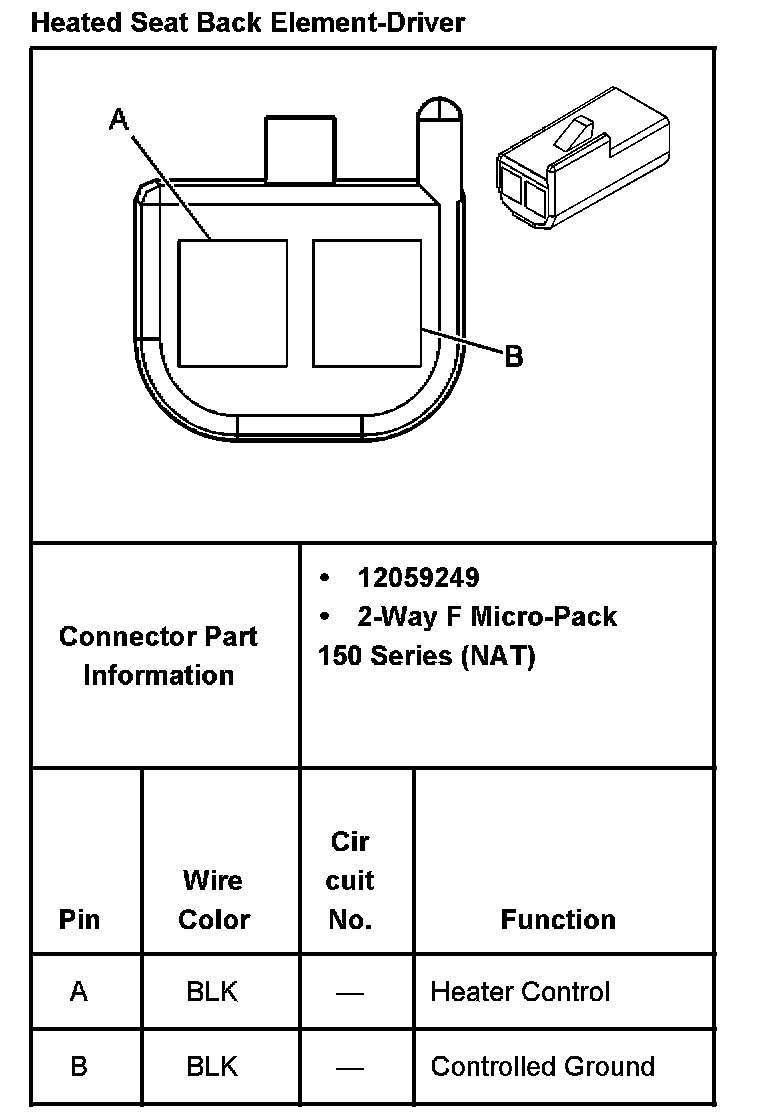

Heated Seat Back Element - Driver:

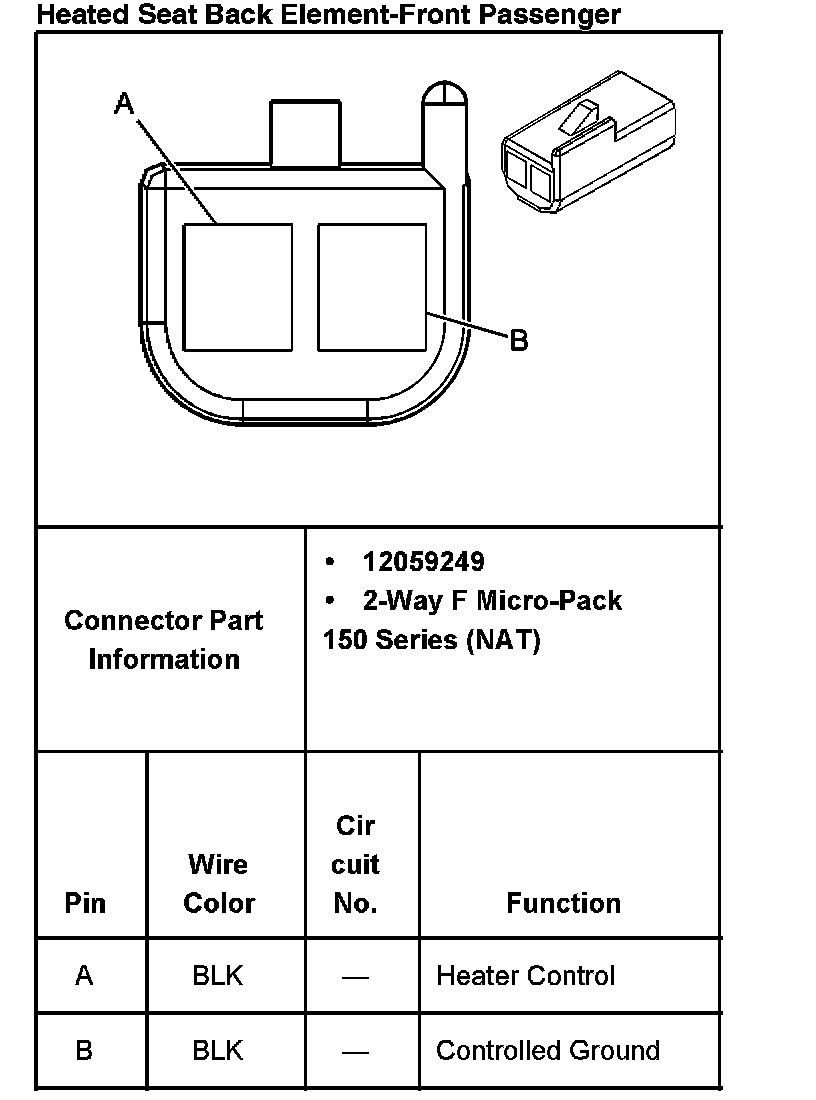

Heated Seat Back Element - Front Passenger:

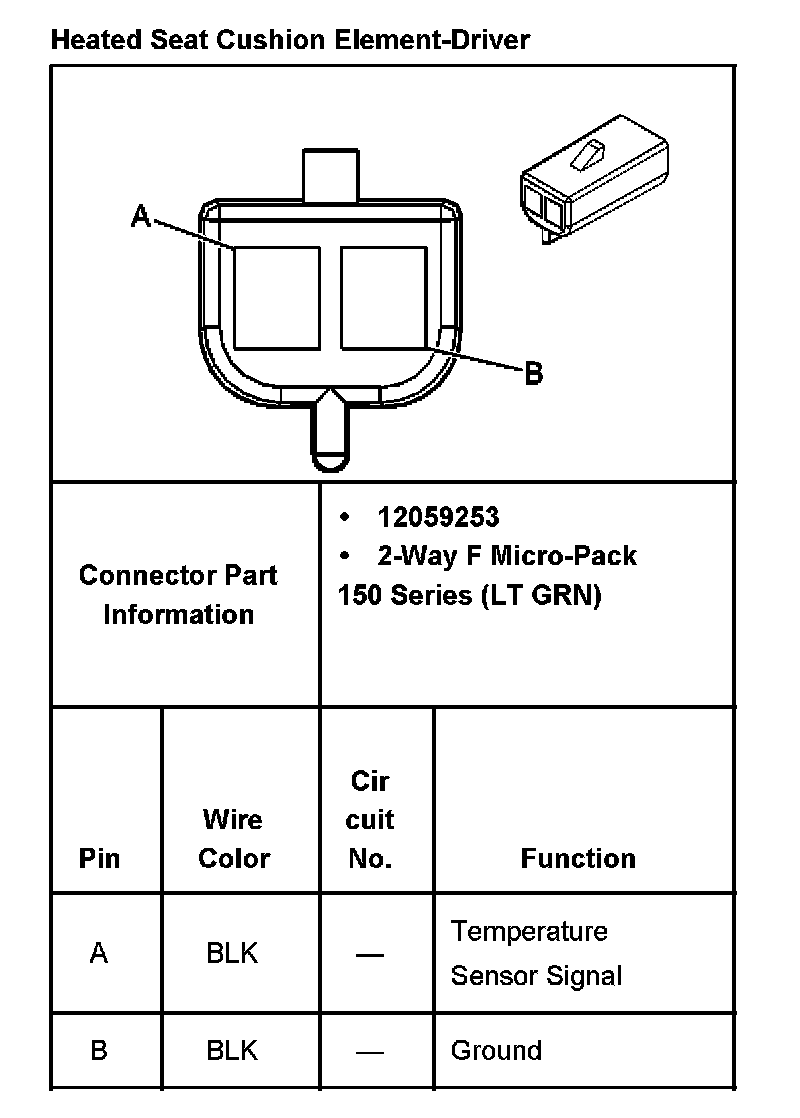

Heated Seat Cushion Element - Driver:

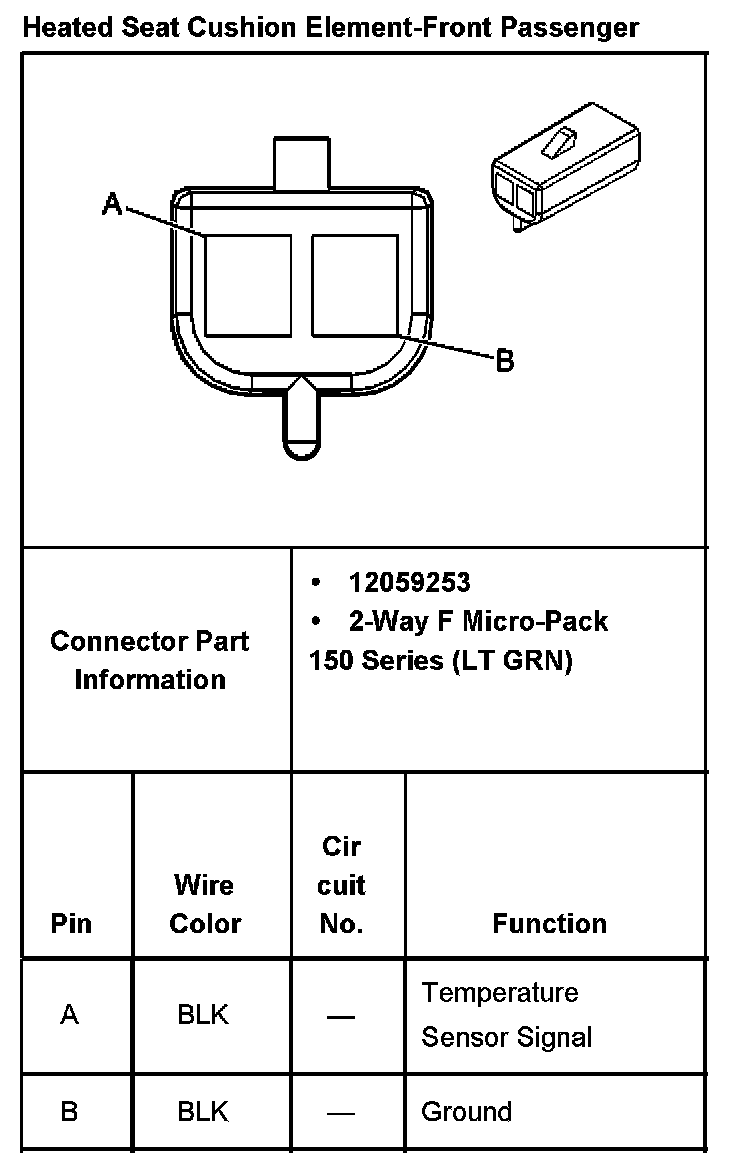

Heated Seat Cushion Element - Front Passenger:
