Seat Cushion Frame Replacement - Front

Seat Cushion Frame Replacement - Front

Removal Procedure

Caution: Refer toSIR Caution in Cautions and Notices.
1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 7 or SIR Disabling and Enabling Zone 9 in SIR.
2. Remove the seat cushion. Refer to Seat Cushion Replacement - Front (Seat Cushion Replacement - Front) .

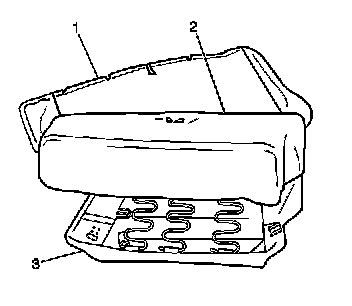

3. Remove the seat cushion cover (1) and pad (2) from the seat cushion frame (3). Refer to Seat Back Cover and Pad Replacement - Front (Seat Back Cover and Pad Replacement - Front) .



Installation Procedure





1. Install the seat cushion cover (1) and pad (2) onto the seat cushion frame (3). Refer to Seat Back Cover and Pad Replacement - Front (Seat Back Cover and Pad Replacement - Front) .
2. Install the seat cushion. Refer to Seat Cushion Replacement - Front (Seat Cushion Replacement - Front) .
3. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 7 or SIR Disabling and Enabling Zone 9 in SIR.
