Seat Cushion Cover and Pad Replacement - Rear

Seat Cushion Cover and Pad Replacement - Rear

Removal Procedure

1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear (Seat Cushion Replacement - Rear) .




2. Remove the screws from the J channels and disengage the seat cushion cover J channels from the seat cushion frame.

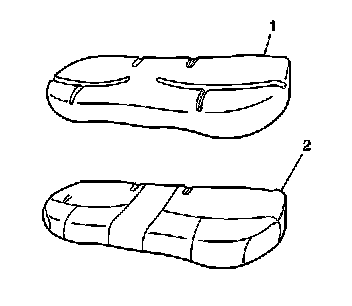

3. Remove the seat cushion cover (2) from the seat cushion foam pad (1).



Installation Procedure





1. Position the seat cushion cover (2) over the foam pad (1).
2. Work the cover over the foam cushion and engage the cover J channels to the seat cushion frame.
3. Install the screws to retain the J channels.
4. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear (Seat Cushion Replacement - Rear) .
