Electrical Diagrams

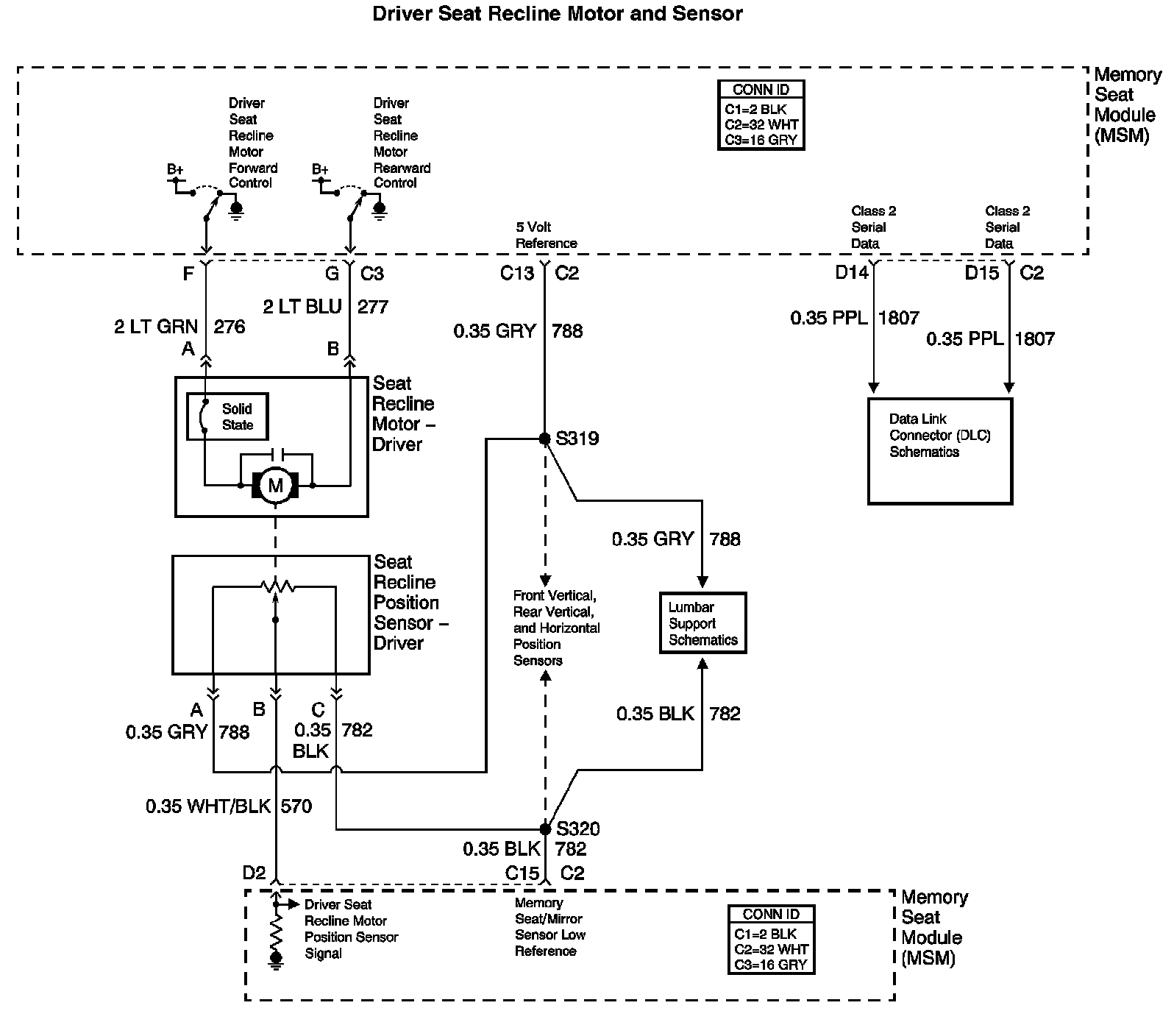

Memory Seats Diagram 1:

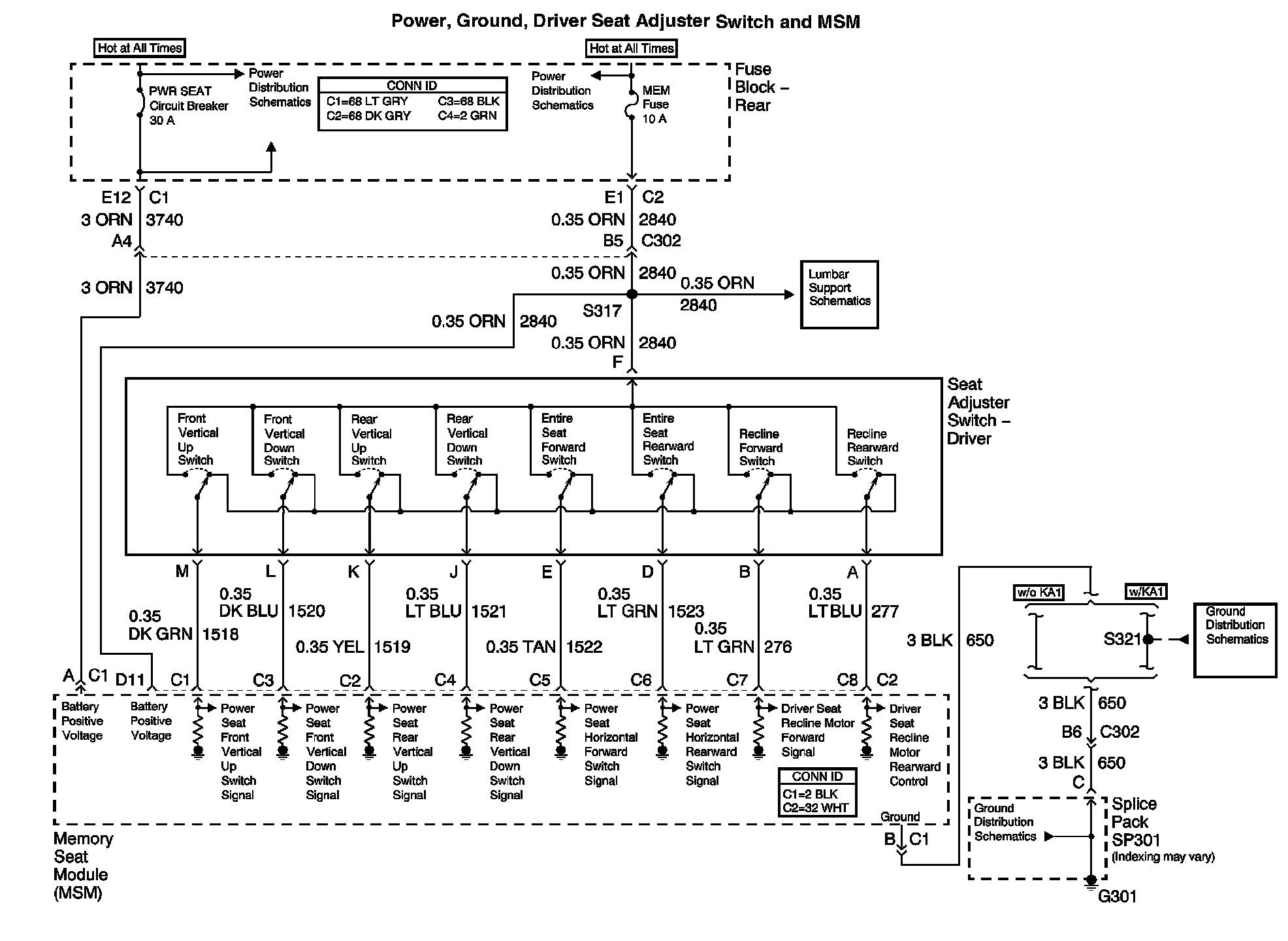

Memory Seats Diagram 2:

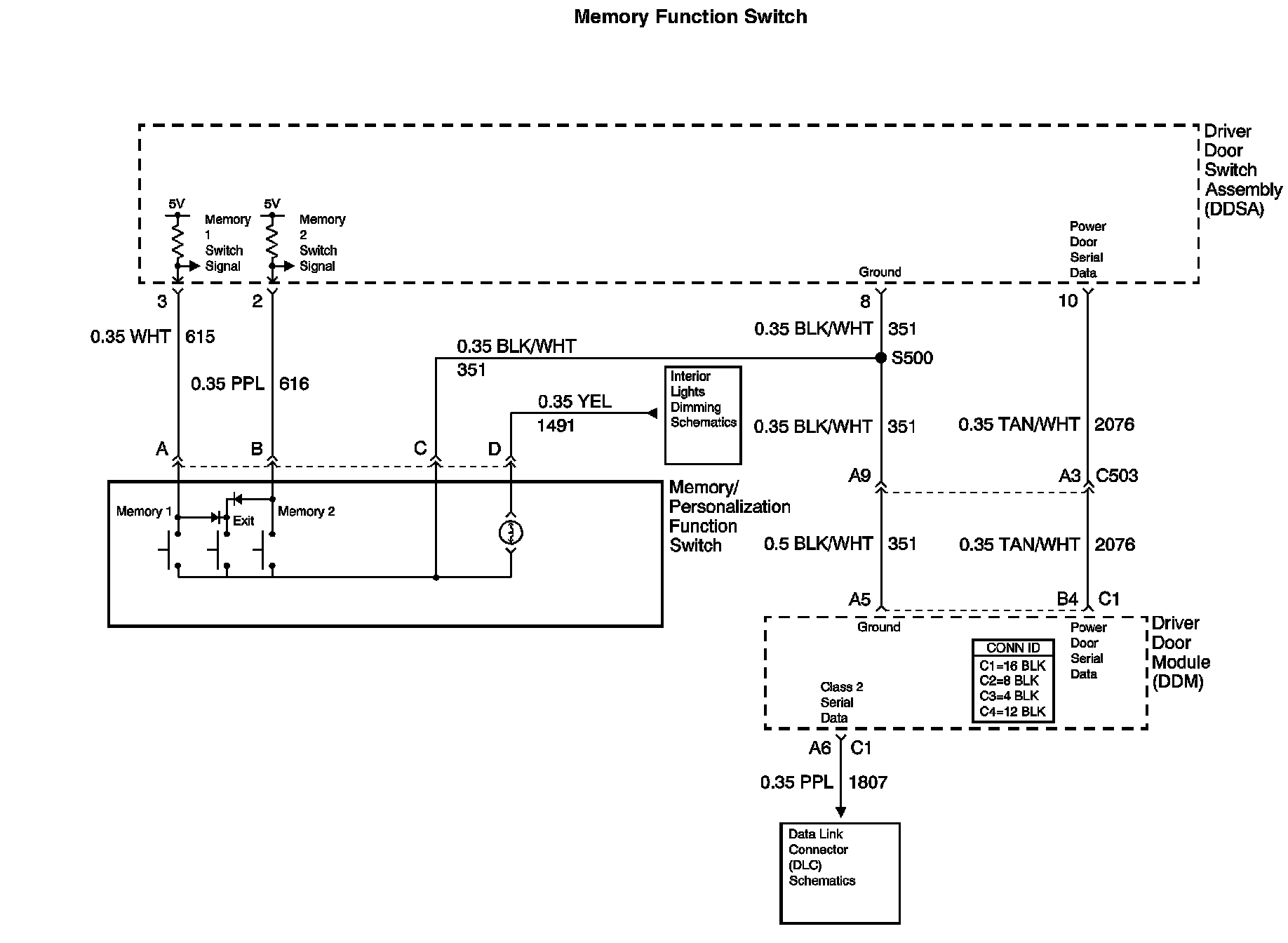

Memory Seats Diagram 3:

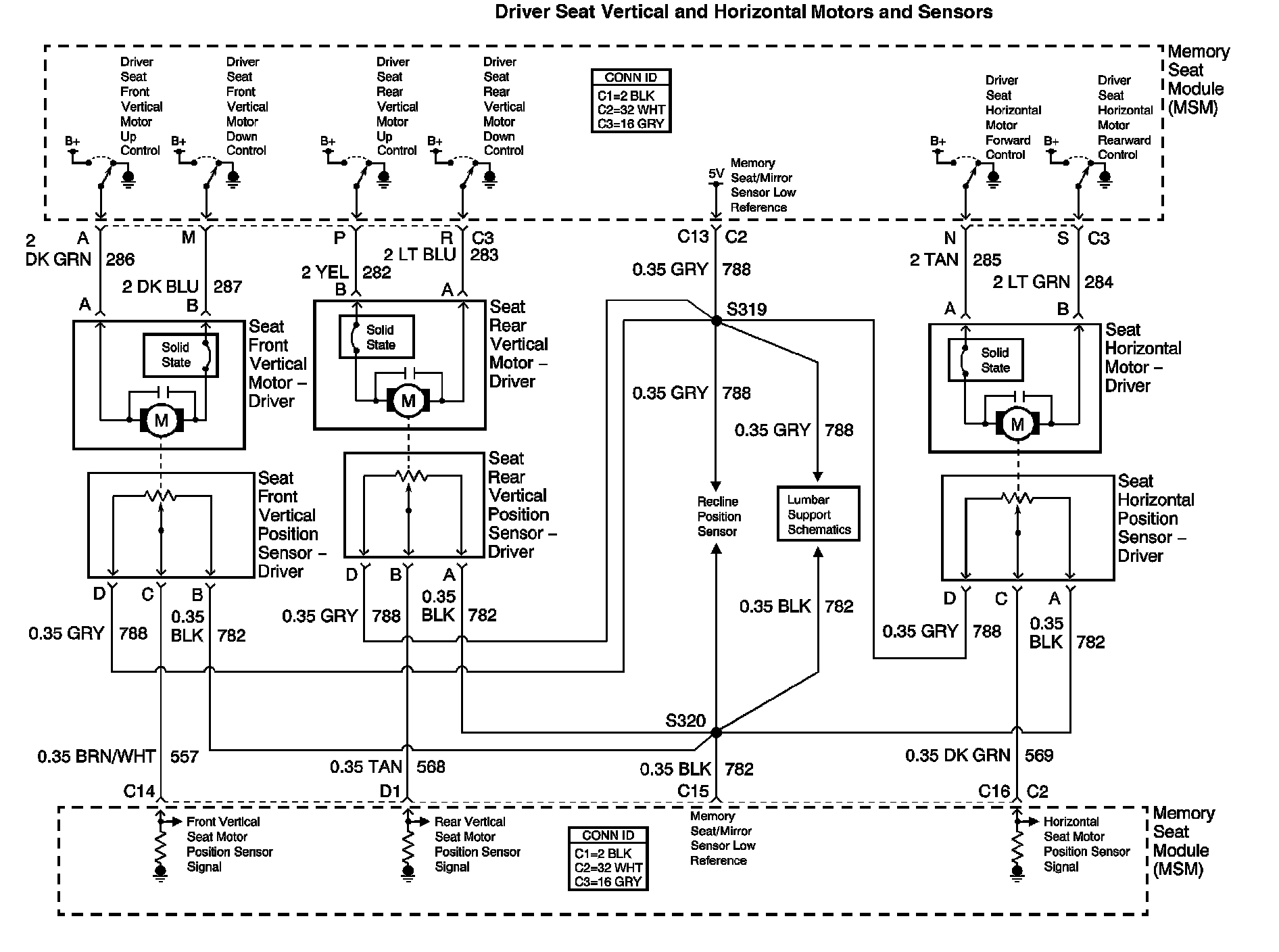

Memory Seats Diagram 4:
