Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Lumbar Support Diagrams

Lumbar Support Diagrams

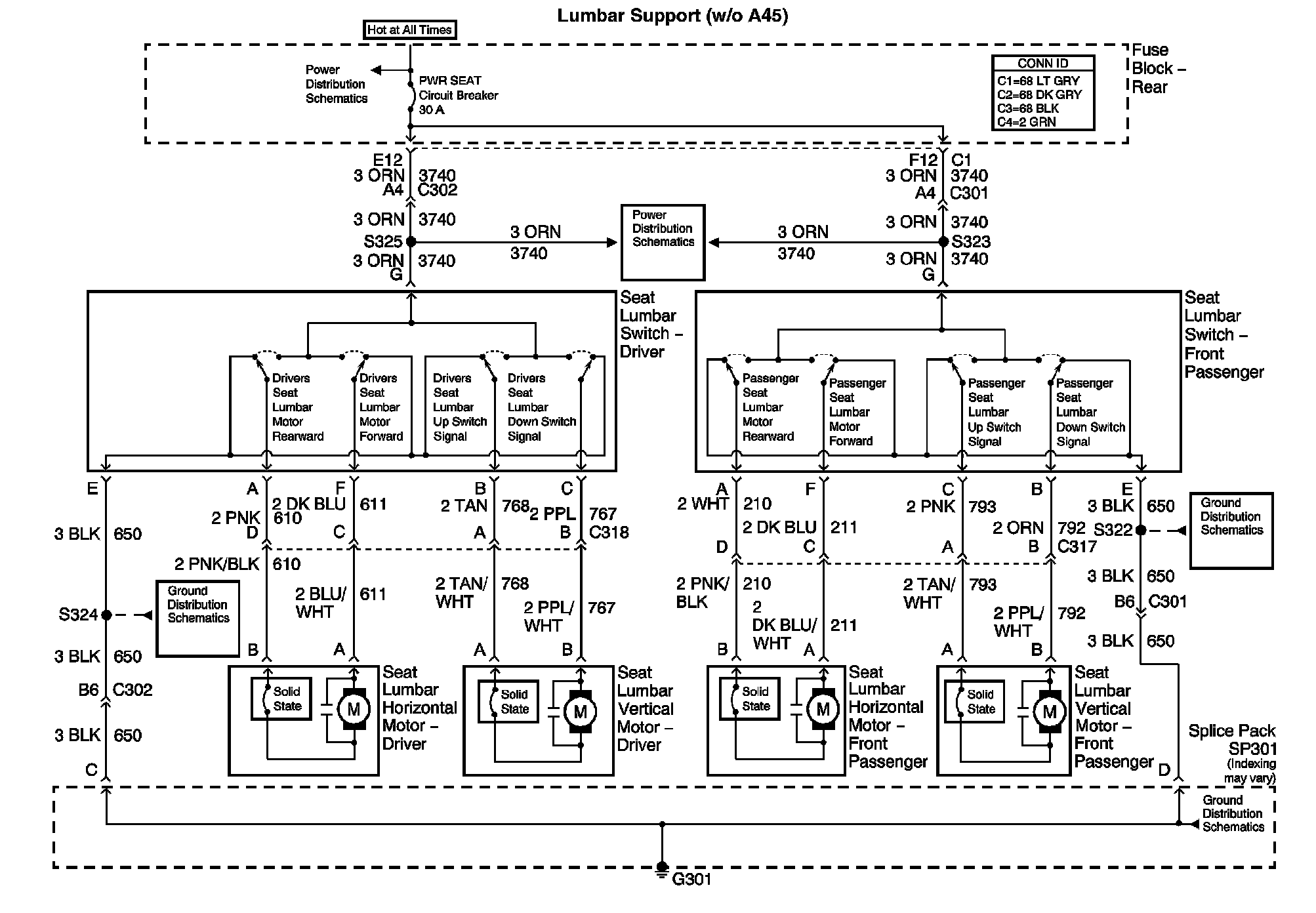

Lumbar Support Diagram 1:

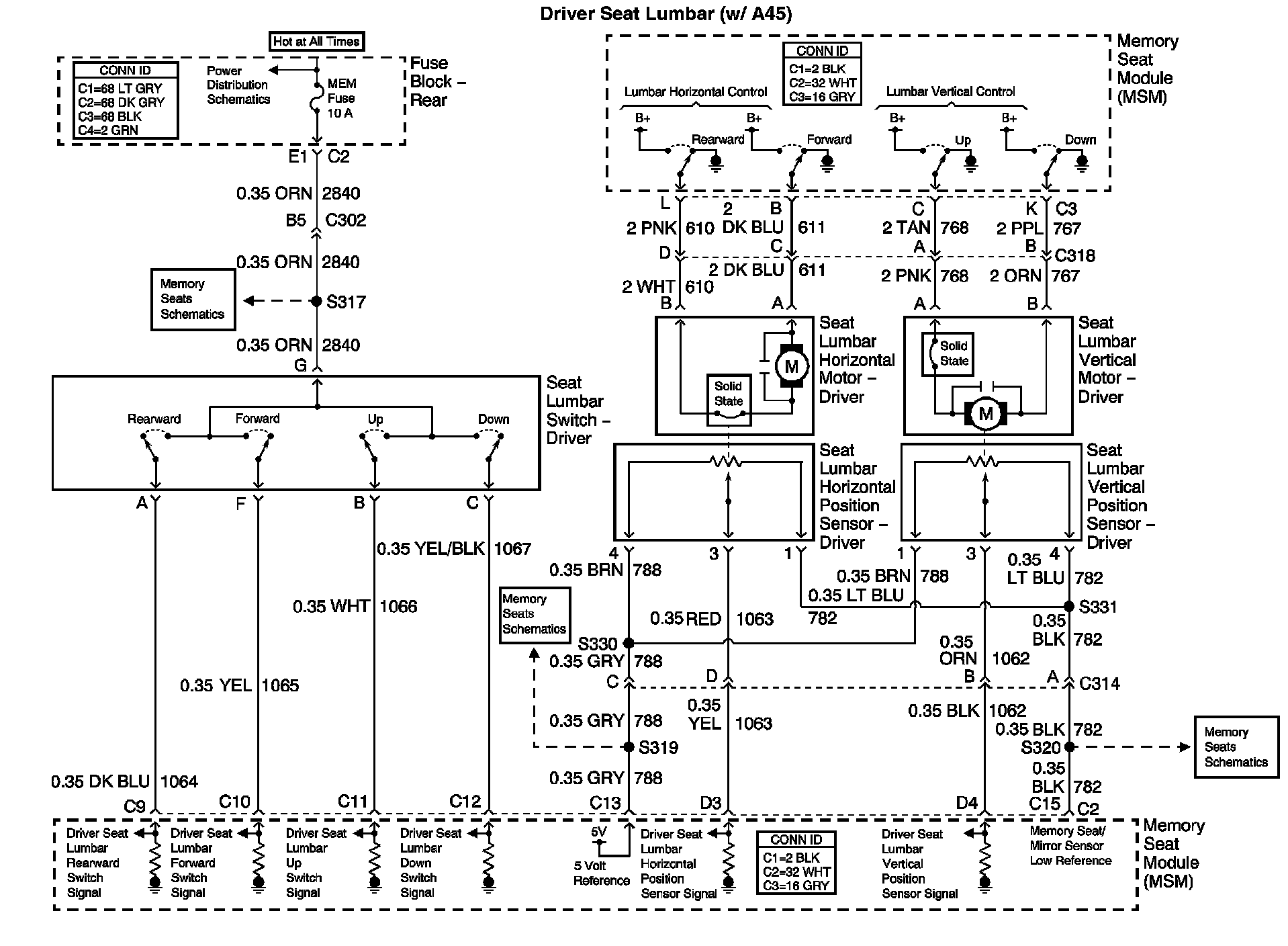

Lumbar Support Diagram 2:
