Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Power Sunroof Inoperative

Power Sunroof Inoperative

POWER SUNROOF INOPERATIVE

Steps 1-6:

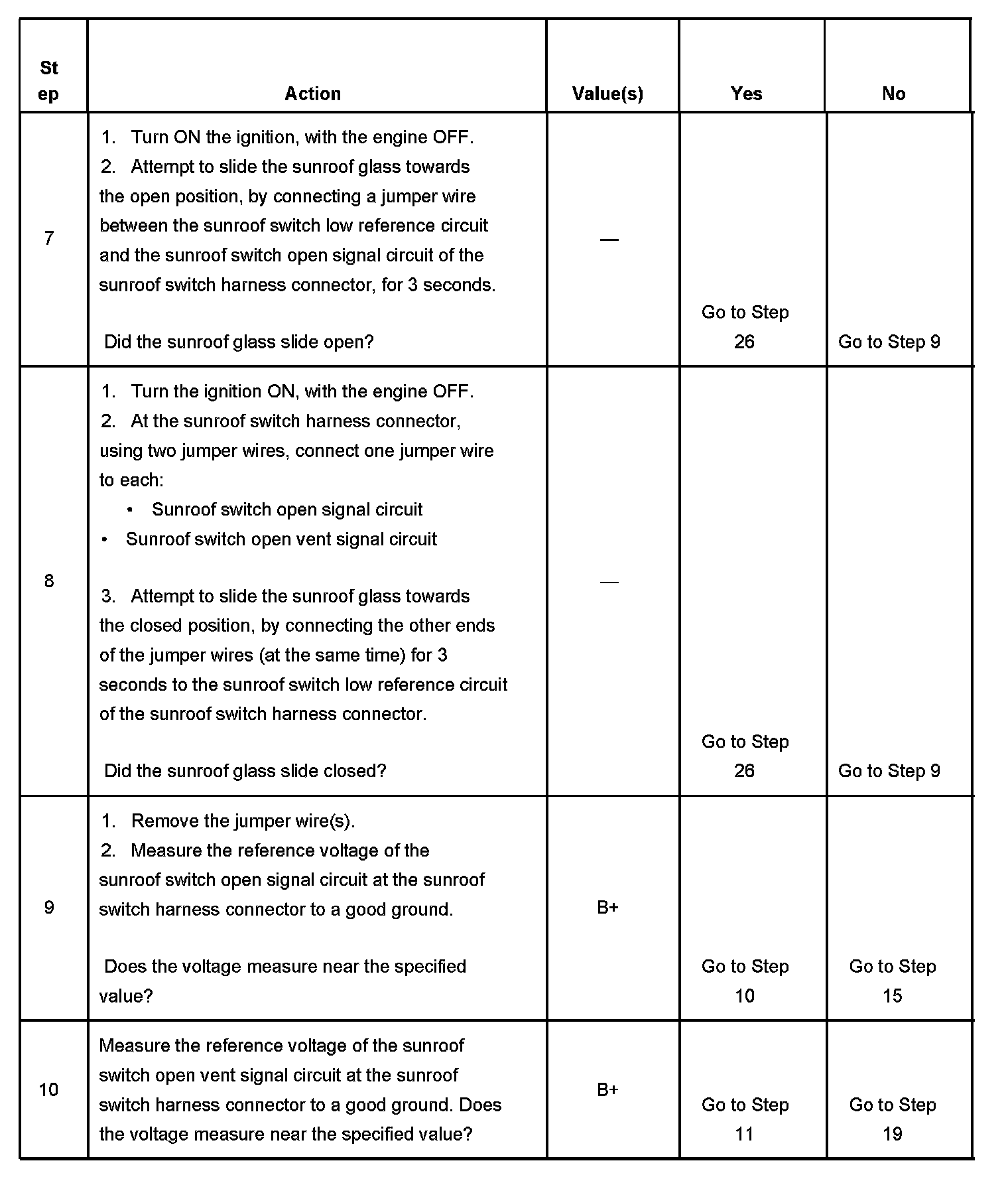

Steps 7-10:

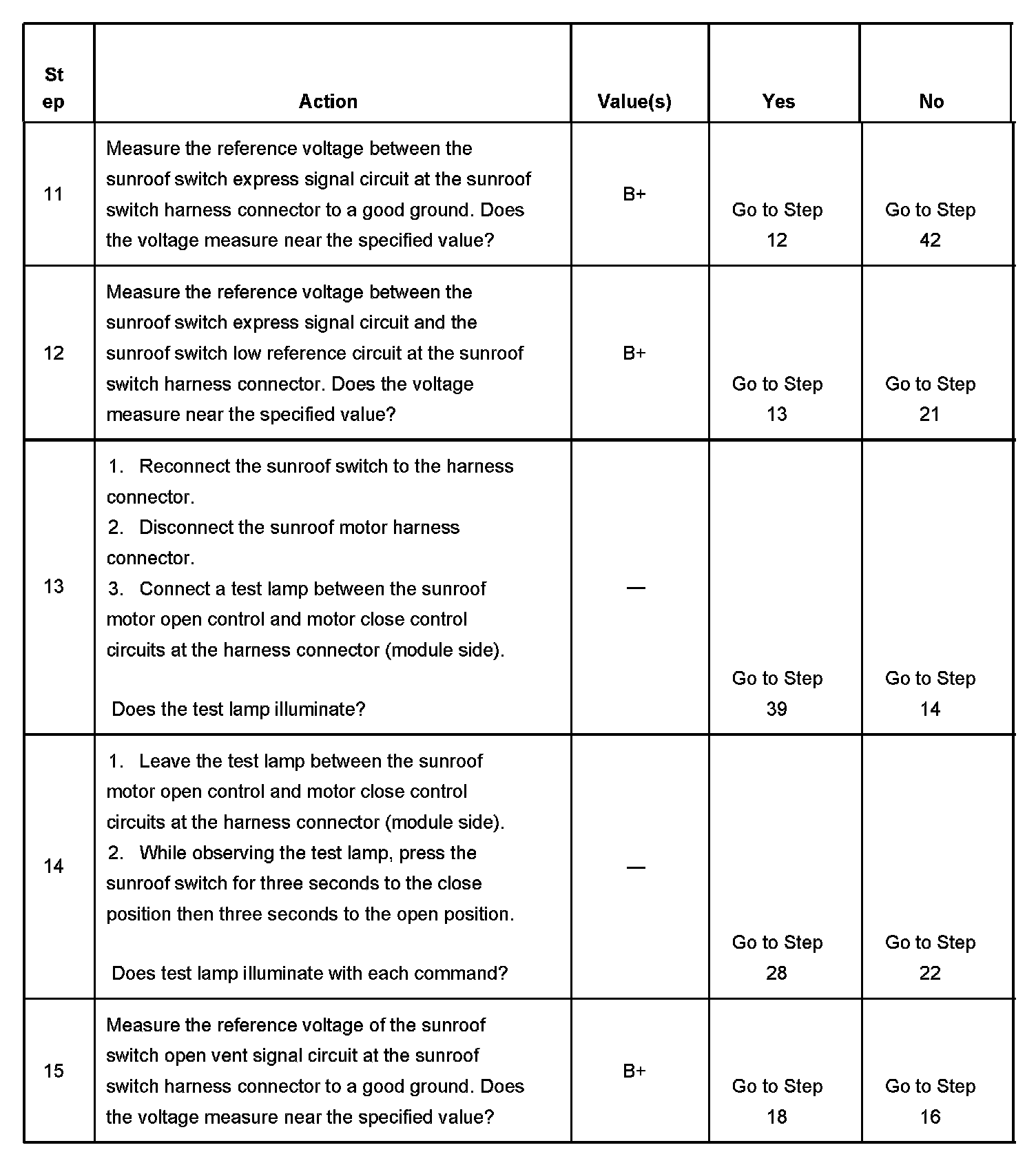

Steps 11-15:

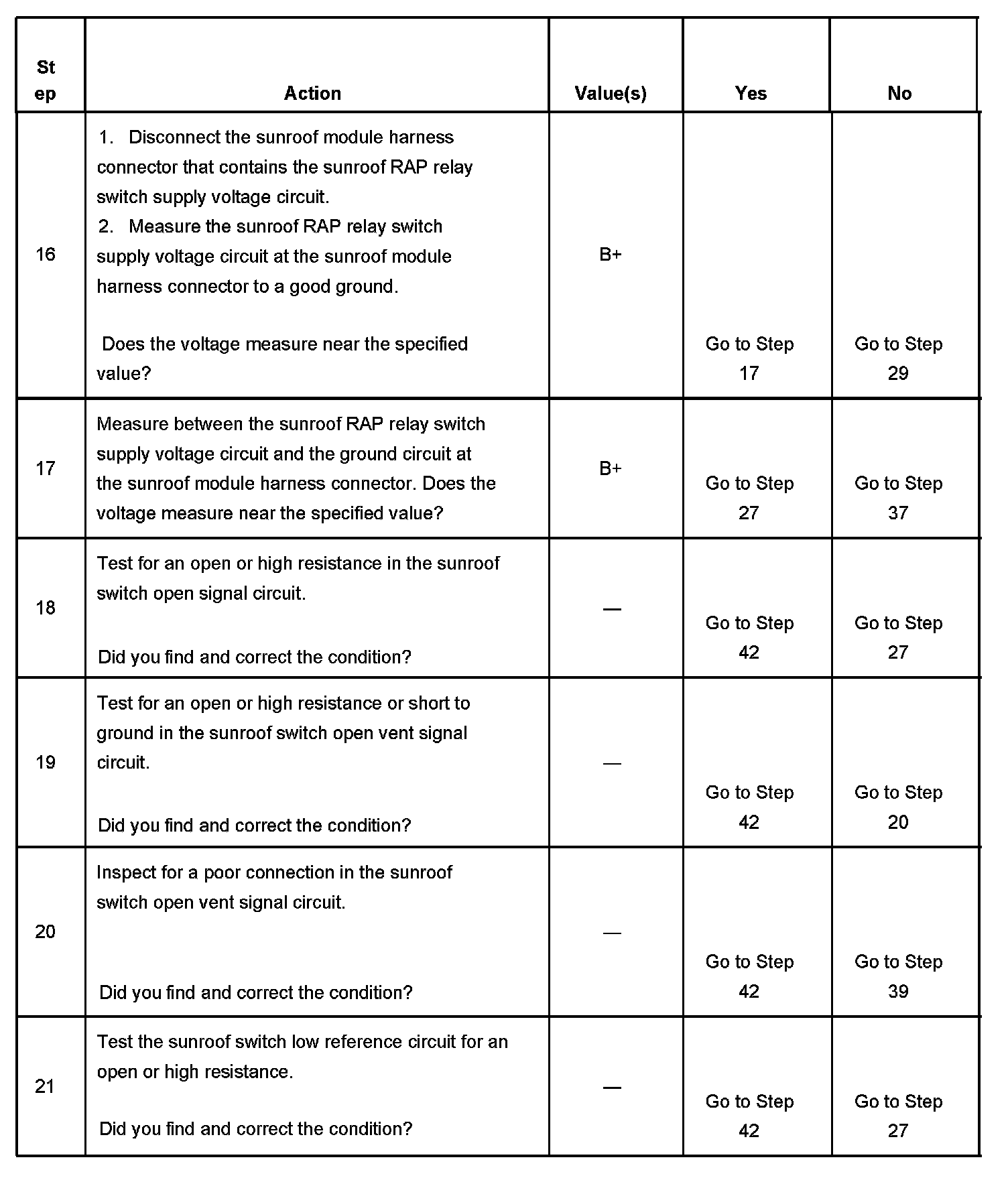

Steps 16-21:

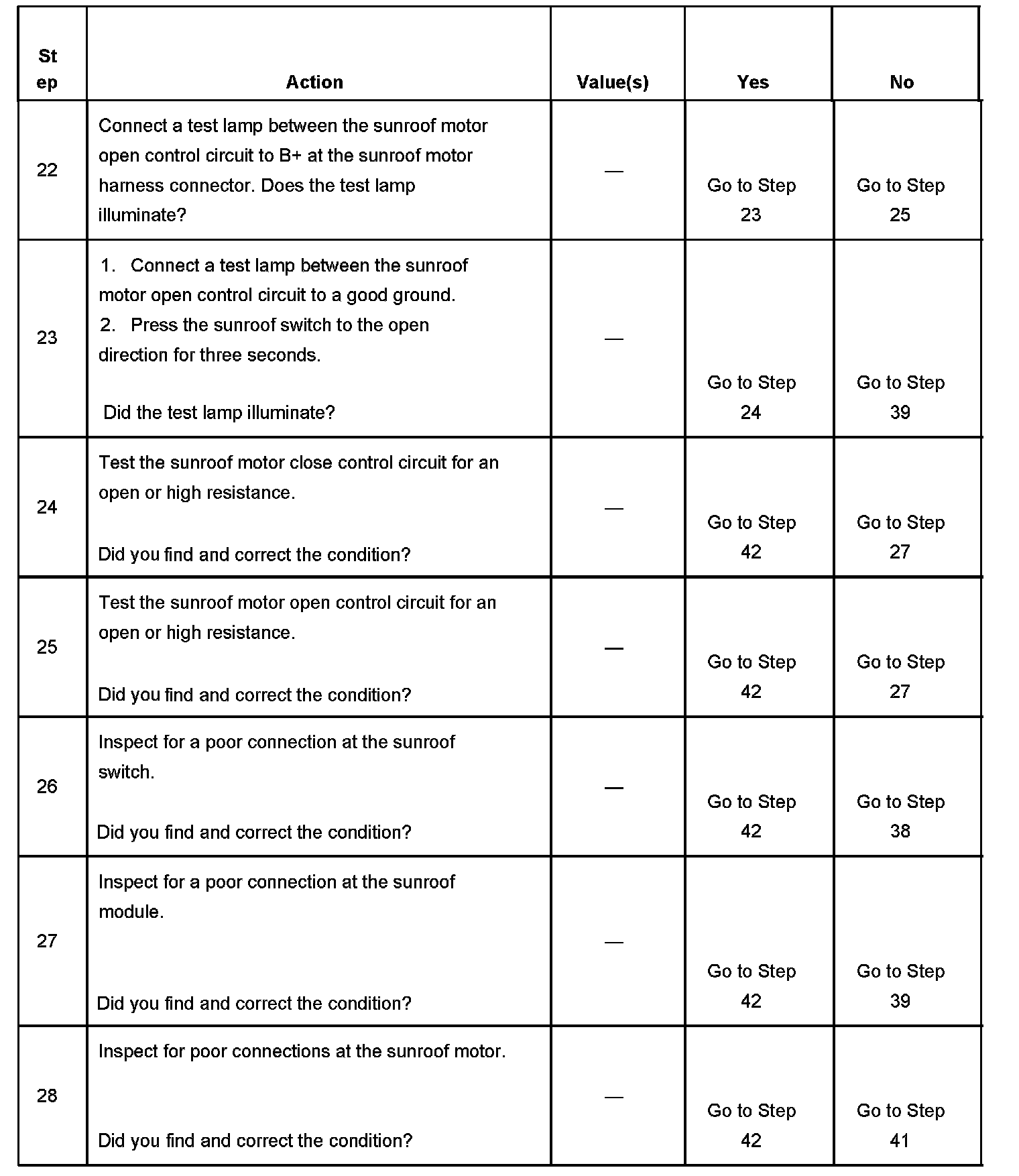

Steps 22-28:




Steps 29-32:




Steps 33-39:

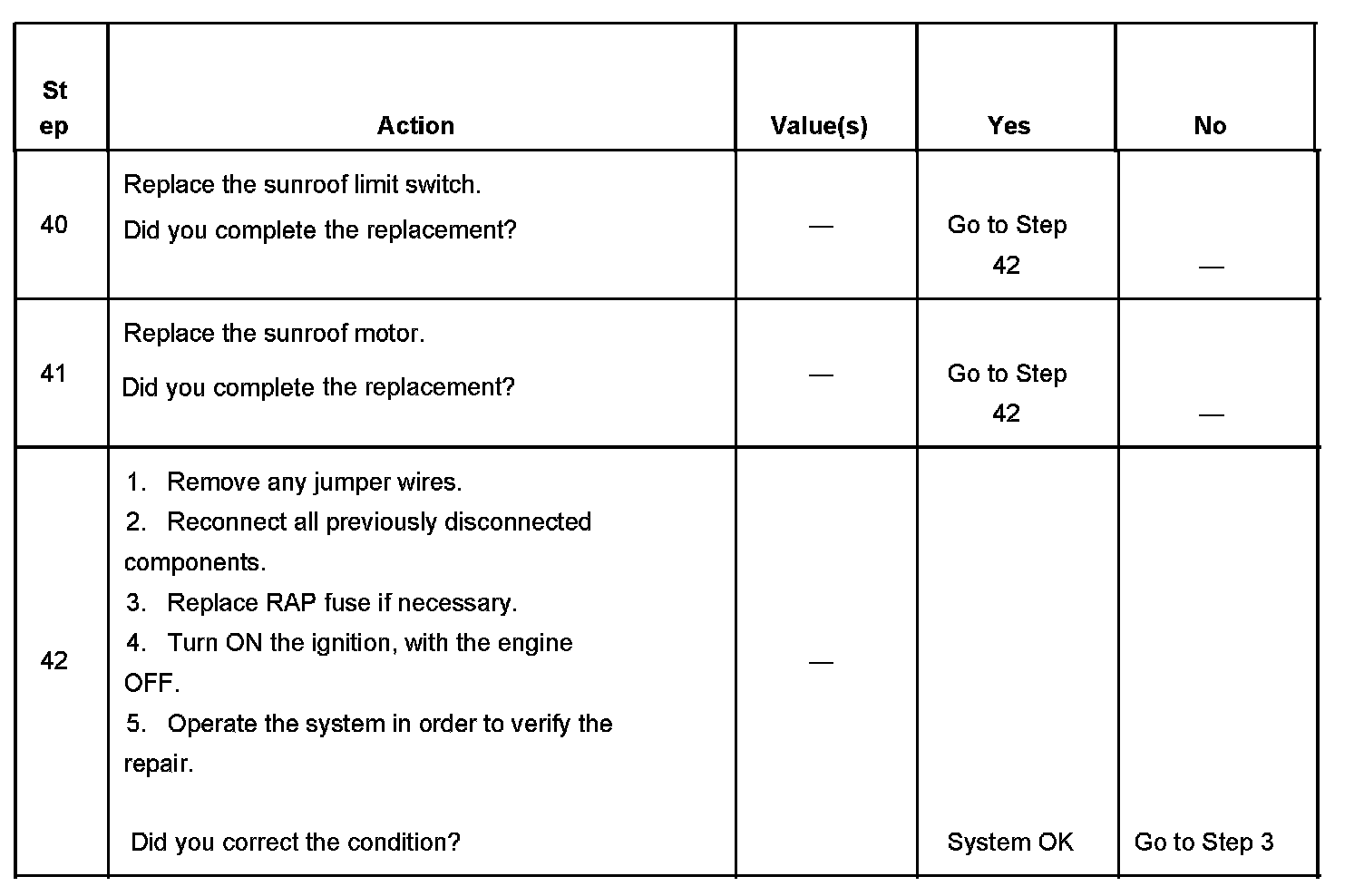

Steps 40-42:
