Sunroof / Moonroof Wiring Harness: Service and Repair
SUNROOF WIRING HARNESS REPLACEMENTREMOVAL PROCEDURE
1. Remove the headliner.
2. Remove the sunroof control module.

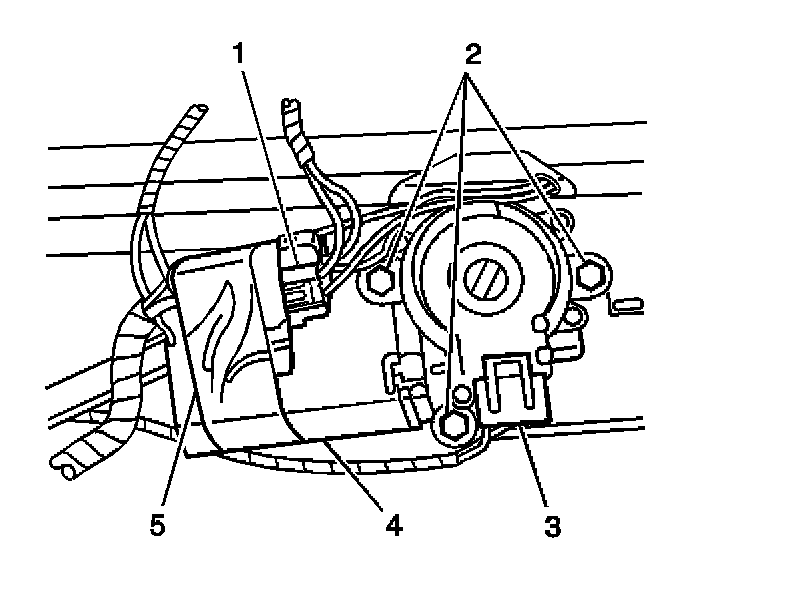

3. Remove the tape (5) securing the electrical harness to the sunroof actuator motor (4).
4. Disconnect the electrical connectors (1,3) at the sunroof actuator motor.
5. Cut the tie straps securing the electrical harness to the drive cable tube.
6. Disconnect the electrical harness from the rear sunroof drain hose retainers.
NOTE: Refer to Electrical Wiring Routing Notice in Service Precautions.
7. Disconnect the electrical connector at the main body electrical harness at the rear edge of the rear shelf panel.
8. Remove the electrical harness from the vehicle.
INSTALLATION PROCEDURE
1. Connect the electrical connectors to the main body electrical harness at the rear shelf panel.
2. Secure the electrical harness to the clips on the rear drain hose.
3. Connect the electrical connectors (1,3) to the sunroof actuator motor (4).
4. Secure the harness to the sunroof motor/actuator with new electrical tape (5).

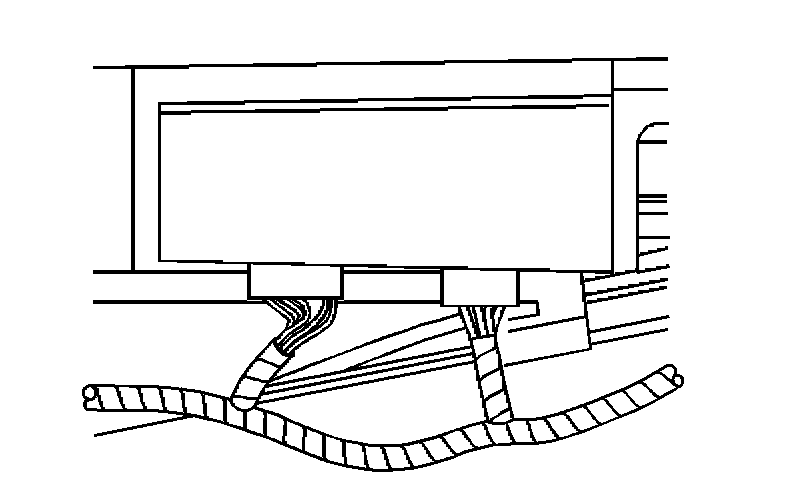

5. Connect the electrical connectors to the sunroof control module.
6. Install the control module to the sunroof module assembly.
7. Ensure the locking tabs are secure.
8. Secure the electrical harness to the drive cable tube with 2 new tie straps.
9. Verify the operation of the sunroof.
10. Install the headliner.
