Sunroof / Moonroof Module: Service and Repair

SUNROOF CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE

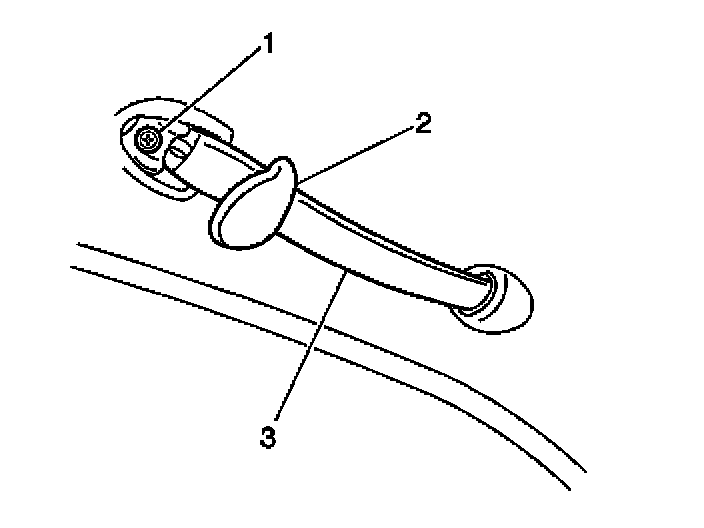

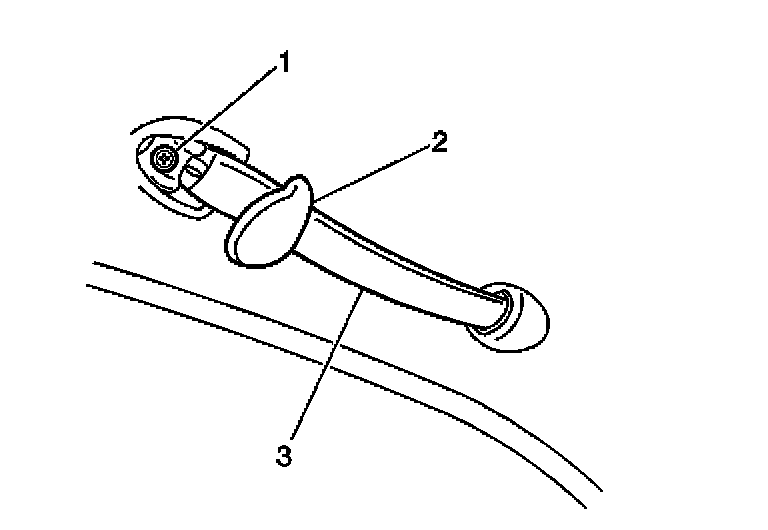

1. Remove the passenger side rear assist handle (3).

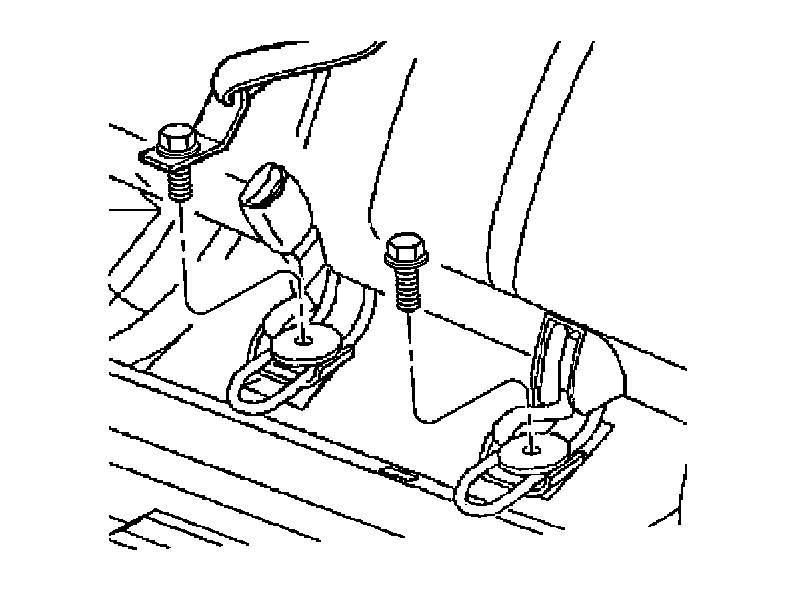

2. Remove the rear seat cushion.

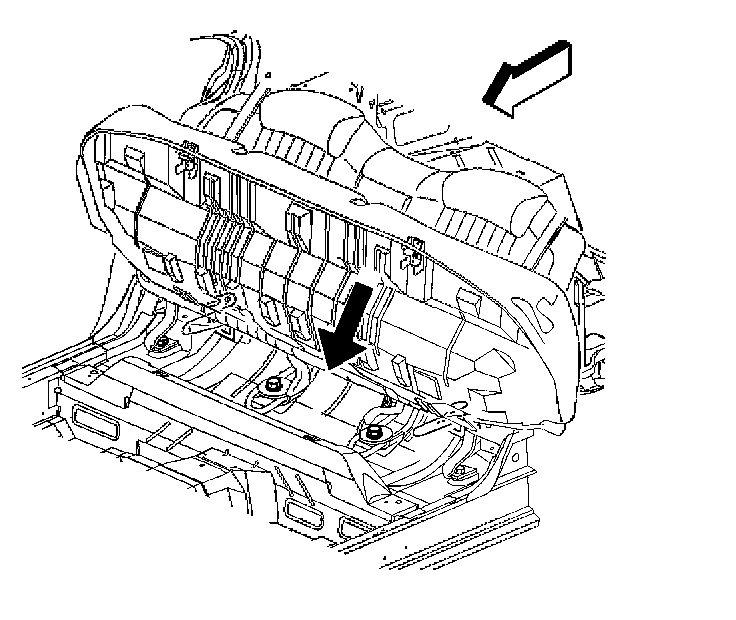

3. Remove the rear seat back.

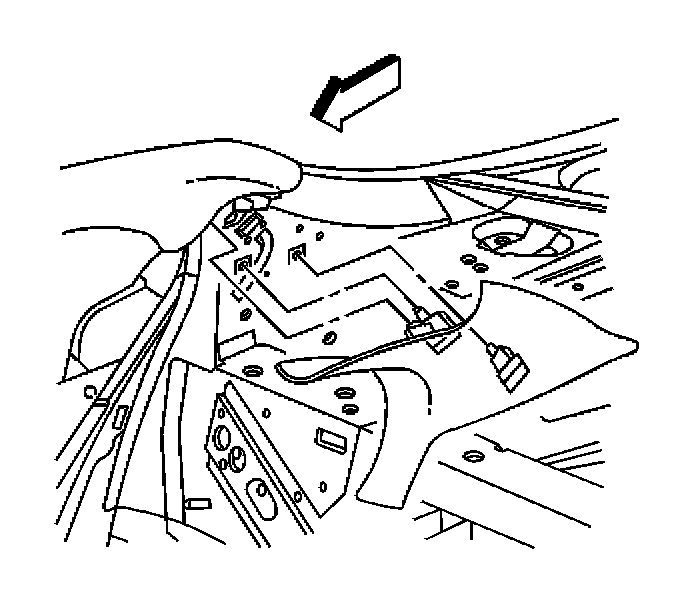

4. Remove the passenger side rear sail panel.




5. Carefully pull the upper center trim panel inward in order to allow clearance for the headliner.

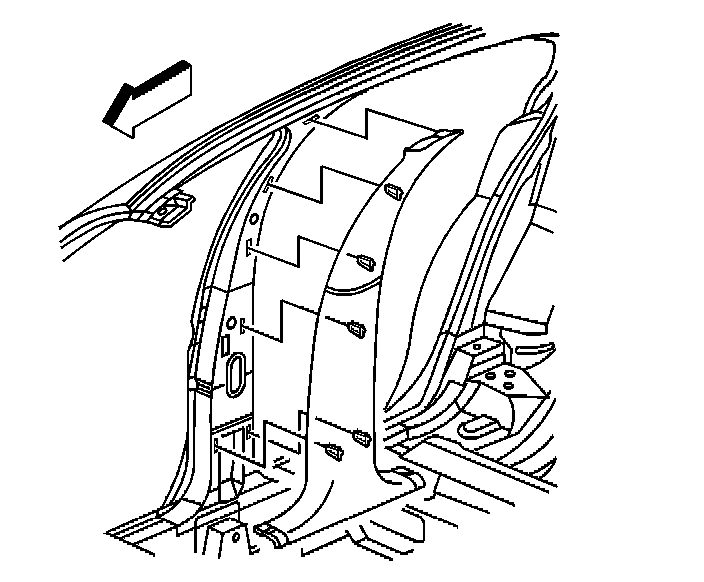

IMPORTANT: Release the passenger side center pillar trim garnish molding upper retainer.

6. Carefully pull the passenger side of the headliner downward in order to release the center and rearward headliner roof magnets.

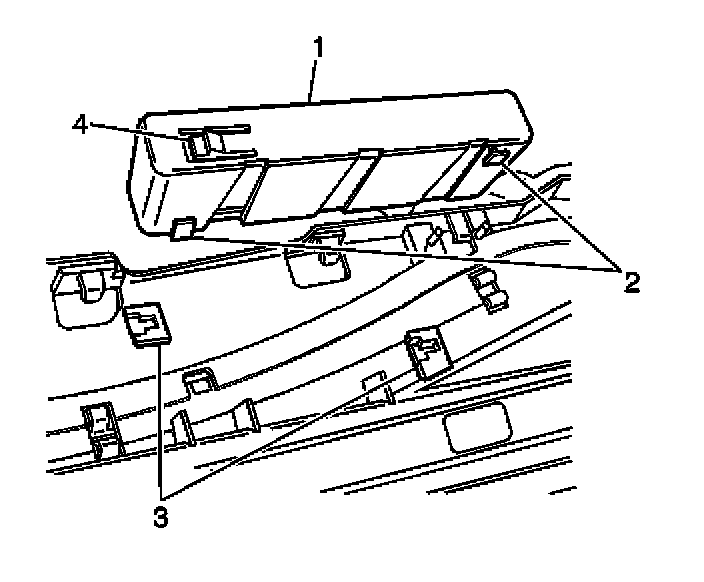

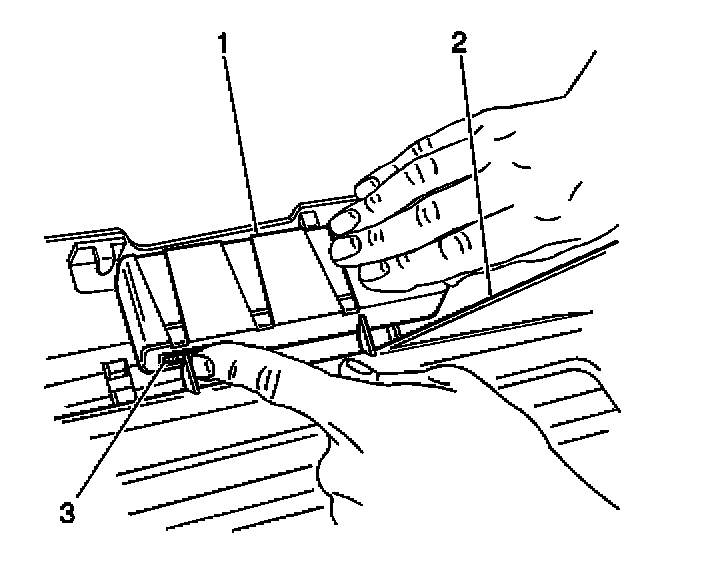

7. Reach inward between the headliner and roof panel in order to release the sunroof control module clip (3) securing the control module (1) to the sunroof module assembly (2).
8. With the clip (3) depressed, slide the control module toward the sunroof motor/actuator.

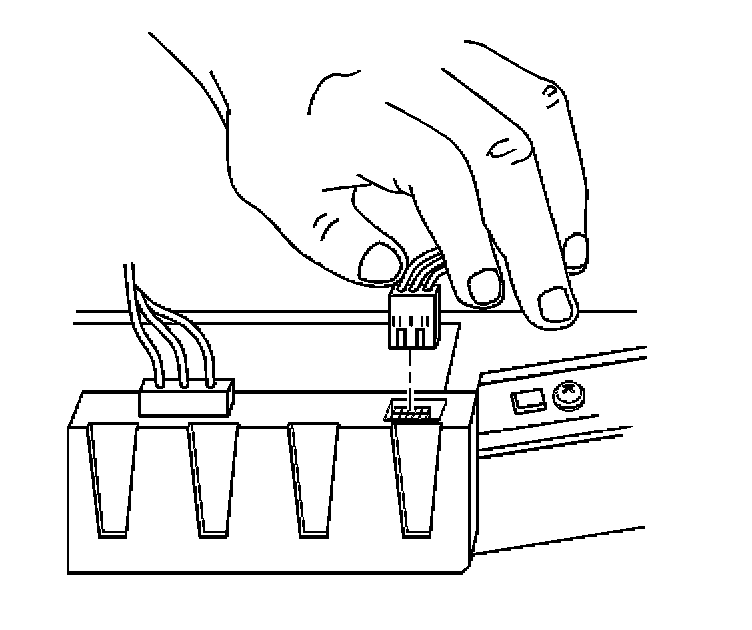

9. Disconnect the electrical connectors.
10. Remove the sunroof control module from the vehicle.

INSTALLATION PROCEDURE

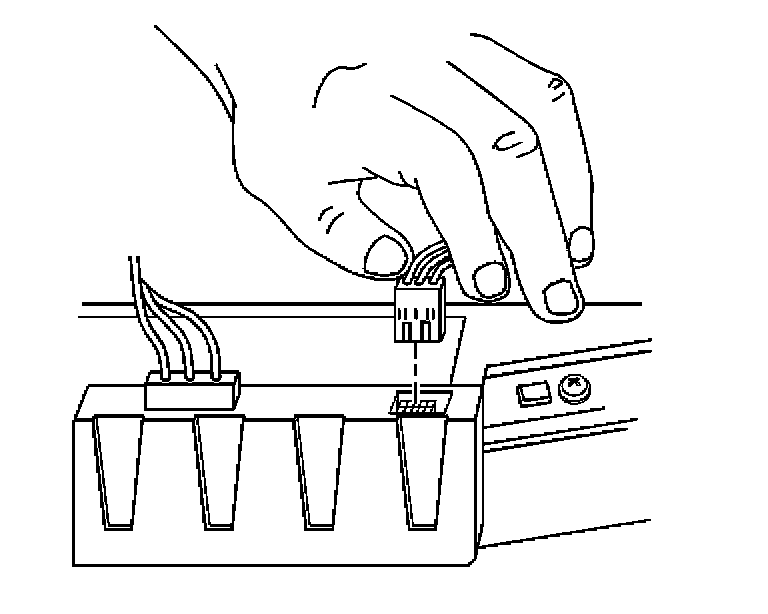

1. Connect the electrical connectors to the sunroof control module.




2. Install the sunroof control module tabs (2) into the sunroof module assembly slots (3) located on the sunroof module.
3. Slide the sunroof control module (1) away from the sunroof motor/actuator until the sunroof control module is fully engaged to the sunroof module assembly.
4. Reposition the headliner to the center and rearward roof magnets.

IMPORTANT: Test the proper operation of the sunroof functions before installing the interior trim components.




5. Install the passenger side sail panel.

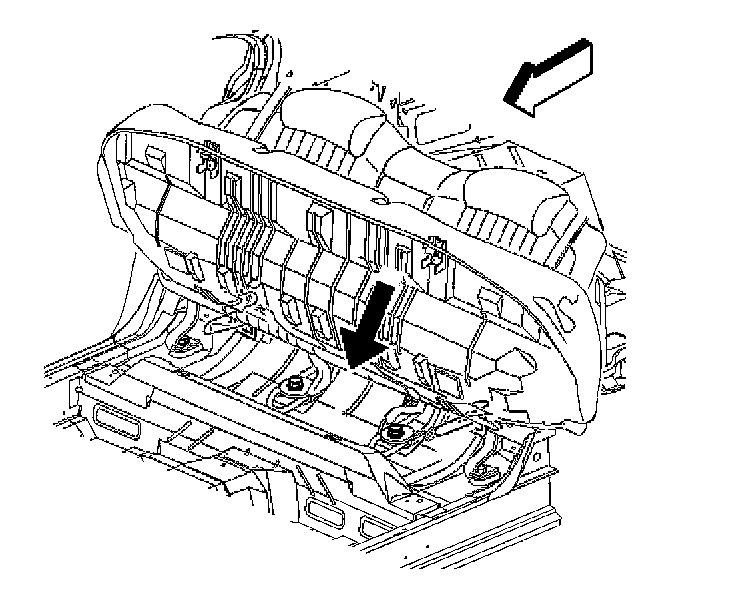

6. Install the rear seat back.




7. Install the rear seat cushion.

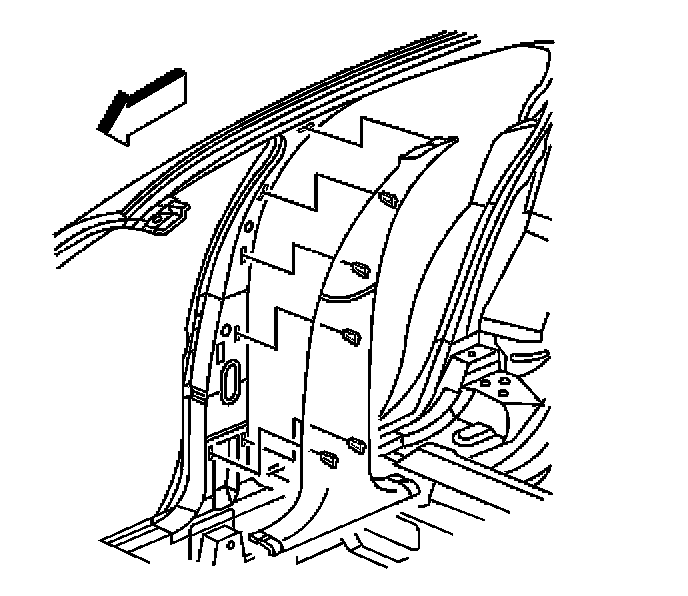

8. Align the upper center trim panel retainer, push inward in order to secure.
9. Reposition the passenger rear door opening weatherstrip.




10. Install the passenger side rear assist handle (3).
11. Close the passenger rear door.
