Power Seat Control Module: Diagrams

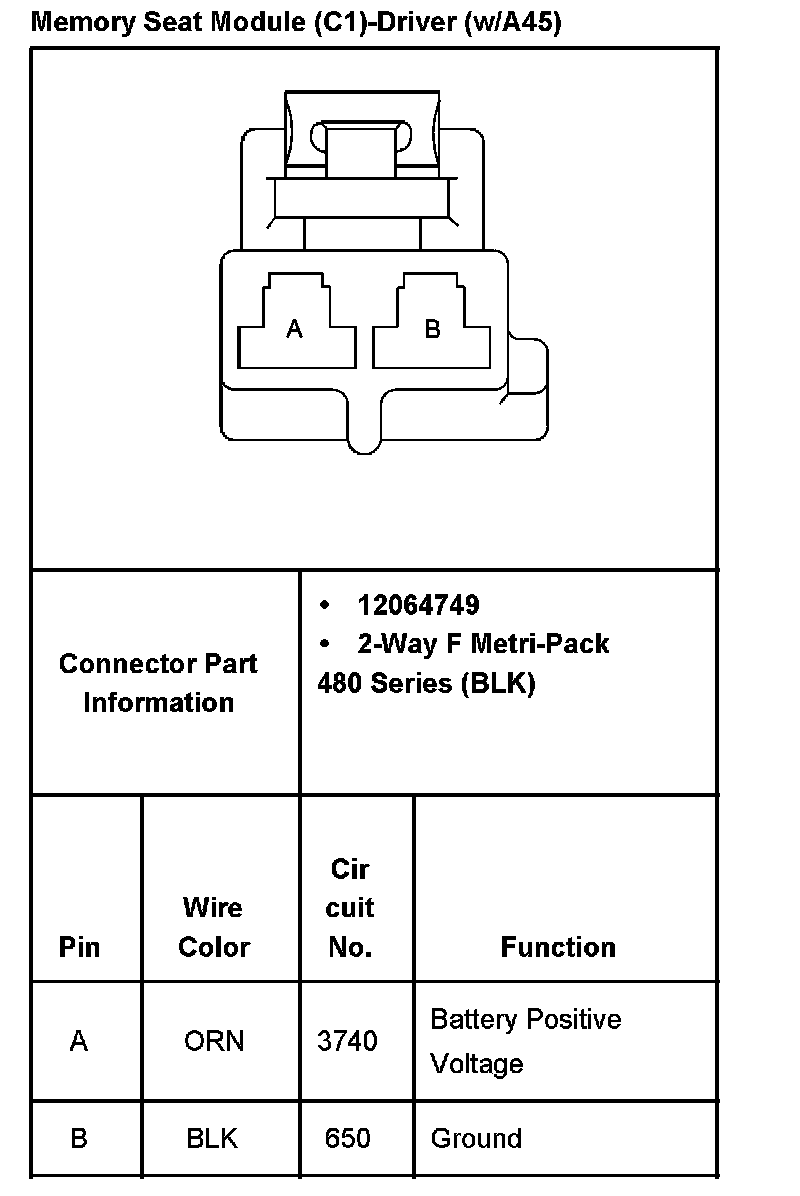

Memory Seat Module (C1) - Driver:

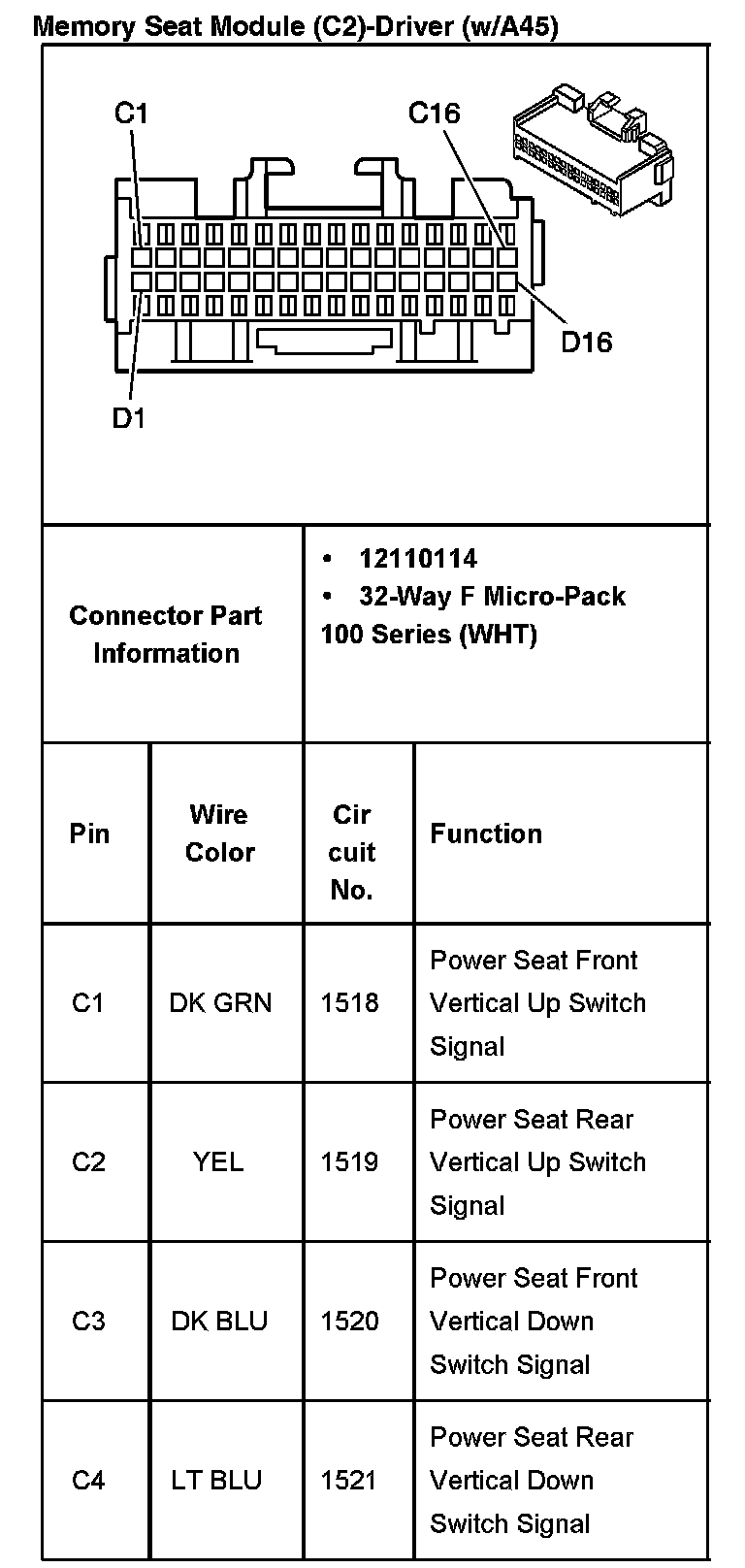

Memory Seat Module (C2) - Driver Part 1:

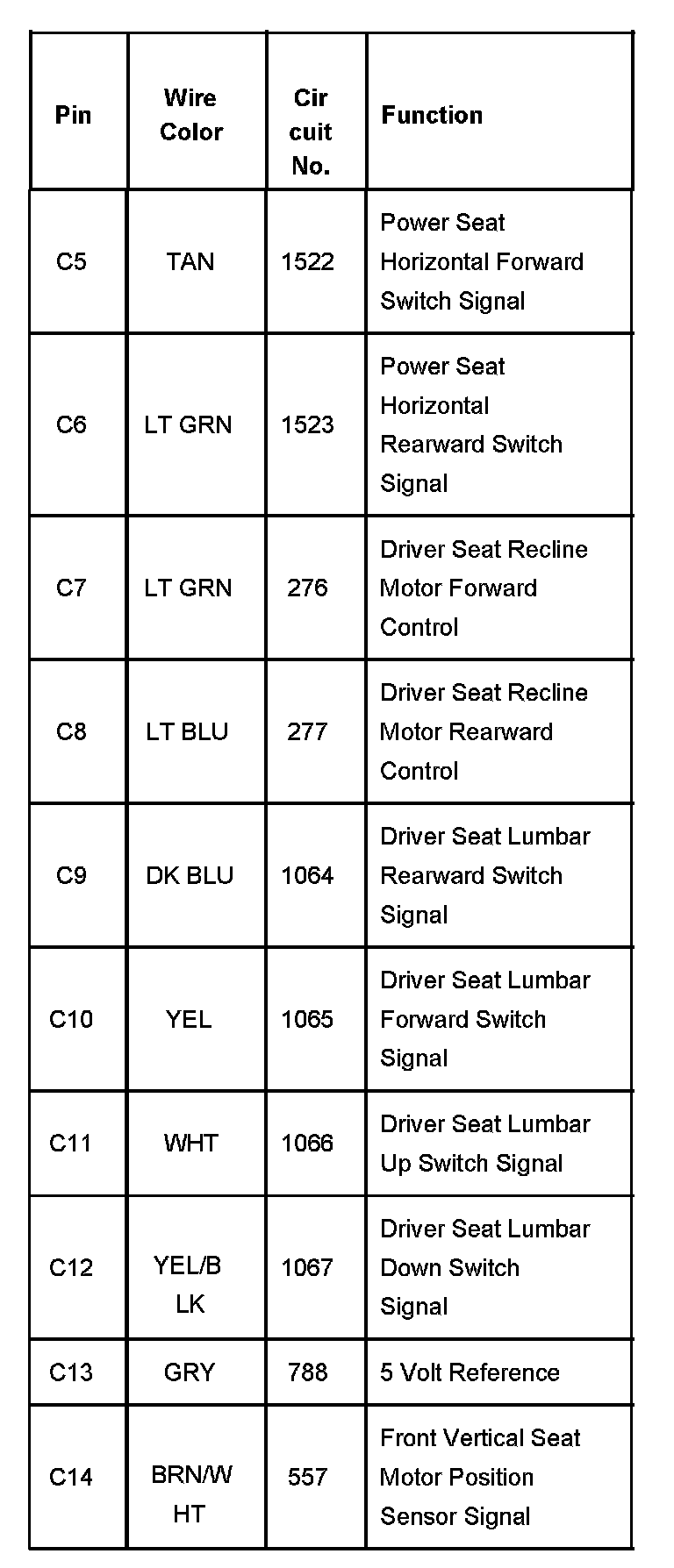

Memory Seat Module (C2) - Driver Part 2:

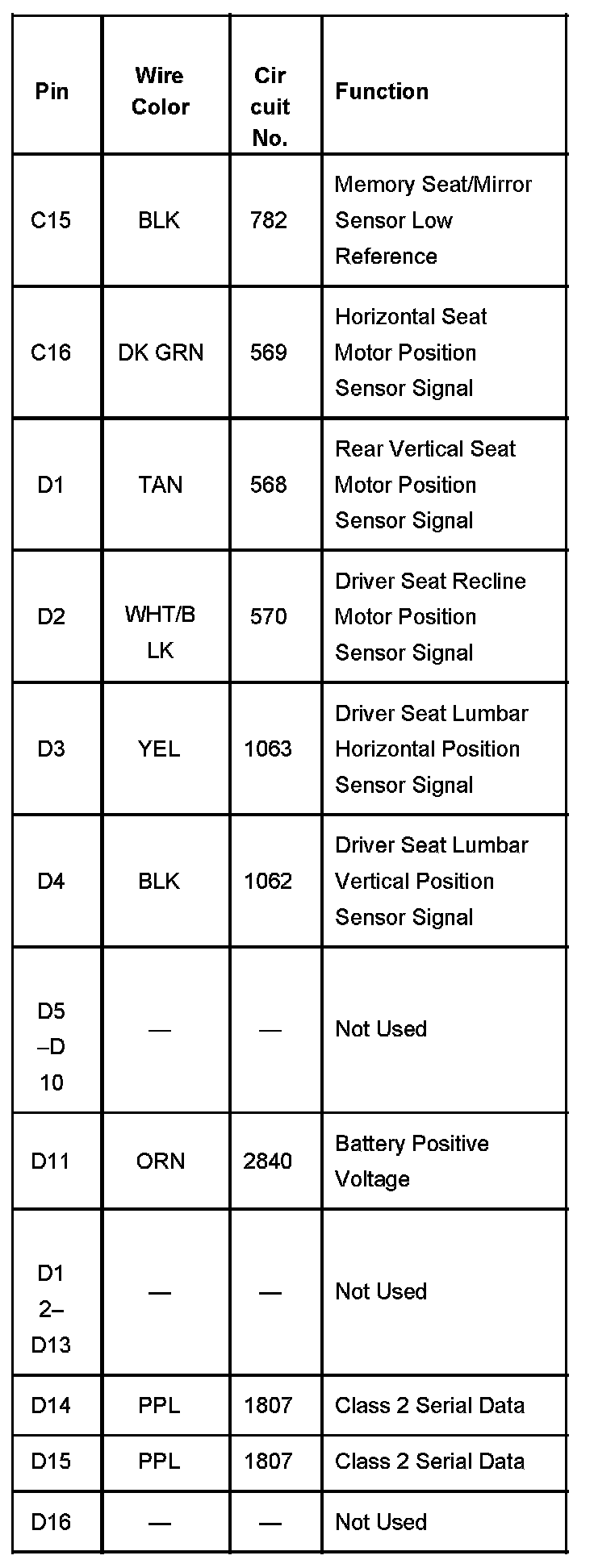

Memory Seat Module (C2) - Driver Part 3:

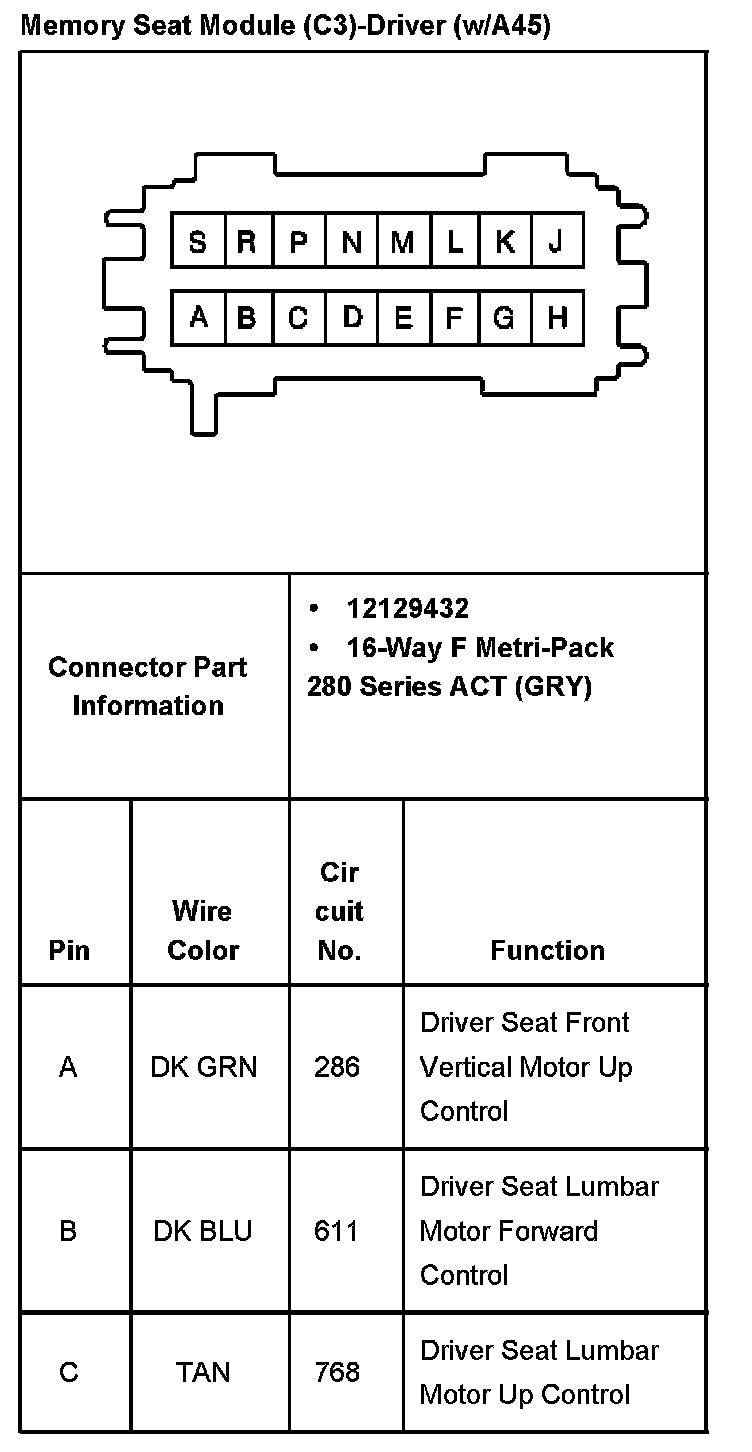

Memory Seat Module (C3) - Driver Part 1:

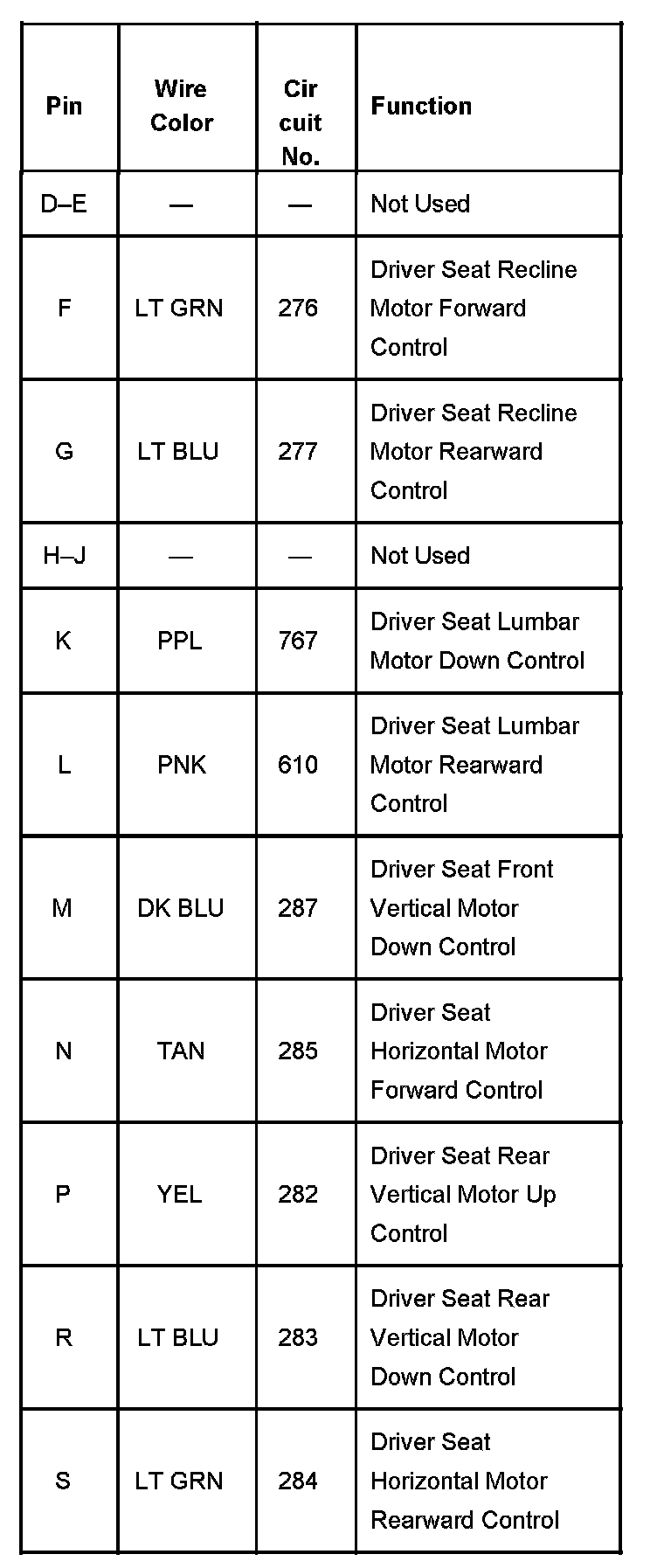

Memory Seat Module (C3) - Driver Part 2:
