Power Door Lock Actuator: Diagrams

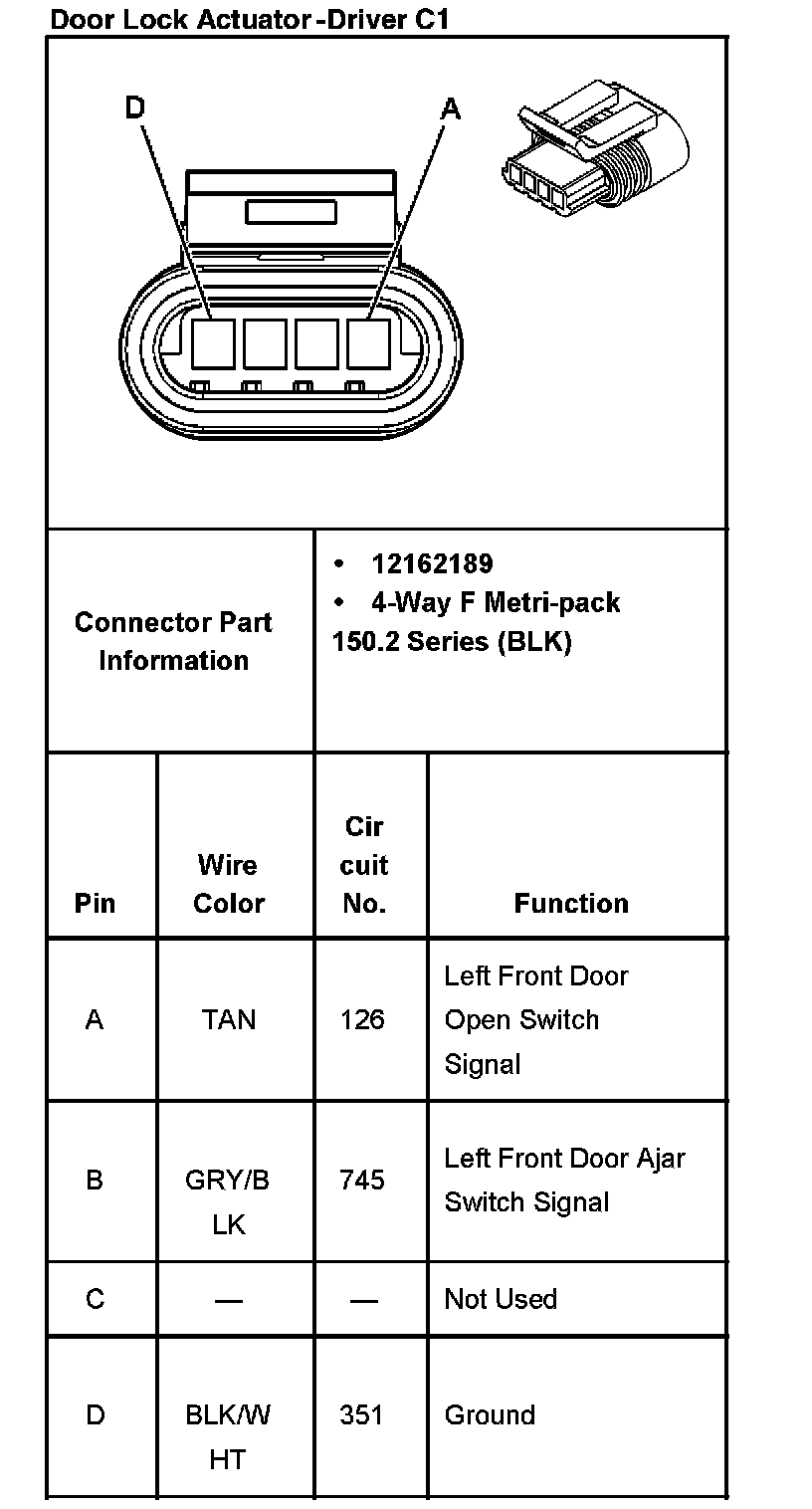

Door Lock Actuator - Driver C1:

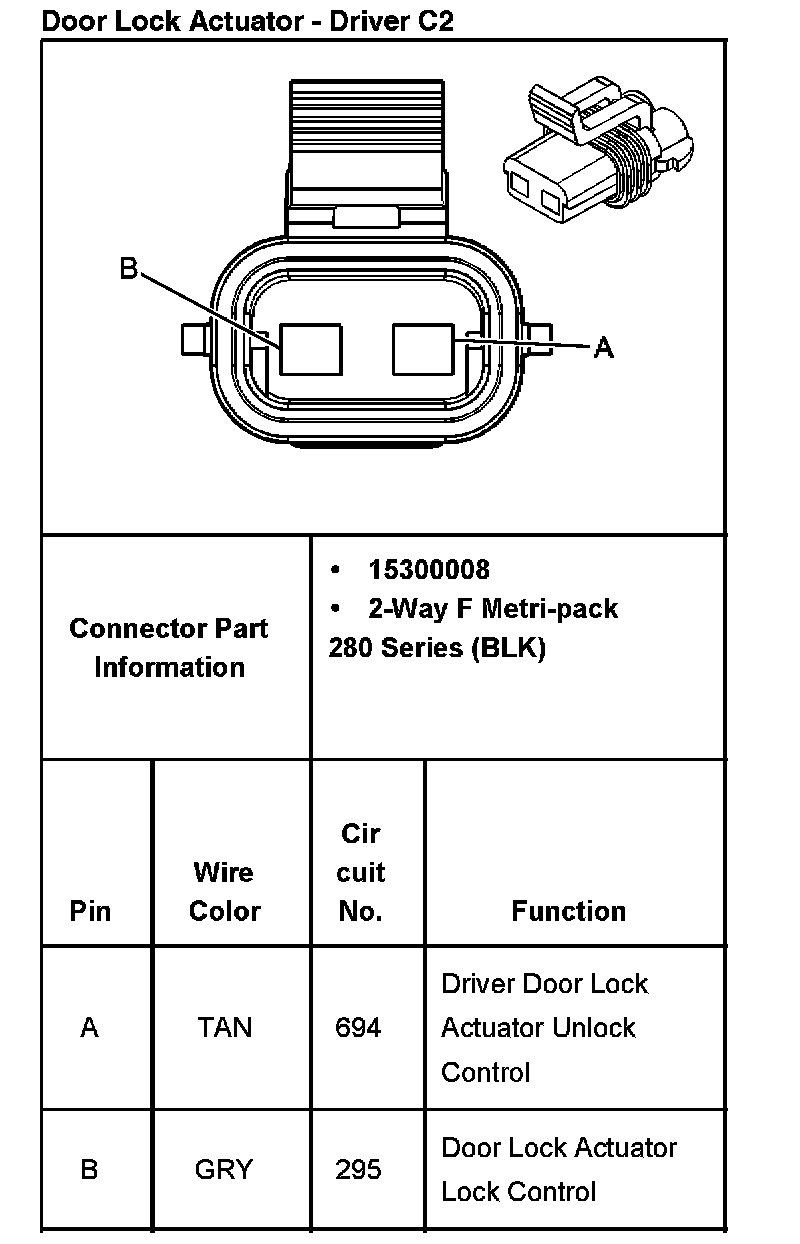

Door Lock Actuator - Driver C2:

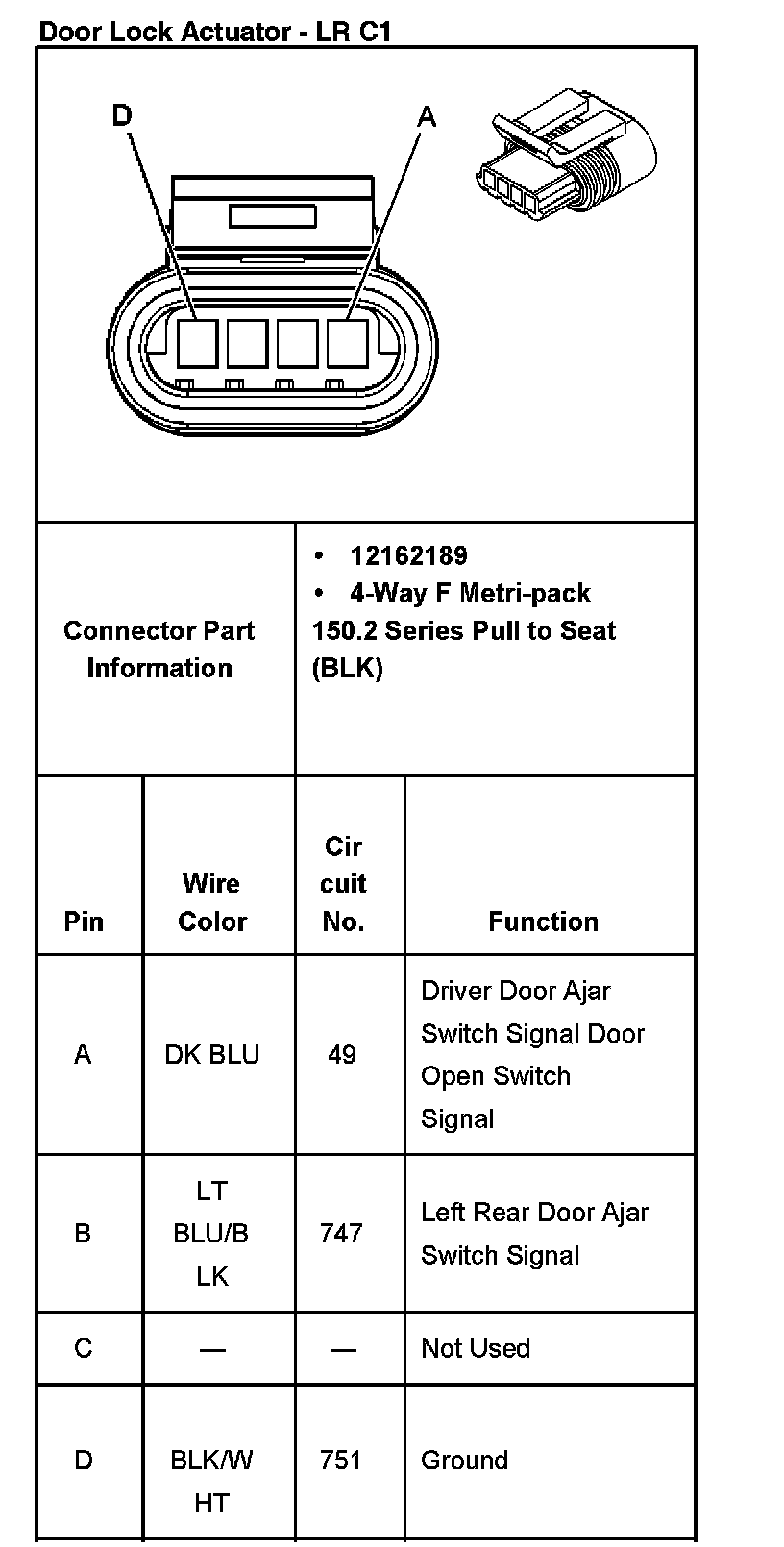

Door Lock Actuator - LR C1:

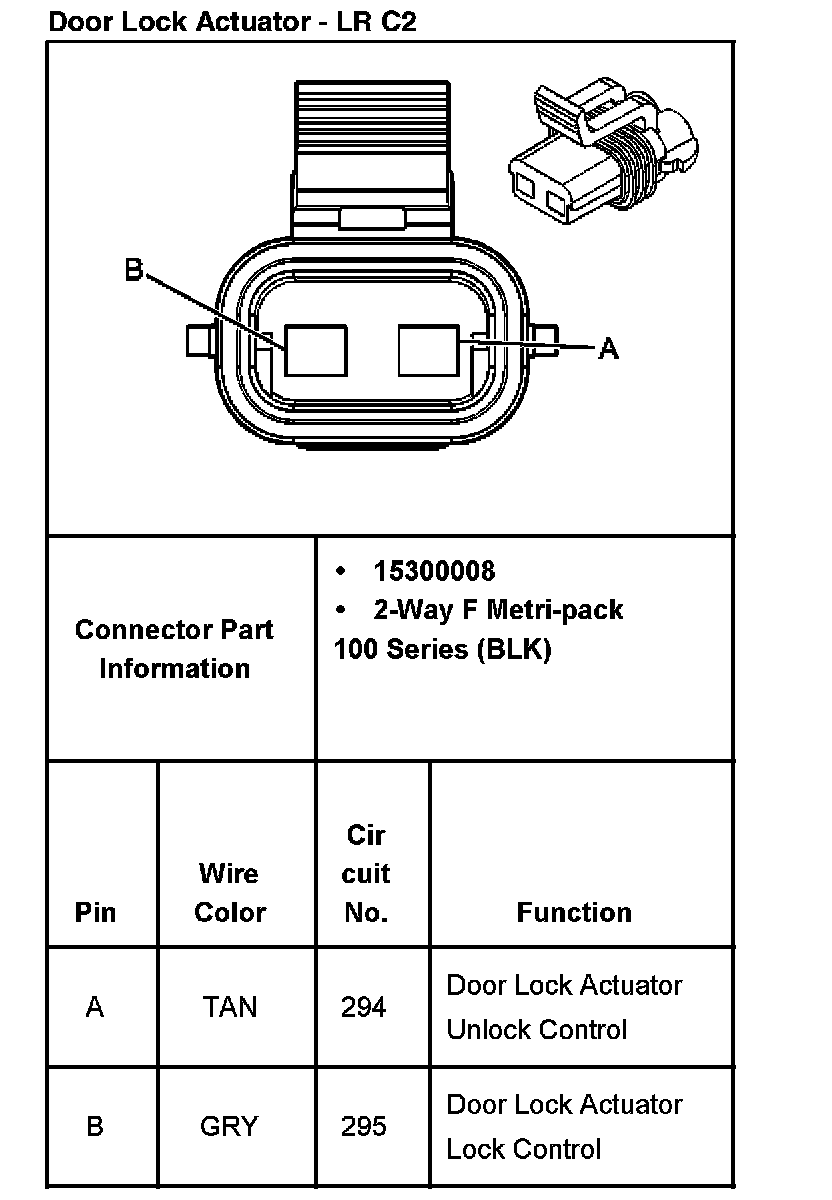

Door Lock Actuator - LR C2:

Door Lock Actuator- Front Passenger C1:

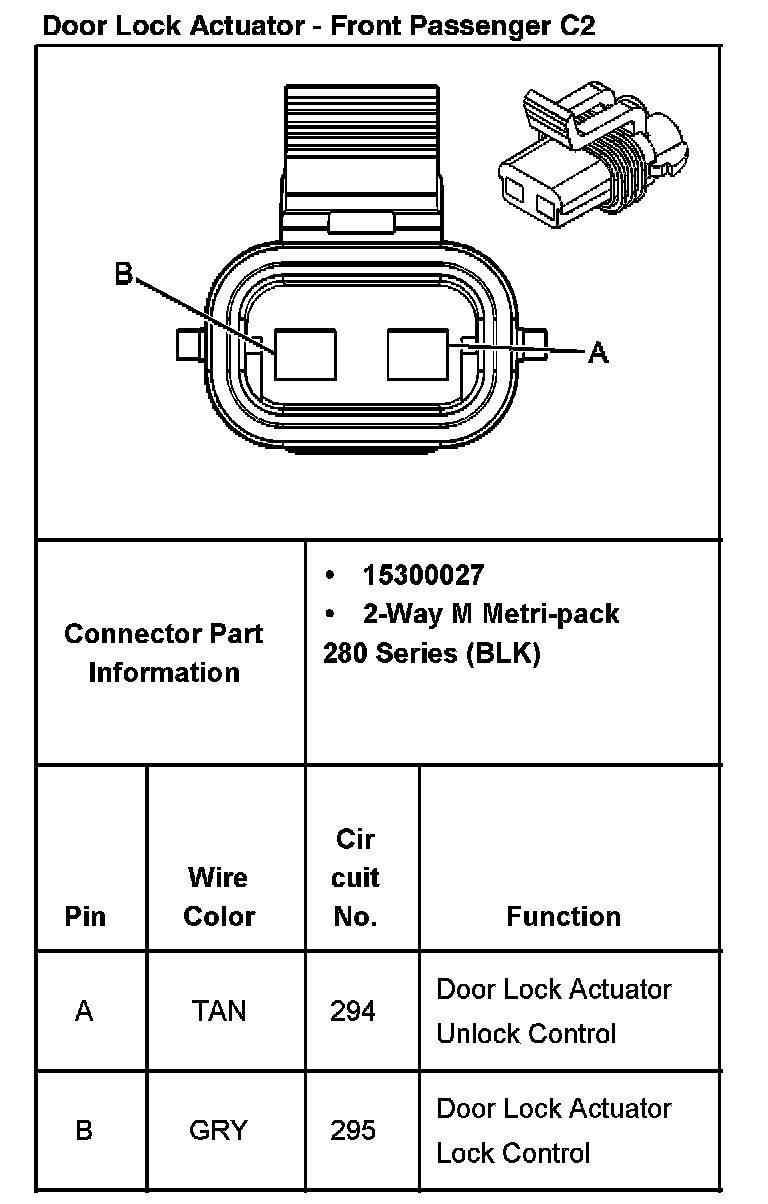

Door Lock Actuator- Front Passenger C2:

Door Lock Actuator- RR C1:

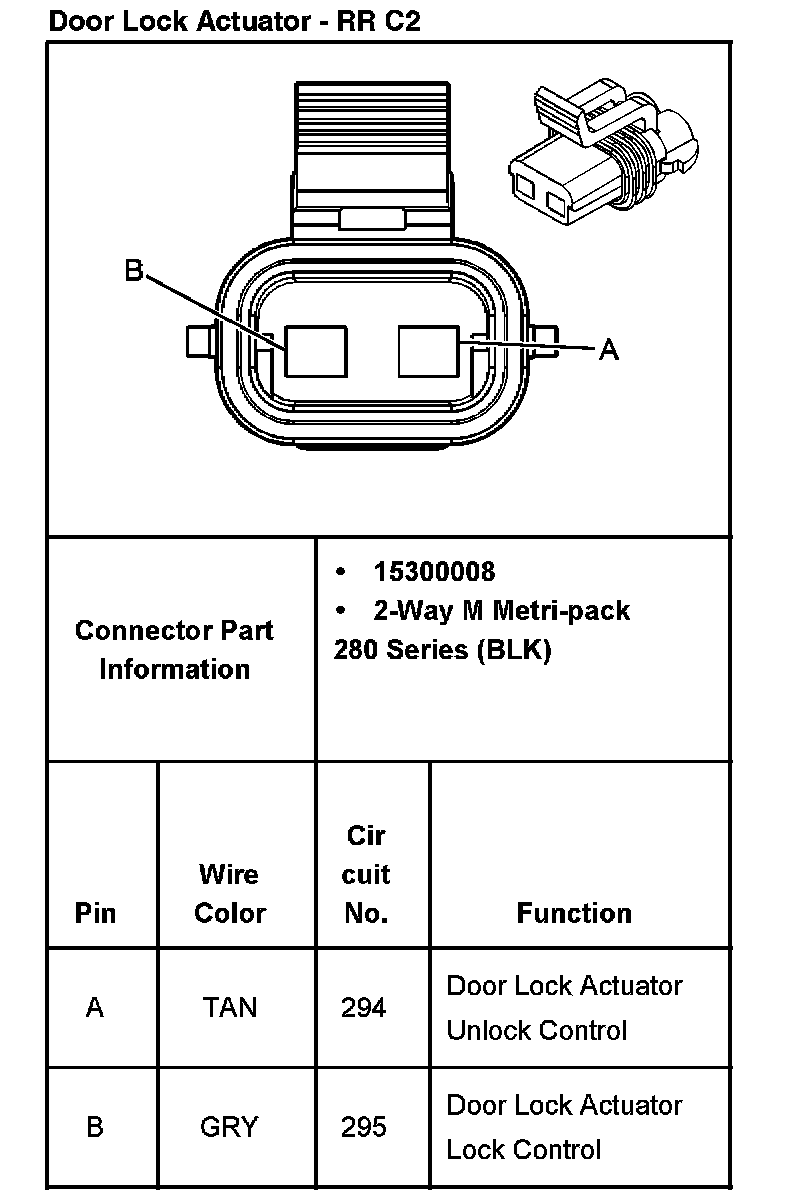

Door Lock Actuator- RR C2:
