Sound Barrier Replacement - Rear Seat Back

Sound Barrier Replacement - Rear Seat Back

Removal Procedure

1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear (Seat Cushion Replacement - Rear) in Seats.
2. Remove the rear seat back. Refer to Seat Back Replacement - Rear (Seat Back Replacement - Rear) in Seats.
3. Remove the rear window shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf (Trim Panel Replacement - Rear Window Shelf) .

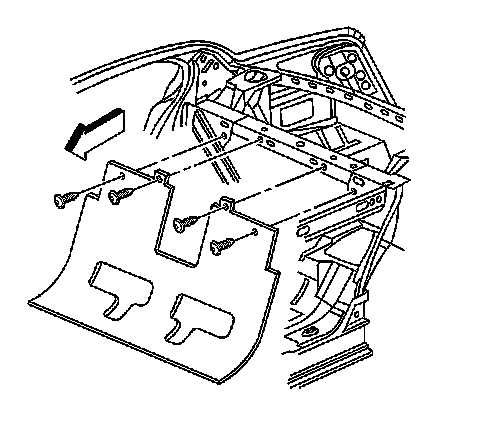

4. Remove the fasteners securing the sound barrier.
5. Remove the sound barrier from the vehicle.



Installation Procedure





1. Install the sound barrier to the vehicle.
2. Install the push in the fasteners in order to secure the sound barrier.
3. Install the rear window shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf (Trim Panel Replacement - Rear Window Shelf) .
4. Install the rear seat back. Refer Seat Back Replacement - Rear (Seat Back Replacement - Rear) in Seats.
5. Install the rear seat cushion. Refer toSeat Cushion Replacement - Rear (Seat Cushion Replacement - Rear) in Seats.
