Trim Panel Carrier Replacement - Rear Shelf

Trim Panel Carrier Replacement - Rear Shelf

Removal Procedure

1. Remove the rear shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf (Trim Panel Replacement - Rear Window Shelf) .

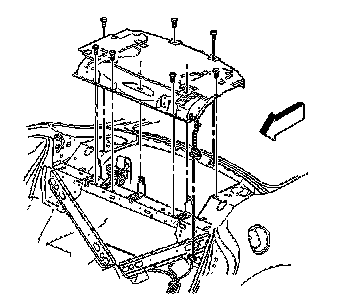

2. Remove the fasteners securing the carrier.
3. Disconnect the electrical connector.
4. Remove the rear shelf trim panel carrier from the vehicle.



Installation Procedure





1. Install the rear shelf trim panel carrier into the vehicle.
2. Connect the electrical connector.
3. Install the fasteners in order to secure the carrier.
Notice: Refer to Fastener Notice in Cautions and Notices.



Tighten the fasteners to 9 N.m (80 lb in).

4. Install the rear shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf (Trim Panel Replacement - Rear Window Shelf) .
