Power Accessory Receptacle Replacement

ACCESSORY POWER RECEPTACLE REPLACEMENT - FLOOR CONSOLE

REMOVAL PROCEDURE
1. Remove the center IP trim plate.
2. Remove the center console trim plate.
3. Remove the console tray insert.

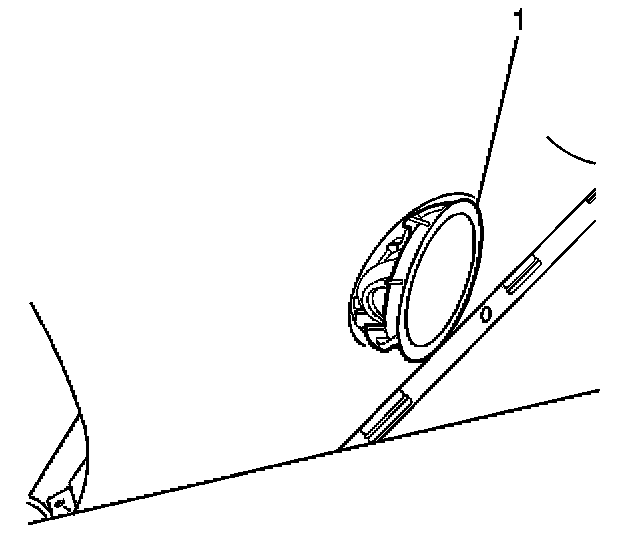

4. Release on the rearward tab in order to push the accessory port (1) out of the console.

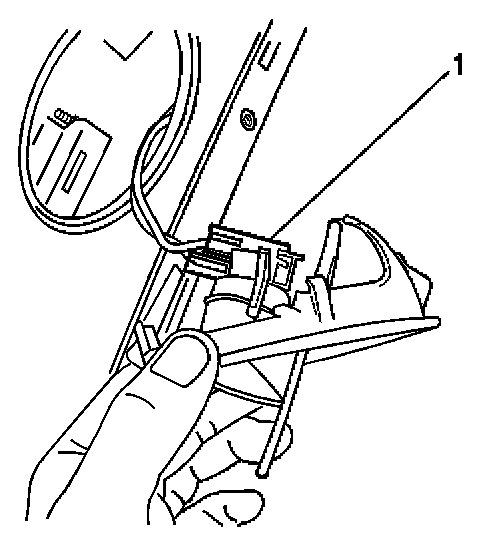

5. Disconnect the electrical connector (1).

INSTALLATION PROCEDURE

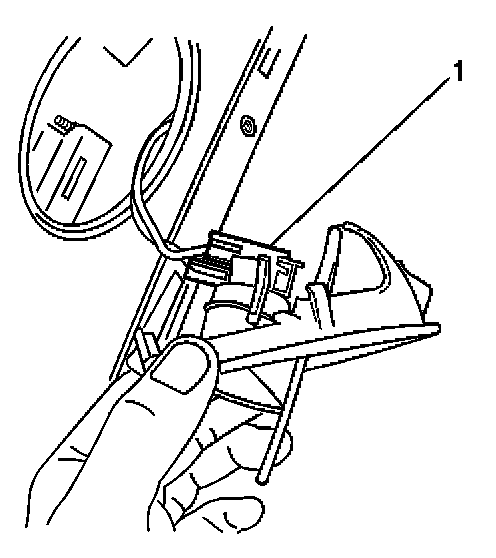

1. Connect the electrical connector (1).

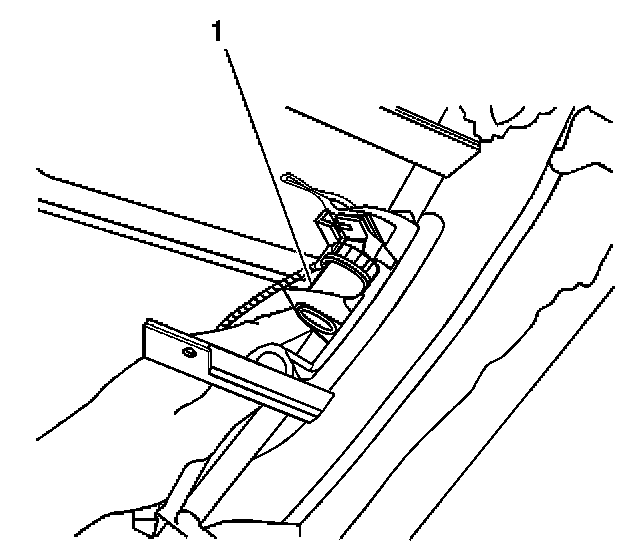

2. Insert the accessory port (1) forward edge and push inward in order to install into the console.
3. Install the center console trim plate.
4. Install the center IP trim plate.
