Bracket Replacement - Steering Column

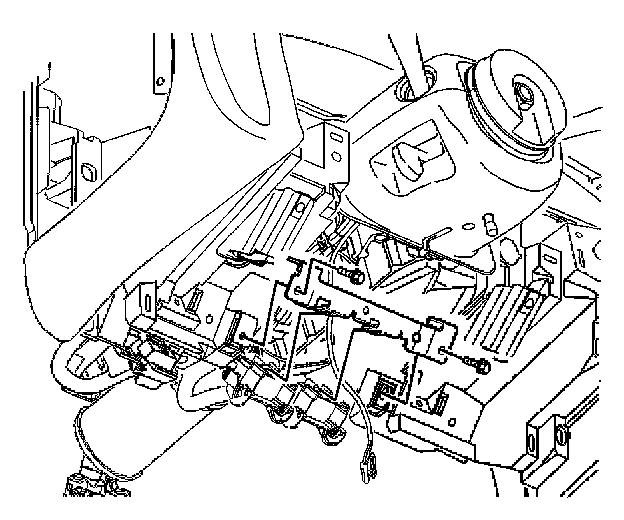

BRACKET REPLACEMENT - STEERING COLUMNREMOVAL PROCEDURE
1. Remove the knee bolster bracket from the instrument panel.
2. Remove the steering column bracket fasteners securing the bracket to the carrier.
3. Remove the bracket from the vehicle.

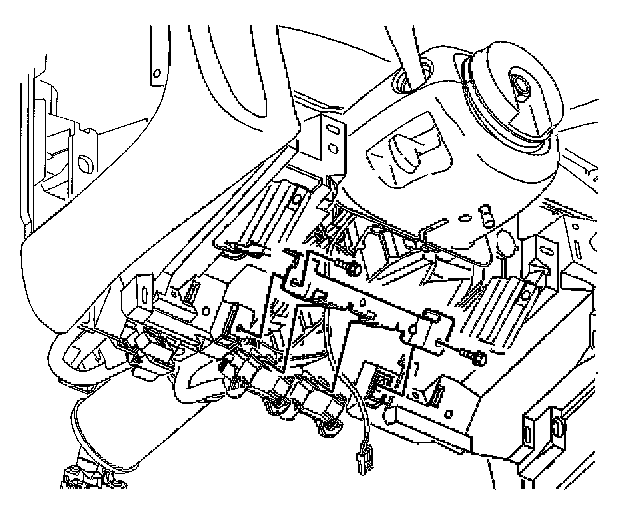

INSTALLATION PROCEDURE
1. Position the steering column bracket to the /IP carrier.
2. Install the steering column bracket fasteners.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the fasteners to 9 N.m (80 lb in).
3. Install the knee bolster.
