Trim Plate Replacement - Console Rear

Trim Plate Replacement - Console Rear

Removal Procedure

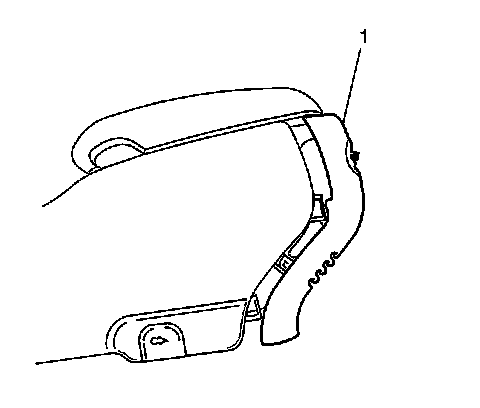

1. Remove the fasteners (1) from the trim plate.




2. Pull the console rear trim plate (1) rearward in order to disengage the trim plate from the console.



Installation Procedure





1. Align the console trim plate (1) and snap into place.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the console rear trim plate fasteners (1).

Tighten the fasteners (1) to 1.4 N.m (12 lb in).
