Door Replacement - Console Compartment Center

Door Replacement - Console Compartment Center

Removal Procedure

1. Remove the rear console trim plate. Refer to Trim Plate Replacement - Console Rear (Trim Plate Replacement - Console Rear) .

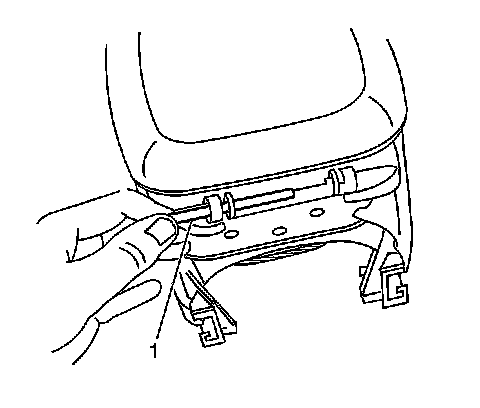

2. Remove the two clips holding the pin (1) into the console.
3. Remove the pin (1) in order to remove the door assembly.



Installation Procedure





1. Install the door and the pin (1) to the console.
2. Install the two clips to the pin (1).
3. Install the rear console trim plate. Refer to Trim Plate Replacement - Console Rear (Trim Plate Replacement - Console Rear) .
