Console Tray Insert Replacement

Console Tray Insert Replacement

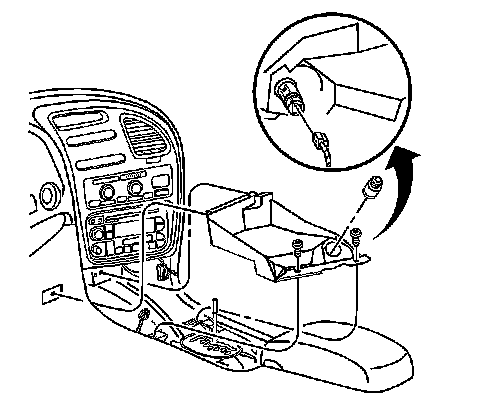

Removal Procedure

1. Remove the IP center trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center. Instrument Panel (IP) - Trim Panel Replacement - Center
2. Remove the console trim plate. Refer to Trim Plate Replacement - Console Service and Repair.




3. Remove the fasteners from the compartment assembly to the IP.
4. Remove the compartment assembly by pulling rearward.
5. Disconnect the electrical connector from the cigar lighter.



Installation Procedure





1. Connect the electrical connector to the cigar lighter.
2. Install the compartment into the IP by sliding forward into the IP.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the compartment to IP fasteners.

Tighten the fasteners to 1.4 N.m (12 lb in).

4. Install the console trim plate. Refer to Trim Plate Replacement - Console (Service and Repair) .
5. Install the IP center trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center. Instrument Panel (IP) - Trim Panel Replacement - Center
