Console Replacement - Overhead

Console Replacement - Overhead

Removal Procedure






Important: Do not let the overhead console hang from the wire harness.

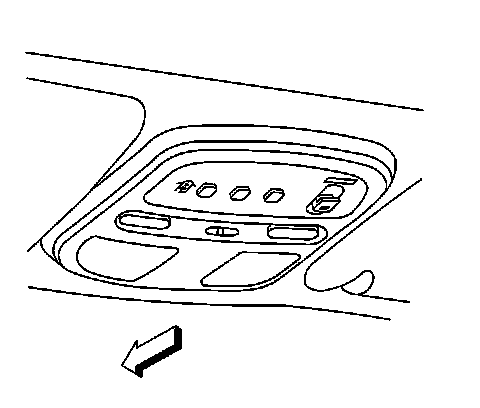

1. Carefully pull down on the overhead console to release the retainer clips securing the overhead console to the headliner.
2. Disconnect the wire electrical connectors.
3. Remove the overhead console from the vehicle.



Installation Procedure





1. Connect the electrical connectors.
2. Position the overhead console to the opening in the headliner.
3. Push in on the overhead console in order to engage the retainer clips securing the overhead console to the headliner.
