Fender Replacement - Front

Fender Replacement - Front

Removal Procedure


Notice: Refer to Tape Corners of Panel Notice in Cautions and Notices.





1. Remove the rocker molding. Refer to Molding Replacement - Rocker Panel () in Exterior Trim.
2. Remove the air deflector. Refer to Air Deflector Replacement - Front (Service and Repair) .
3. Remove the fascia to fender fasteners. Refer to Fascia Replacement - Front Bumper (Fascia Replacement - Front Bumper) .

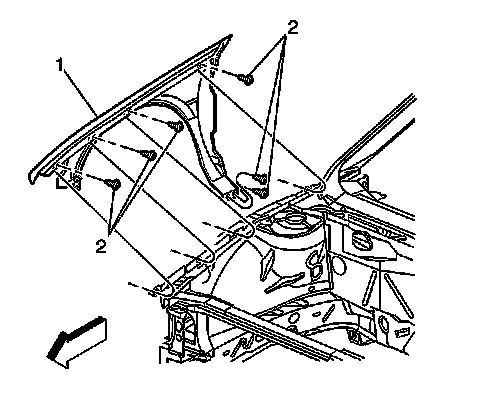

4. Remove the fender fasteners (2).
5. Remove the fender (1) from the vehicle.



Installation Procedure





1. Install the fender (1) to the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the fender fasteners (2).

Tighten the fasteners to 9 N.m (80 lb in).

3. Install the fascia to fender fasteners. Refer to Fascia Replacement - Front Bumper (Fascia Replacement - Front Bumper) in Bumpers.
4. Install the air deflector. Refer to Air Deflector Replacement - Front (Service and Repair) .
5. Install the rocker molding. Refer to Molding Replacement - Rocker Panel () in Exterior Trim.
