Lock Cylinder Replacement - Rear Compartment Lid (LX5 Engine/Steel Lid)

Lock Cylinder Replacement - Rear Compartment Lid (LX5 Engine/Steel Lid)

Removal Procedure





1. Open the rear compartment lid.
2. Remove the rear compartment lid trim. Refer to Compartment Lid Trim Replacement - Rear (Compartment Lid Trim Replacement - Rear) .
3. Remove the latch cable assembly from the back of the lock cylinder.
4. Remove the rear compartment lid applique. Refer to Compartment Lid Applique Replacement - Rear () .

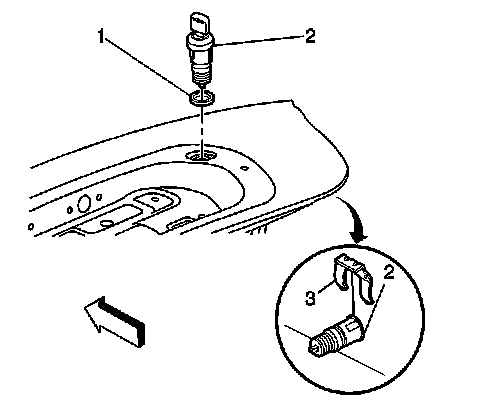

5. Remove the lock cylinder retaining clip (3) from inside the compartment lid.
6. Remove the lock cylinder from the rear compartment lid.



Installation Procedure





1. Position the lock cylinder (2) into the rear compartment lid.
2. Install the retainer clip (3) to the back side of the rear compartment lid in order to retain the lock cylinder (2) to the rear compartment lid.
3. Install the rear compartment lid applique. Refer to Compartment Lid Applique Replacement - Rear () .
4. Install the latch cable to the back side of the lock cylinder.
5. Install the rear compartment lid trim. Refer to Compartment Lid Trim Replacement - Rear (Compartment Lid Trim Replacement - Rear) .
6. Close the rear compartment lid.
