Lock Cylinder Replacement - Rear Compartment Lid (L47 Engine/Aluminum Lid)

Lock Cylinder Replacement - Rear Compartment Lid (L47 Engine/Aluminum Lid)

Removal Procedure





1. Open the rear compartment lid.
2. Remove the rear compartment lid trim. Refer to Compartment Lid Trim Replacement - Rear (Compartment Lid Trim Replacement - Rear) .
3. Remove the latch cable from the back side of the lock cylinder.

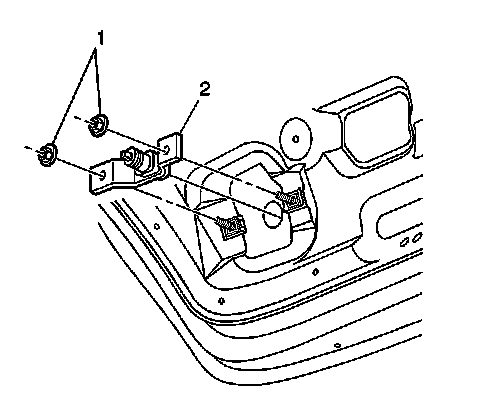

4. Remove the fasteners (1) retaining the lock cylinder bracket (2) to the lid.
5. Remove the lock cylinder and bracket (2) from the lid.
6. Remove the lock cylinder from the bracket.



Installation Procedure





1. Install the lock cylinder to the bracket (2).
2. Install the bracket and cylinder (2) to the rear compartment lid.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the fasteners (1) in order to retain the lock cylinder bracket to the lid.

Tighten the fasteners to 9 N.m (80 lb in).

4. Install the latch cable to the back of the lock cylinder.
5. Install the rear compartment lid trim. Refer toCompartment Lid Trim Replacement - Rear (Compartment Lid Trim Replacement - Rear) .
6. Close the lid.
