Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Trunk Release Inoperative

Trunk Release Inoperative

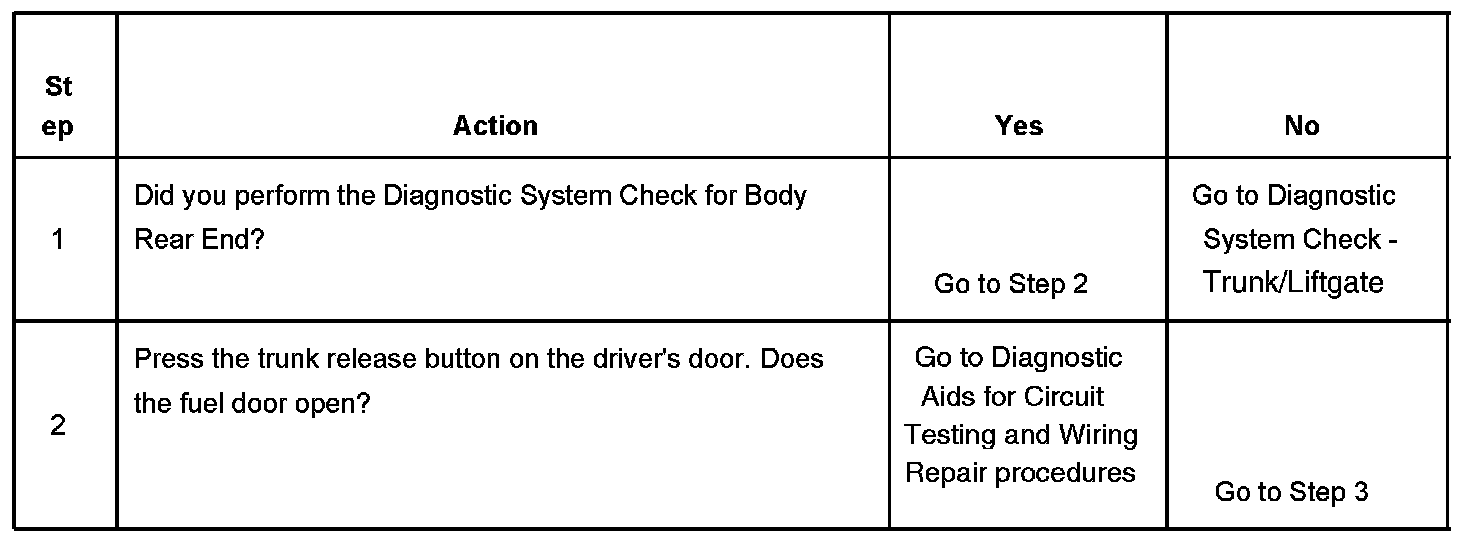

Steps 1-2:

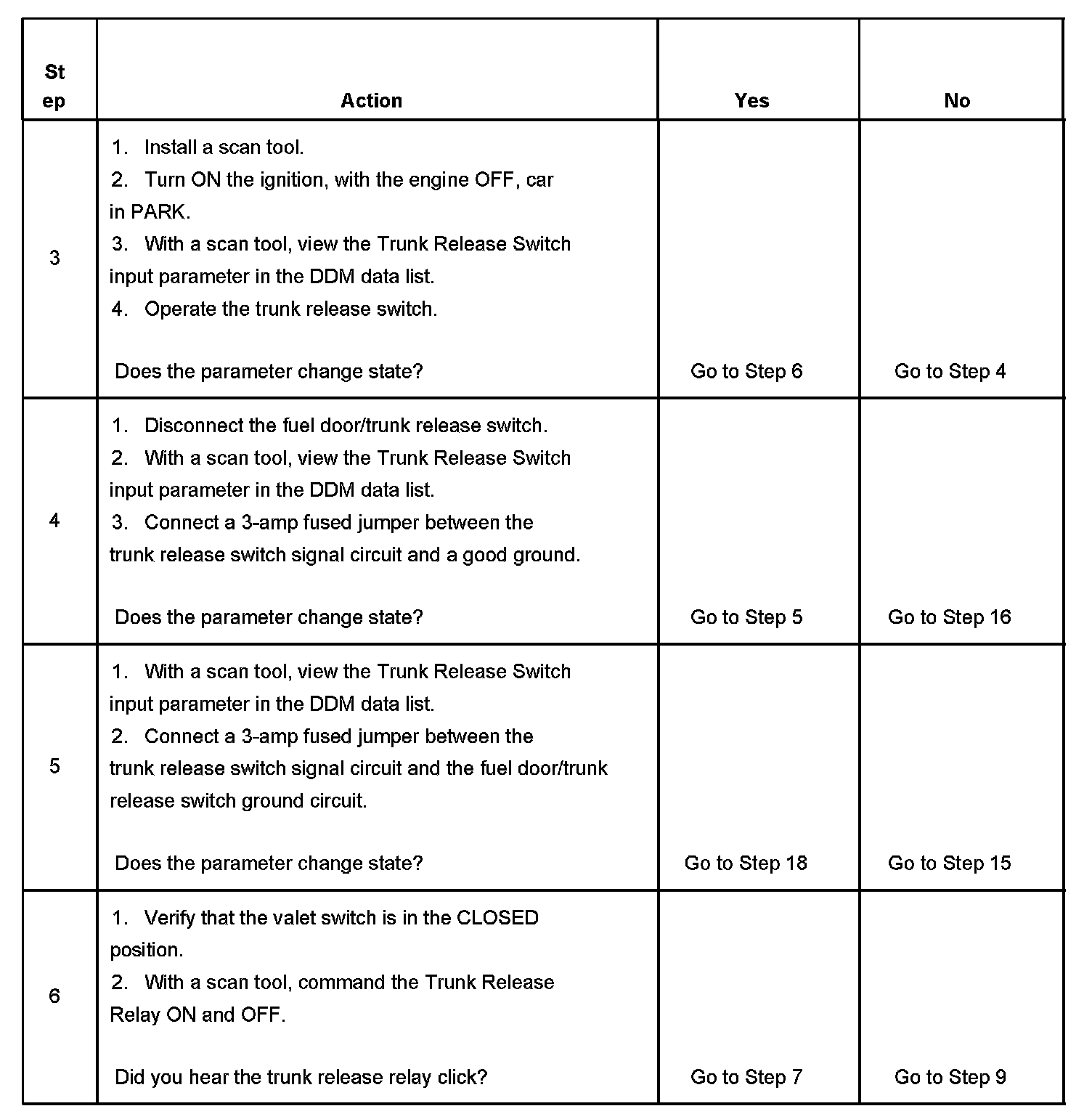

Steps 3-6:

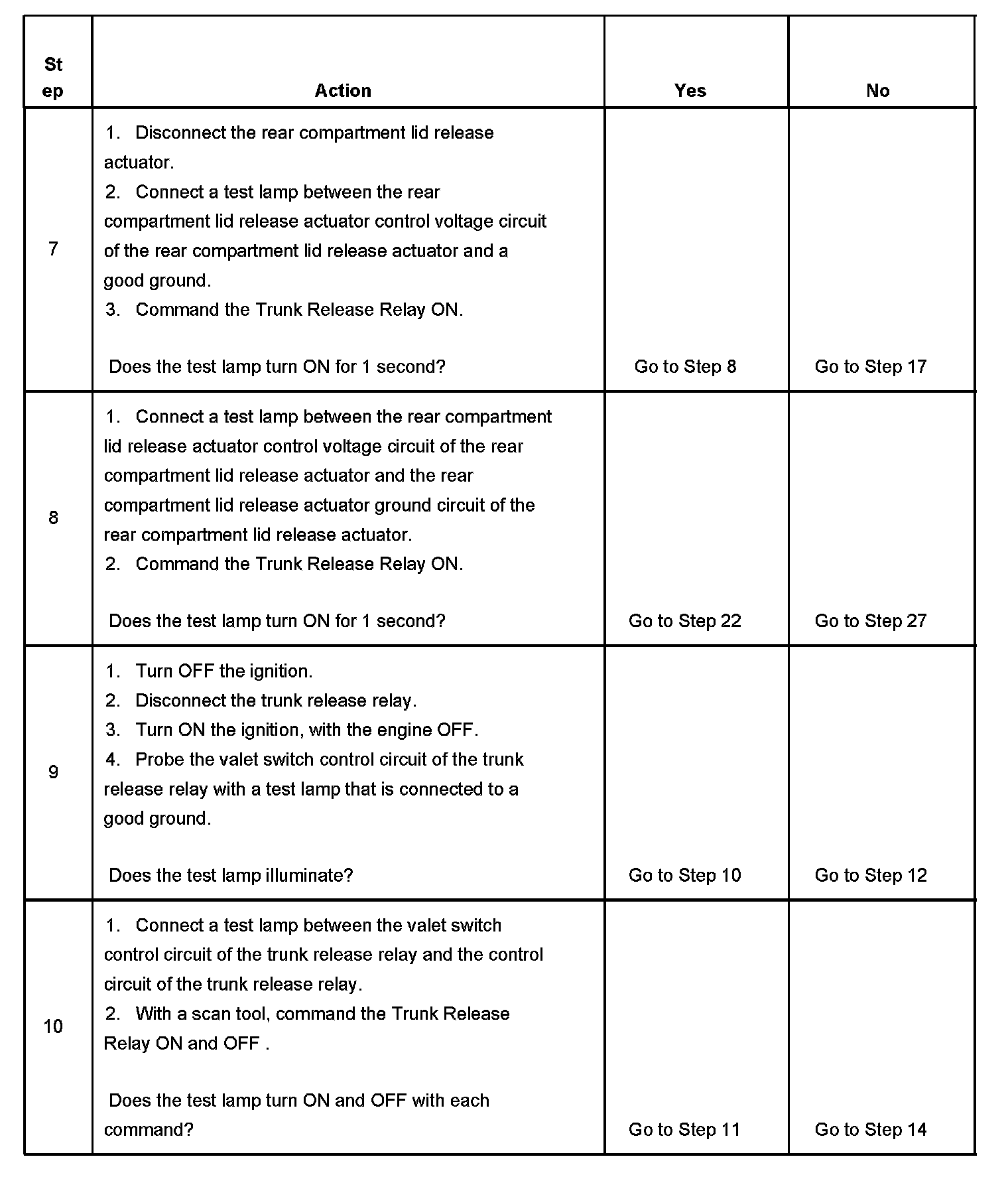

Steps 7-10:




Steps 11-16:

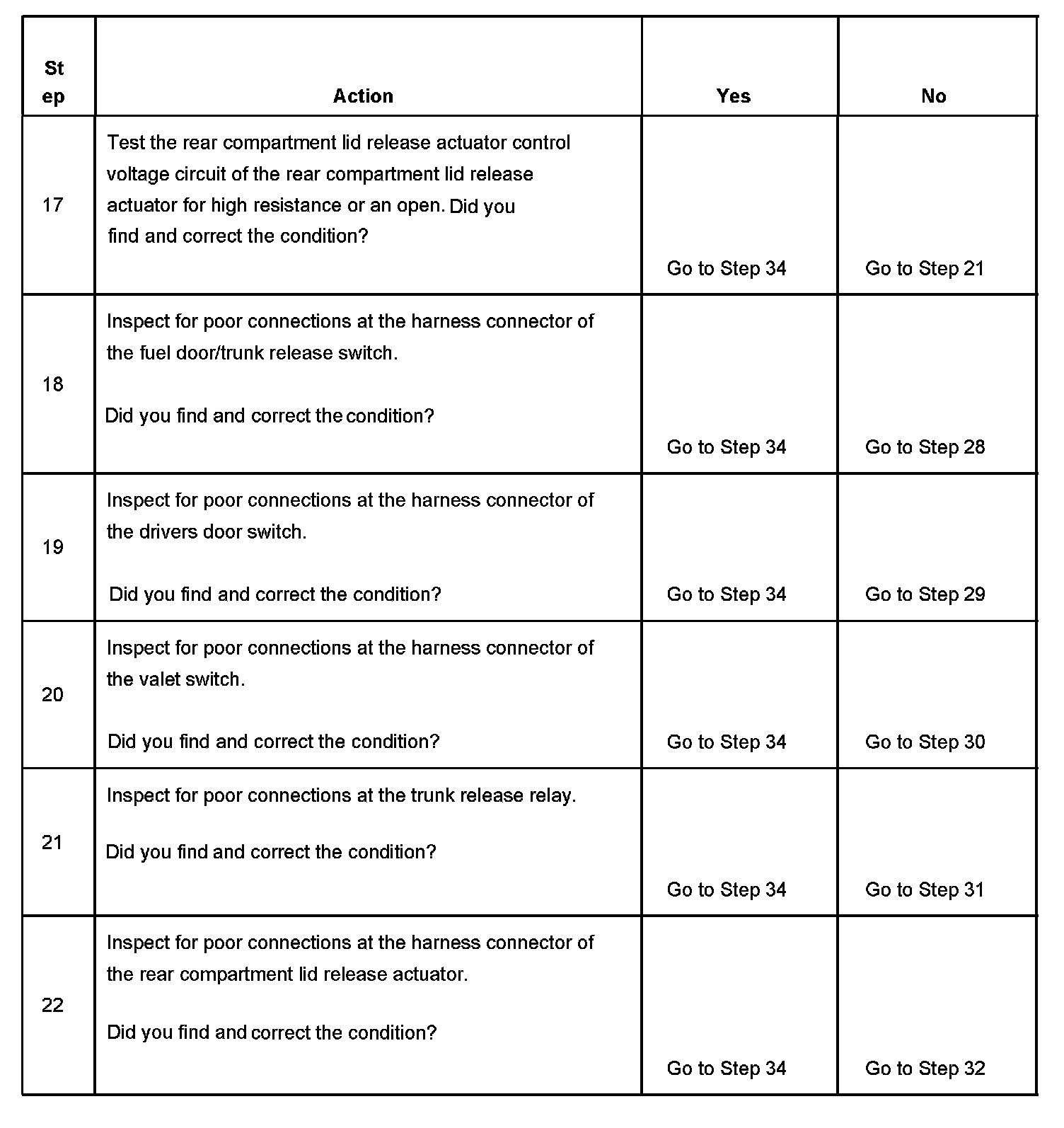

Steps 17-22:

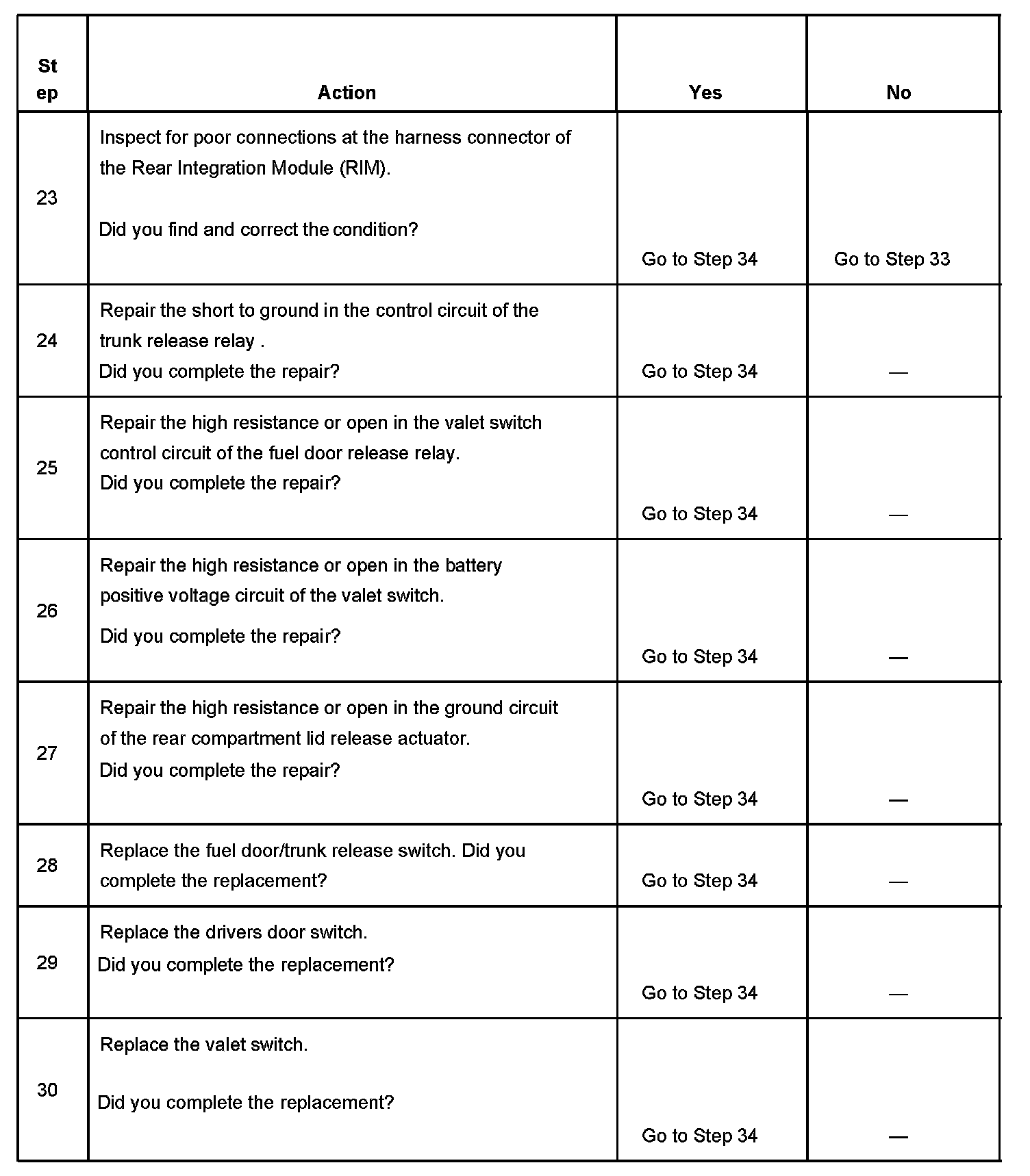

Steps 23-30:

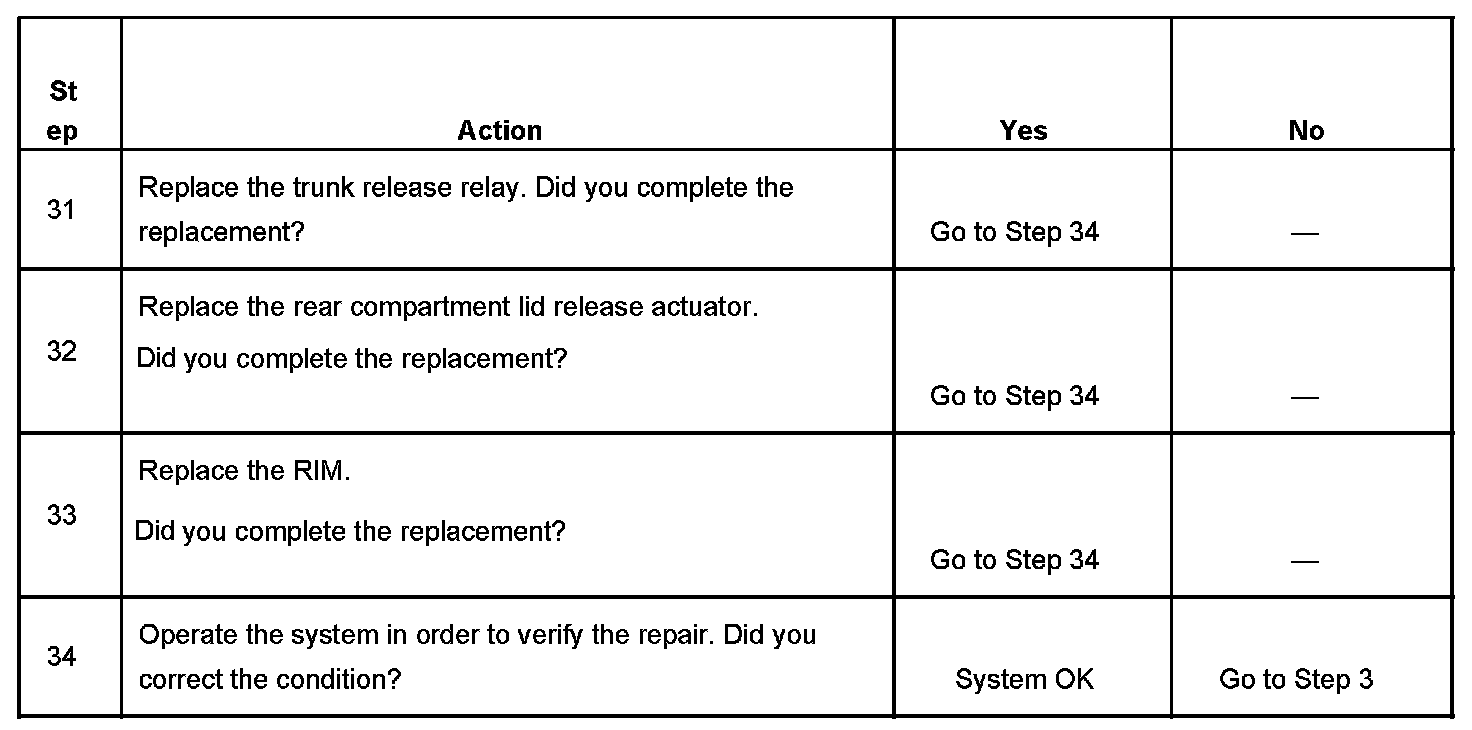

Steps 31-34:
