Fuel Filler Door Release Inoperative

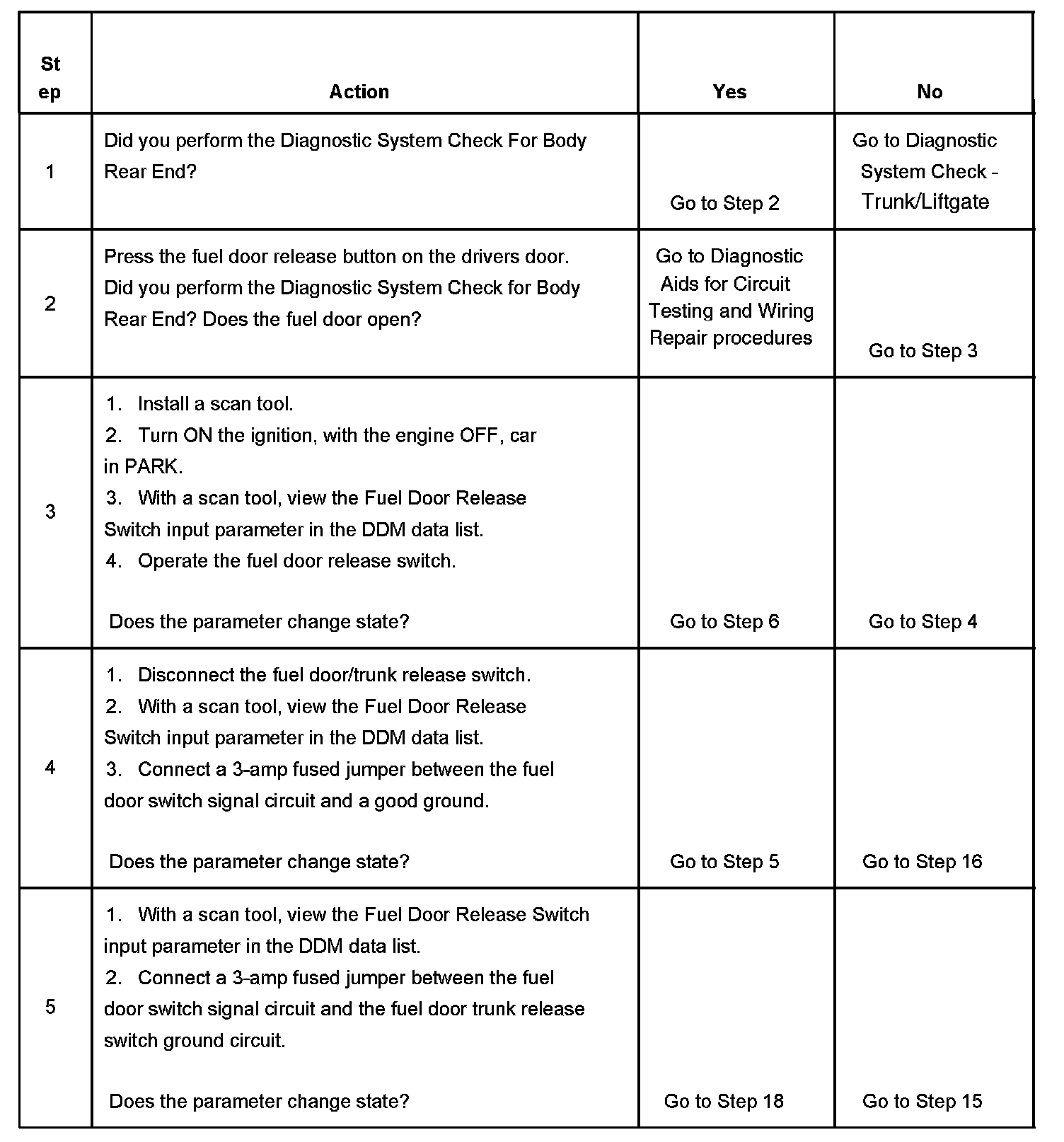

Steps 1-5:

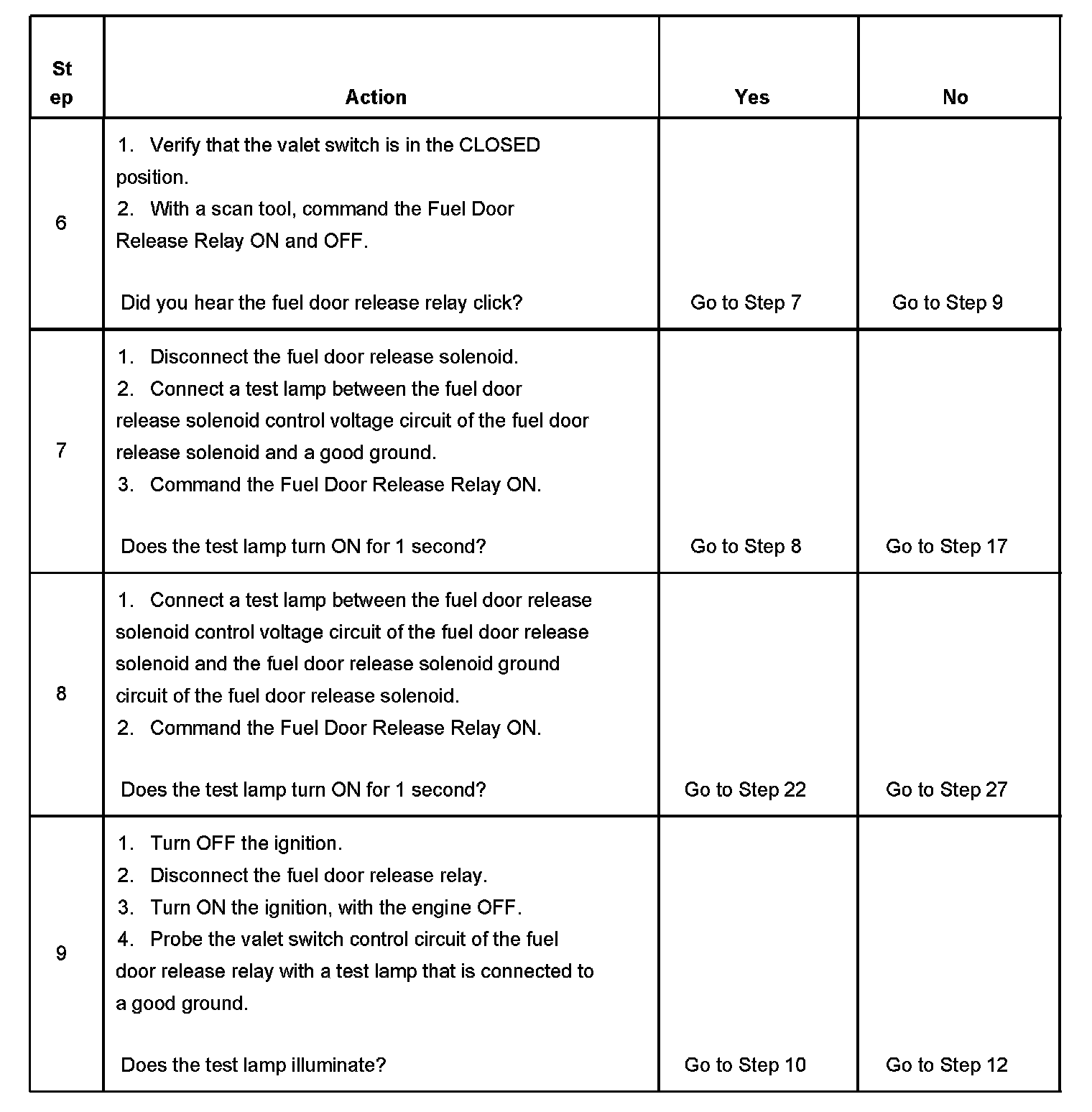

Steps 6-9:

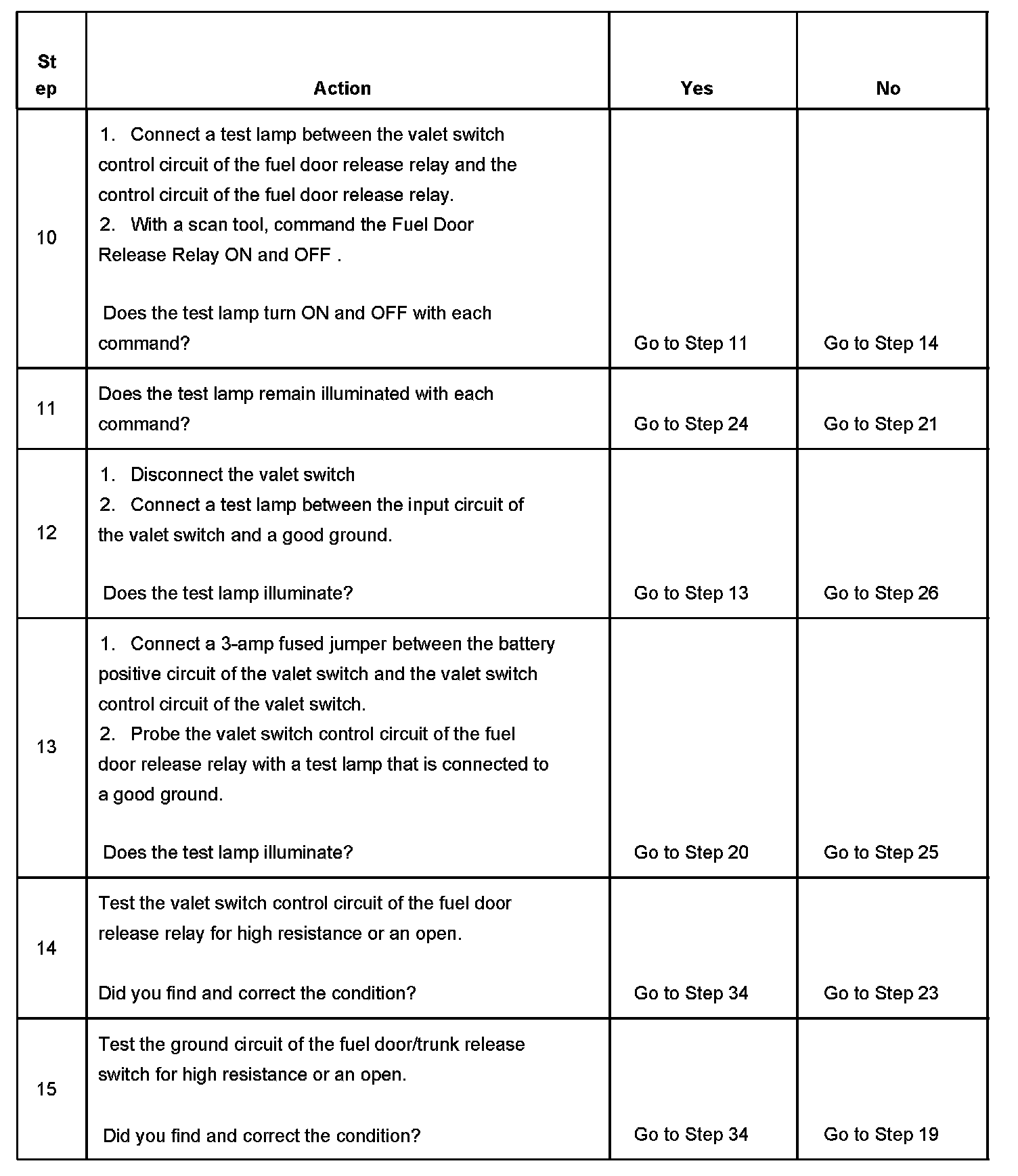

Steps 10-15:

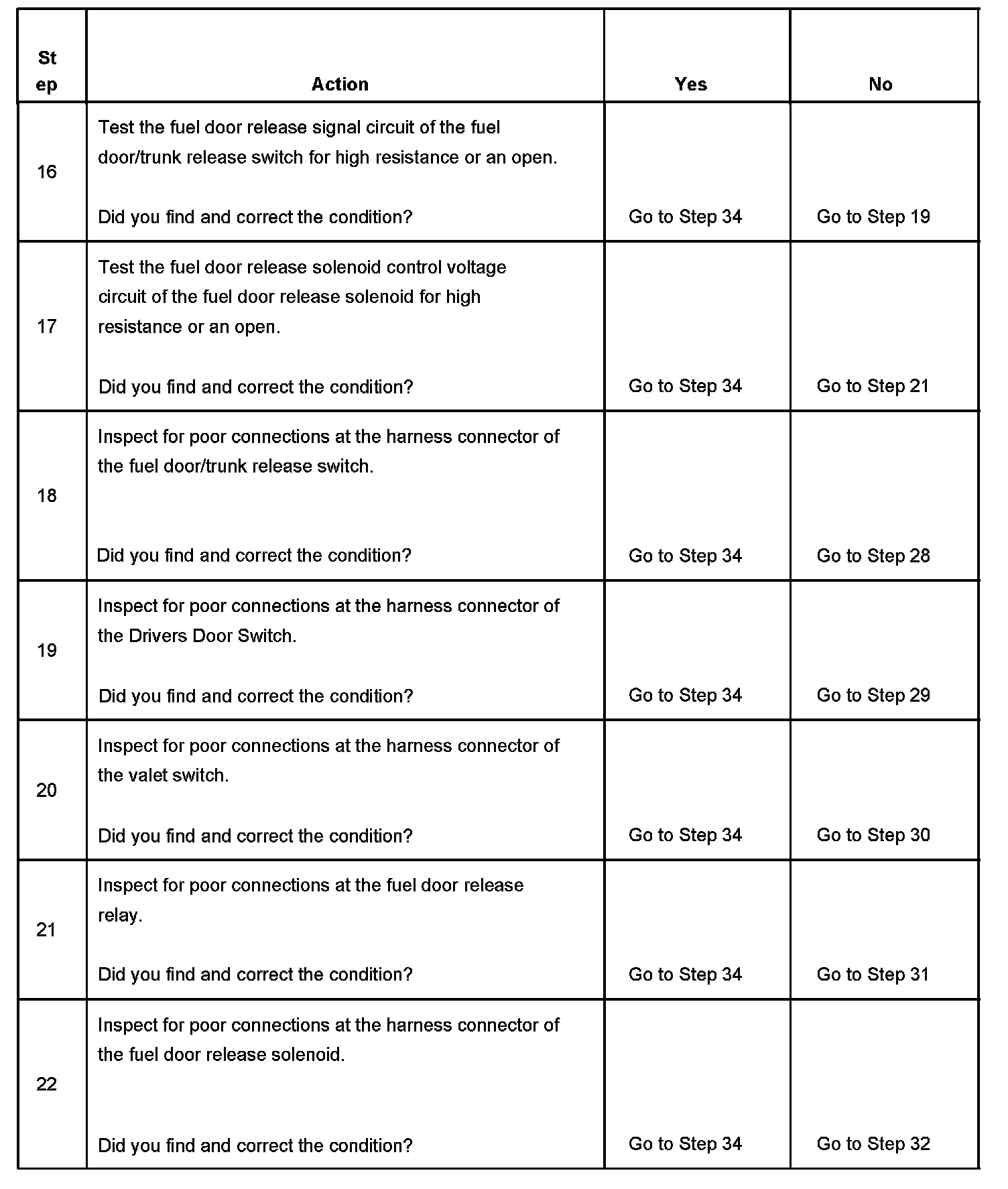

Steps 16-22:

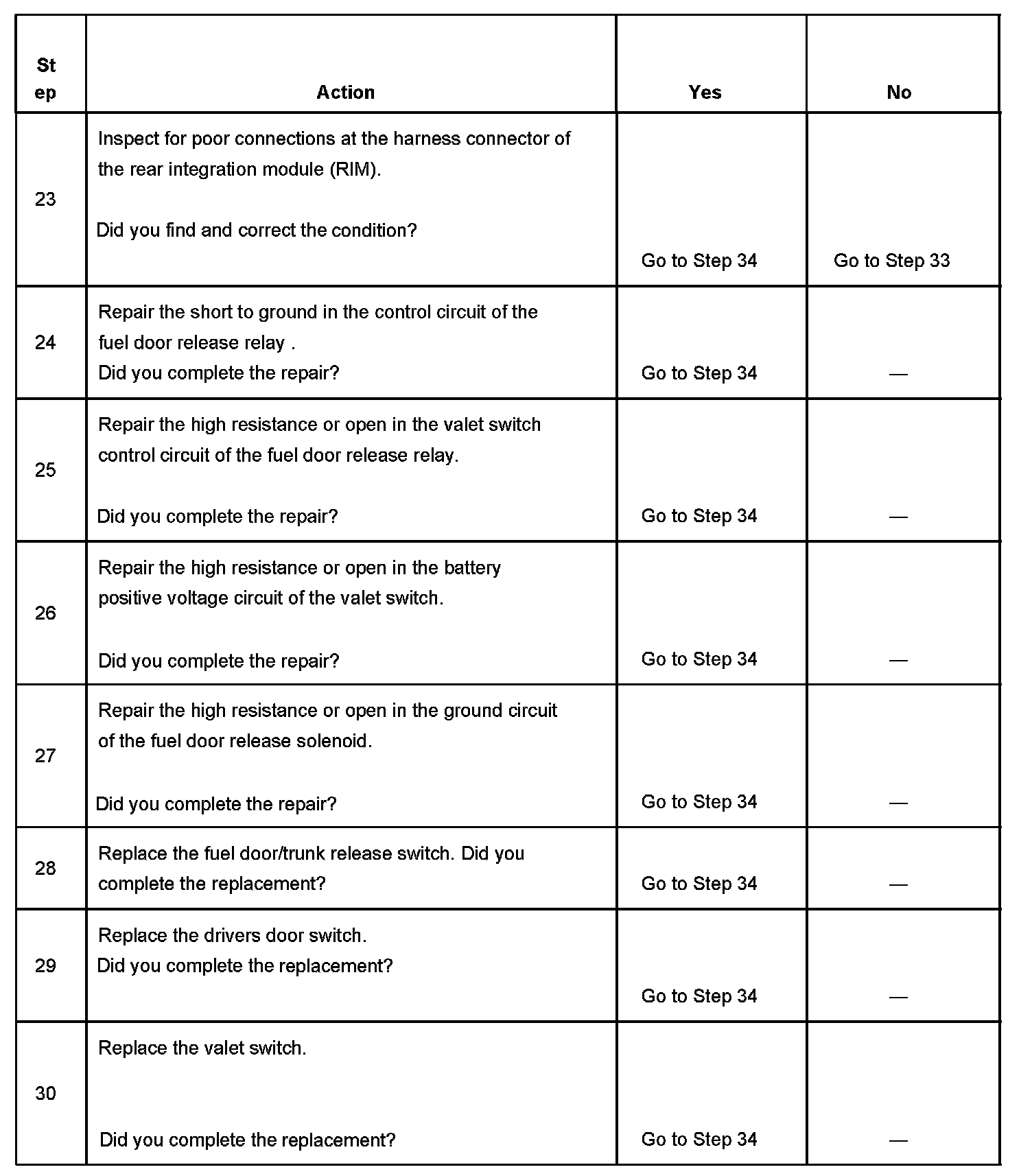

Steps 23-30:

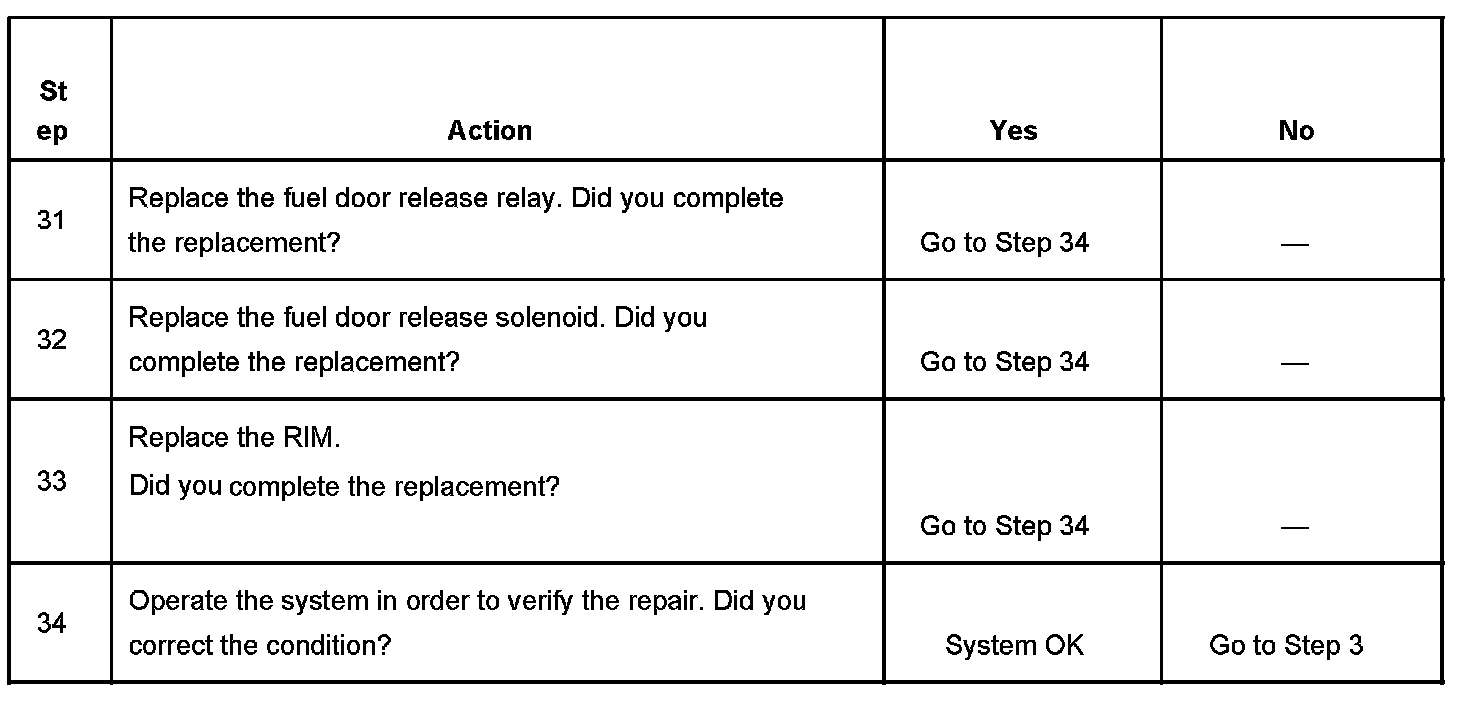

Steps 31-34:
