Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Power Door Locks - Inoperative - Key Cylinder Switches

Power Door Locks - Inoperative - Key Cylinder Switches

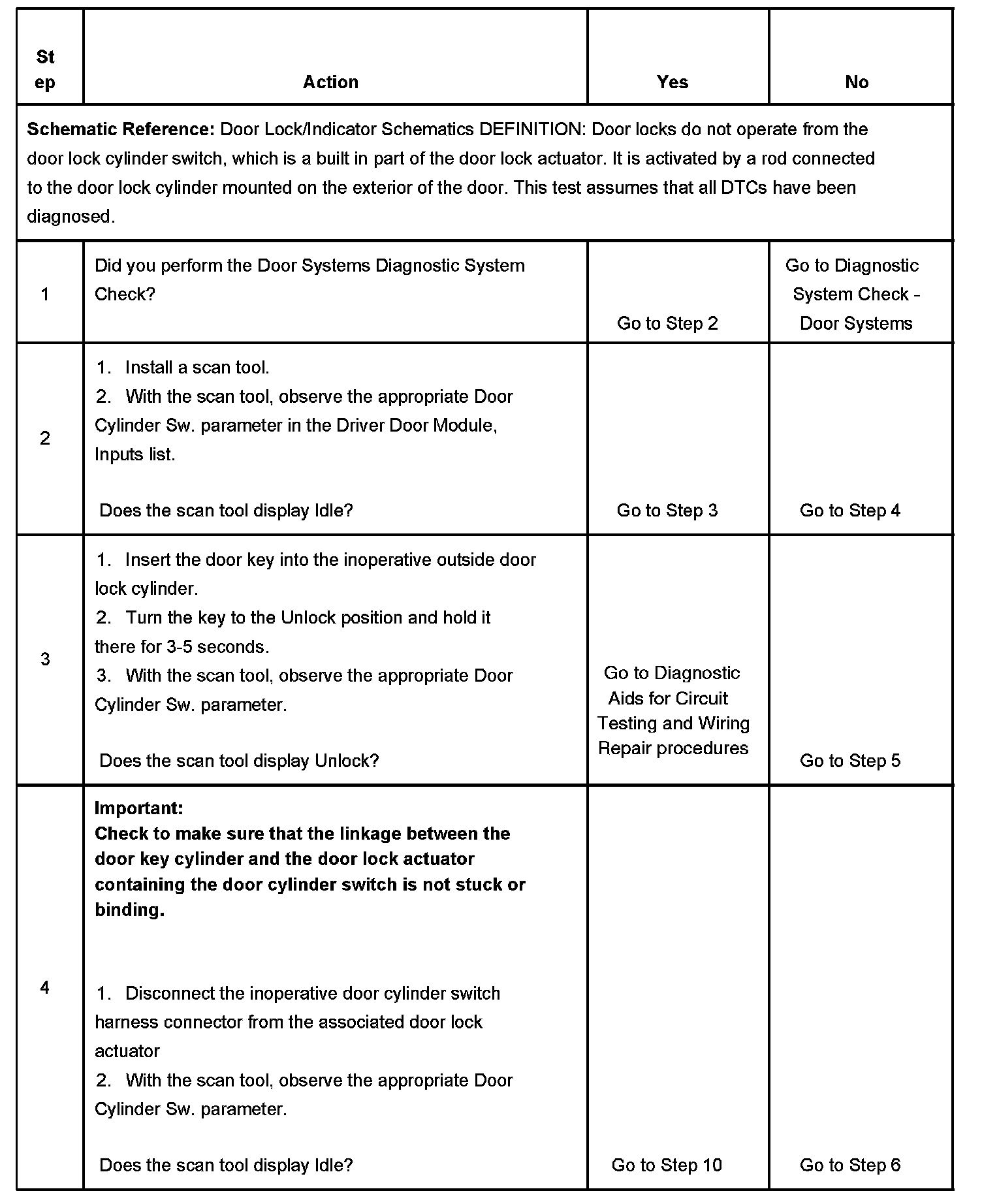

Steps 1-4:

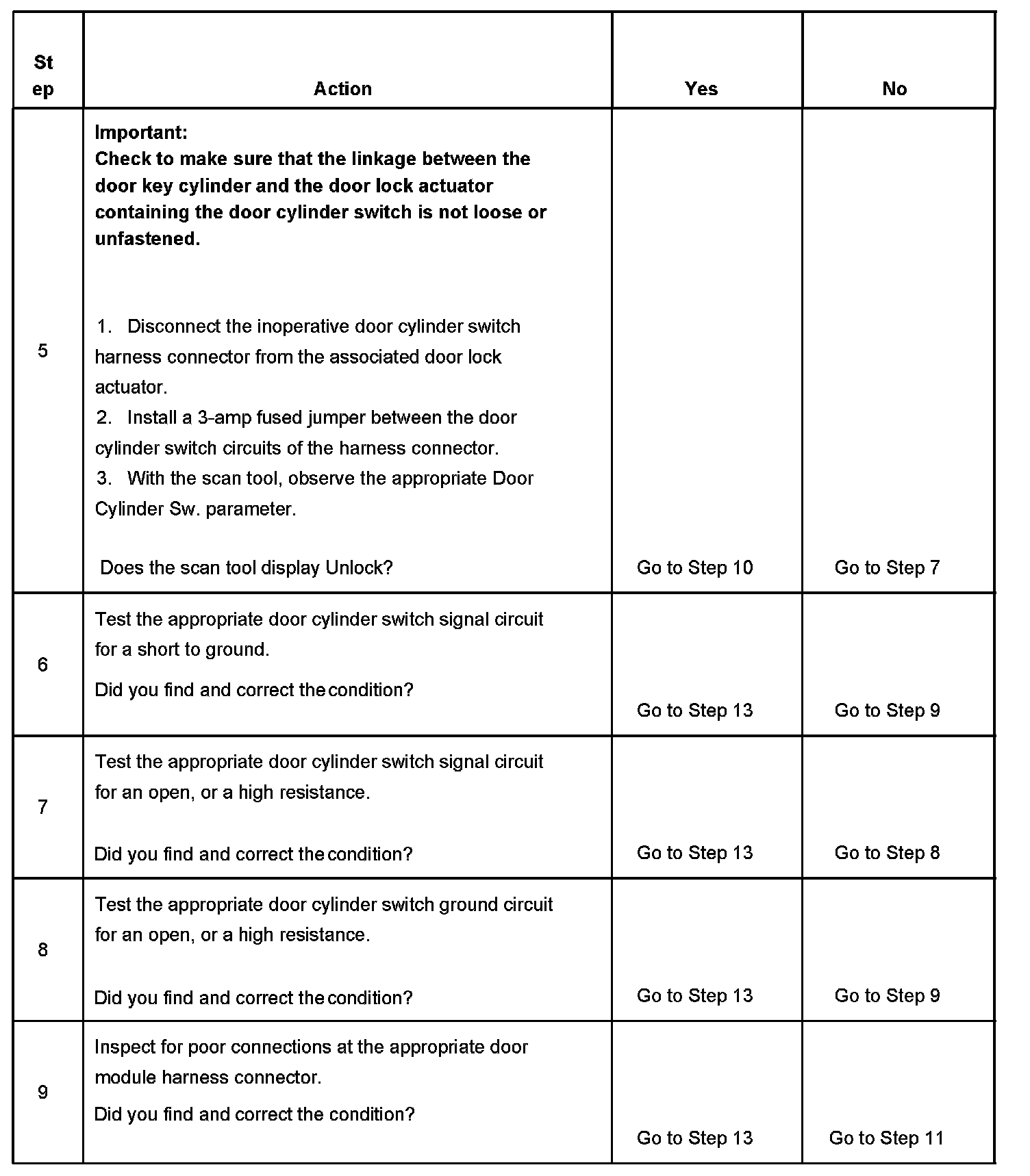

Steps 5-9:

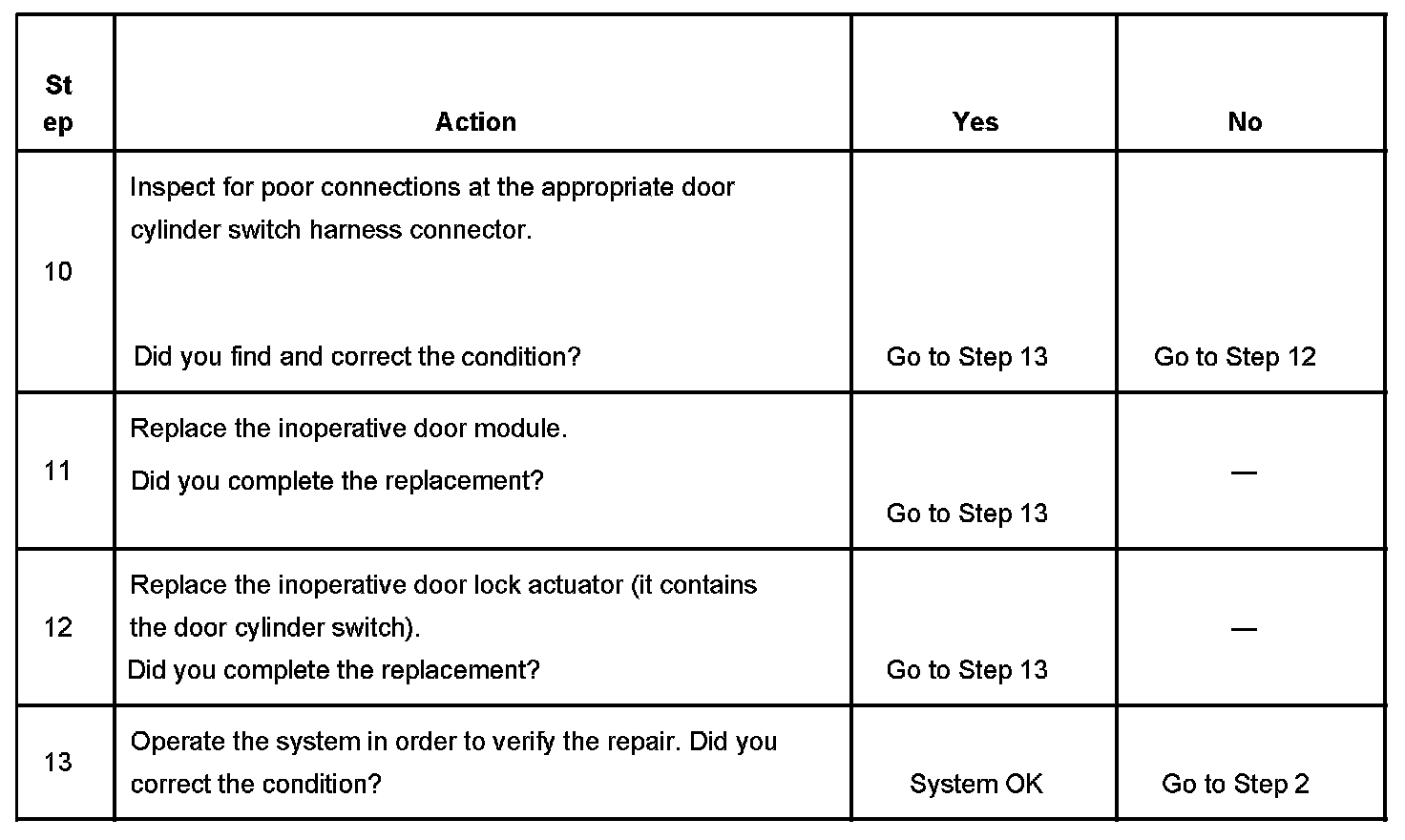

Steps 10-13:
