Heated Mirrors - Inoperative

HEATED MIRRORS INOPERATIVE

TEST DESCRIPTION

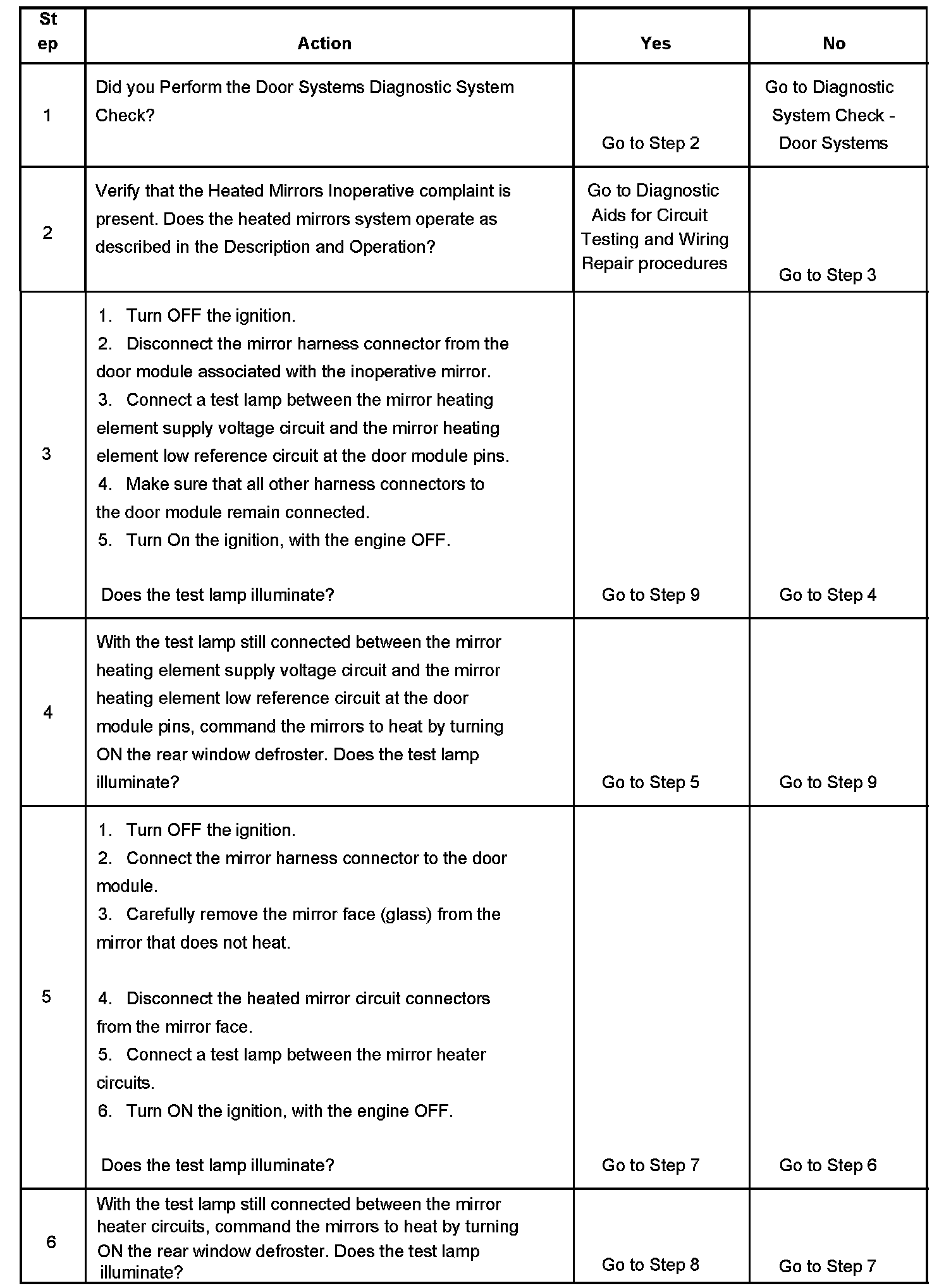

Steps 1-6:

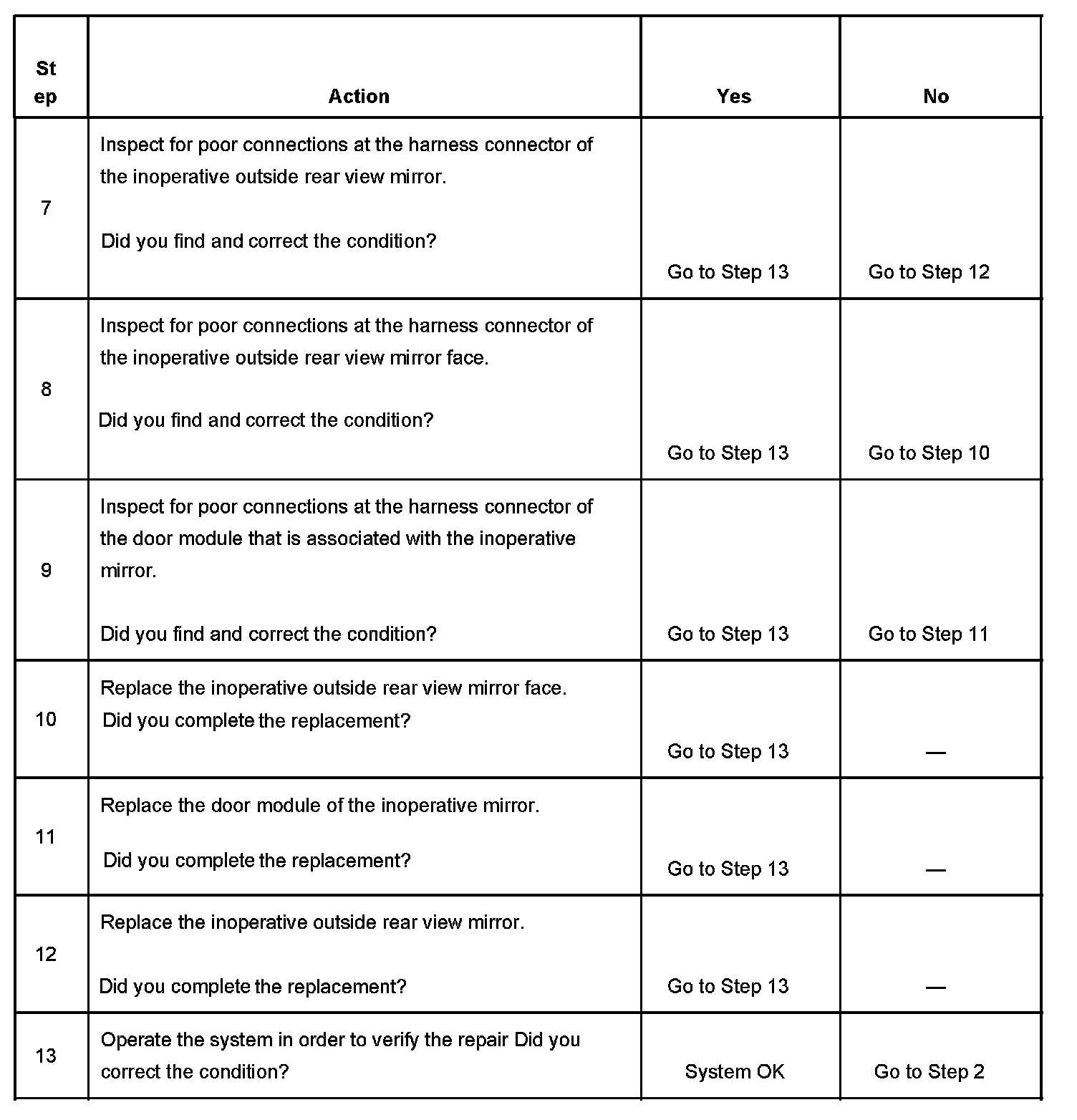

Steps 7-13:

The Numbers below refer to step numbers on the diagnostic table.
3. Determines if the mirror heating element supply voltage circuit is shorted to battery positive voltage within the module.
5. Determines if the mirror heating element supply voltage circuit of the outside rearview mirror harness is shorted to battery positive voltage.
