Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Output Controls

Scan Tool Output Controls

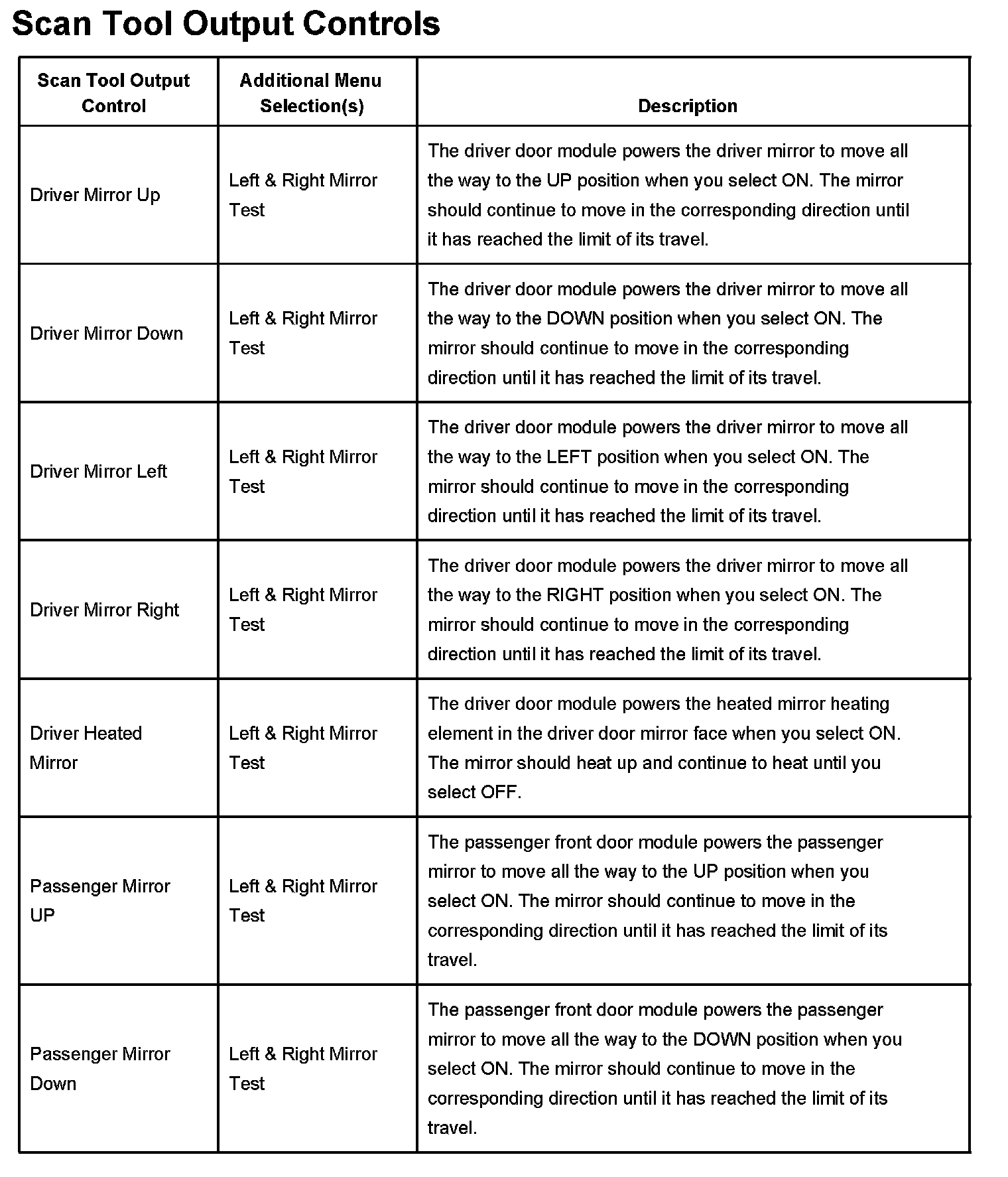

Scan Tool Output Controls Part 1:

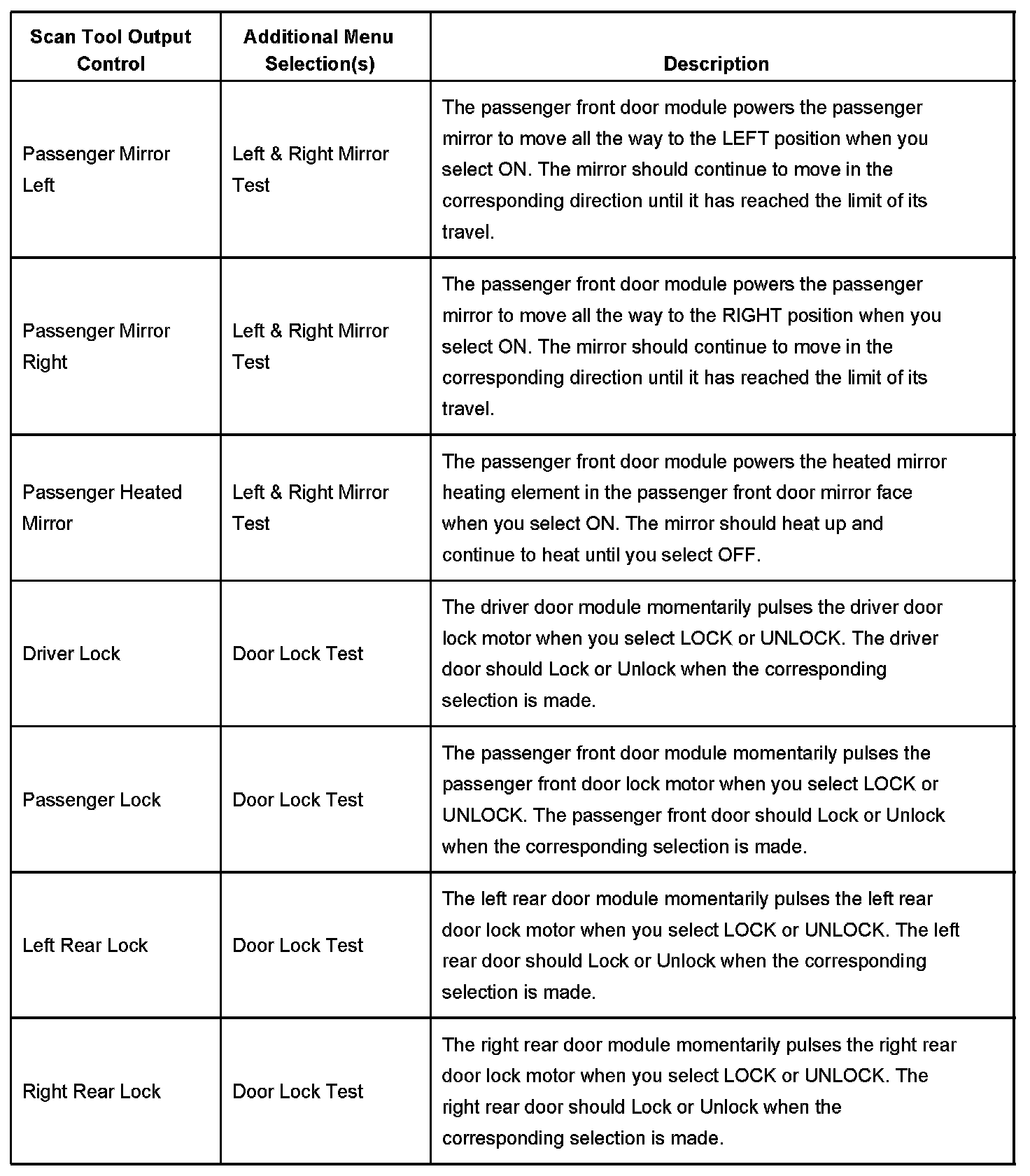

Scan Tool Output Controls Part 2:

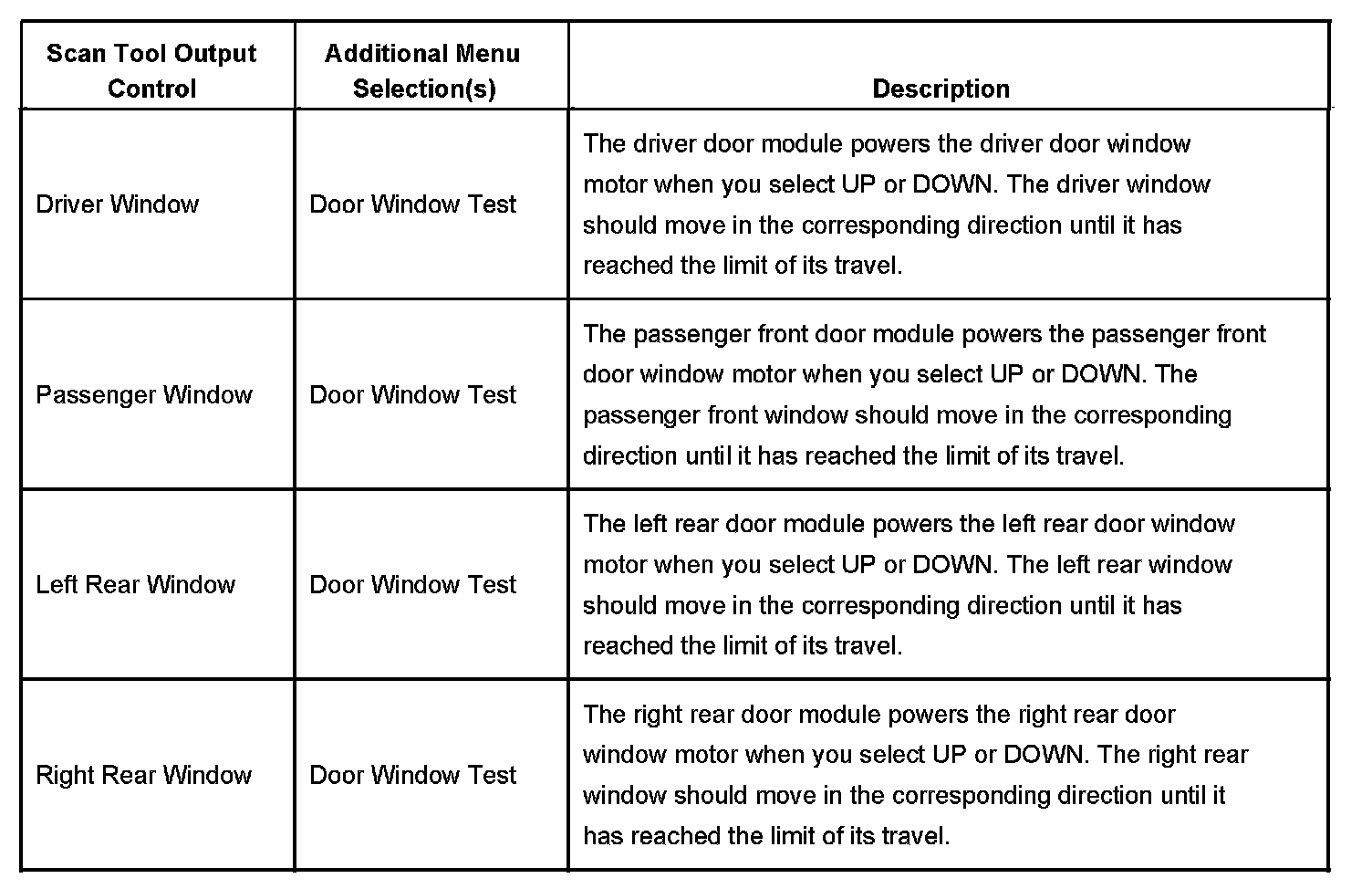

Scan Tool Output Controls Part 3:
