Fascia Grille Replacement - Front Bumper - Lower

Fascia Grille Replacement - Front Bumper - Lower

Removal Procedure

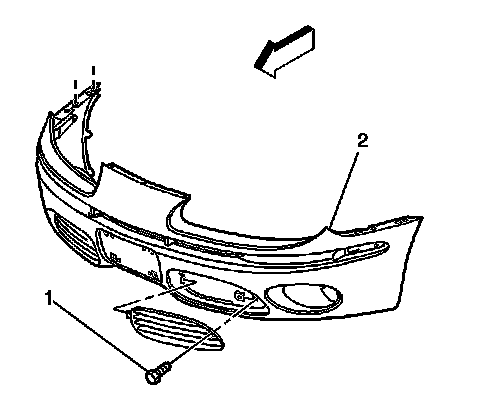

1. Remove the bolt (1) retaining the outboard edge of the front bumper fascia lower grille to the front bumper fascia (2).
2. Pull the outer edge of the front bumper fascia lower grille forward and outboard to remove.



Installation Procedure





1. Insert the tab on the grille into the slot in the fascia (2).
2. Install the outboard edge of the grille to the fascia (2).

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the bolt (1) to secure the grille to the fascia.

Tighten the bolt, (1) to 4 N.m (35 lb in).
