Speaker Replacement - Rear

SPEAKER REPLACEMENT - REAR

REMOVAL PROCEDURE




1. Lower the rear compartment trim. Refer to Compartment Trim Panel Replacement - Rear in Trunk/Liftgate.

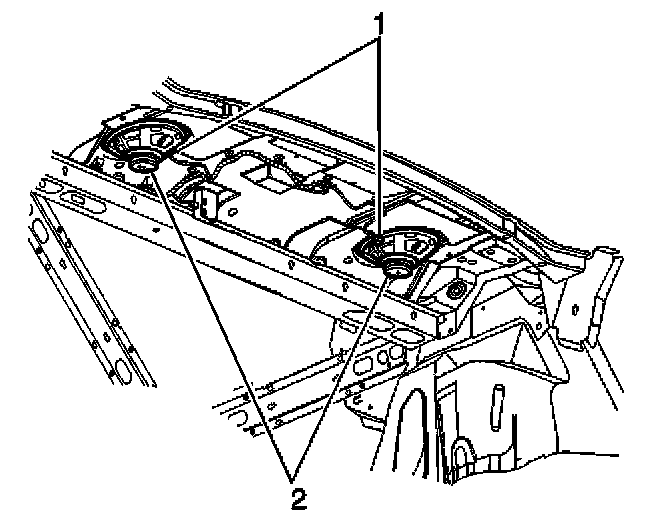

2. Disconnect the speaker electrical connectors (1).
3. Remove the rear shelf trim panel.




4. Remove the rear speaker fasteners.
5. Remove the rear speakers from the vehicle.

INSTALLATION PROCEDURE

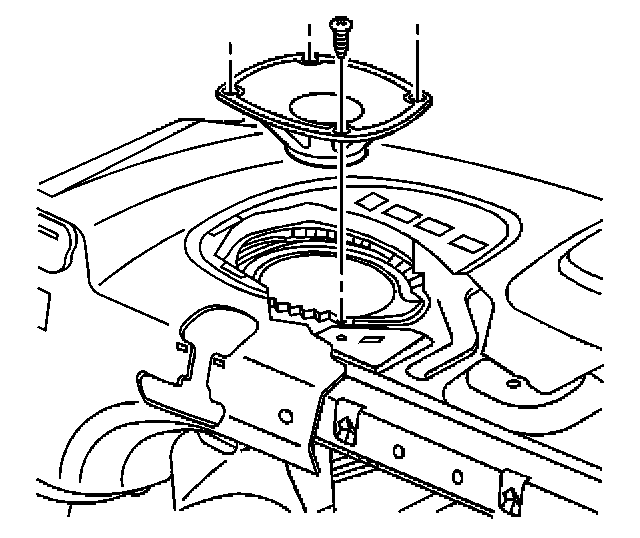

1. Position the rear speaker into the opening in the rear shelf.
2. Install the fasteners in order to secure the rear speakers to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the speaker fasteners to 2 N.m (18 lb in).

3. Install the rear shelf trim panel.

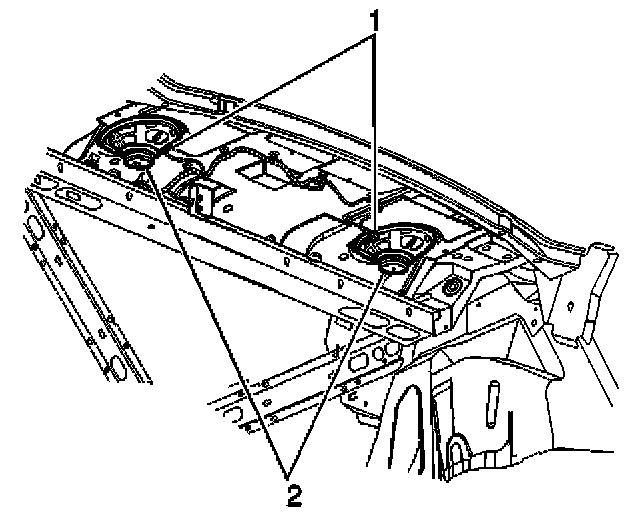

4. Install the speaker electrical connectors (1).
5. Install the rear compartment trim.
