Speaker Replacement - Front Upper

SPEAKER REPLACEMENT - FRONT UPPER

REMOVAL PROCEDURE
1. Remove the upper door trim panel.

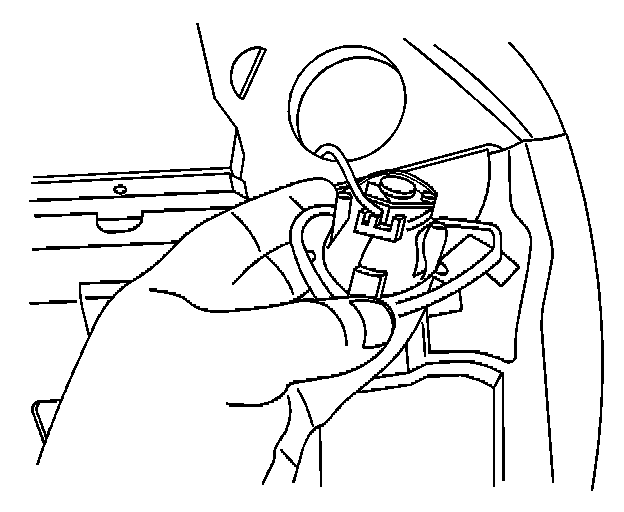

2. Disconnect the upper door speaker electrical connector from the door harness.




3. Remove the upper door speaker/grille assembly by gently prying it from the upper door trim panel.

INSTALLATION PROCEDURE




1. Install the upper door speaker/grille assembly into the upper door trim panel.
2. Ensure that the speaker grille is properly seated in the upper door trim panel.
3. Connect the upper door speaker electrical connector.
4. Install the upper door trim panel.
