Radio Replacement (With RPO Code UM8)

RADIO REPLACEMENT (WITH RPO CODE UM8)

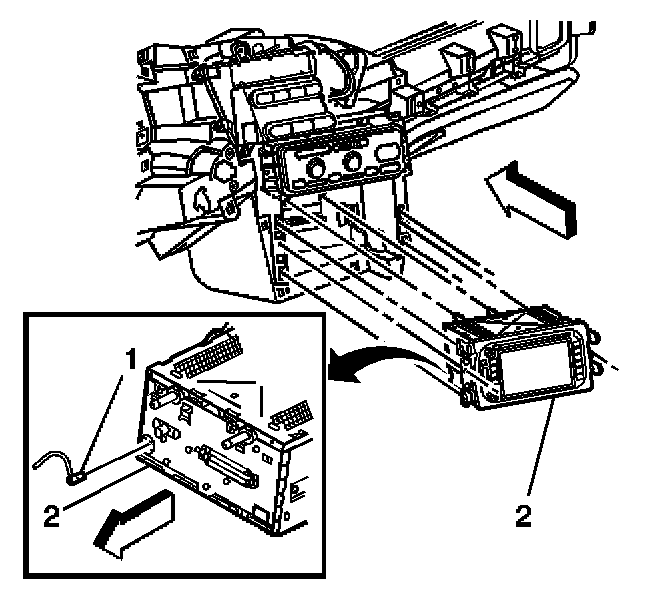

REMOVAL PROCEDURE




1. Remove the instrument panel center trim panel.
2. Depress the spring clip retainers at the sides of the receiver (2).
3. Pull the receiver (2) straight out to remove.
4. Disconnect the global positioning sensor antenna lead (1).

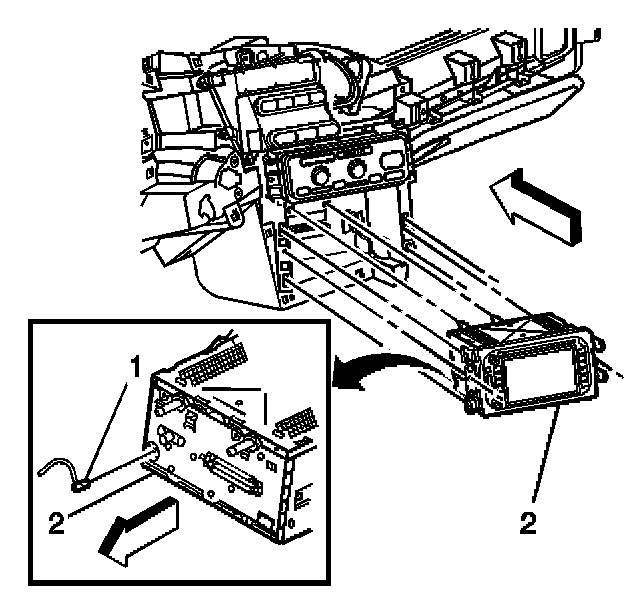

INSTALLATION PROCEDURE




1. Connect the global positioning sensor antenna lead (1).
2. Install the receiver (2) into the instrument panel.
3. Ensure the spring clips are fully engaged.
4. Install the instrument panel center trim panel.
