Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Compact Disc Player (CD) >> CD Changer >> Diagrams

CD Changer: Diagrams

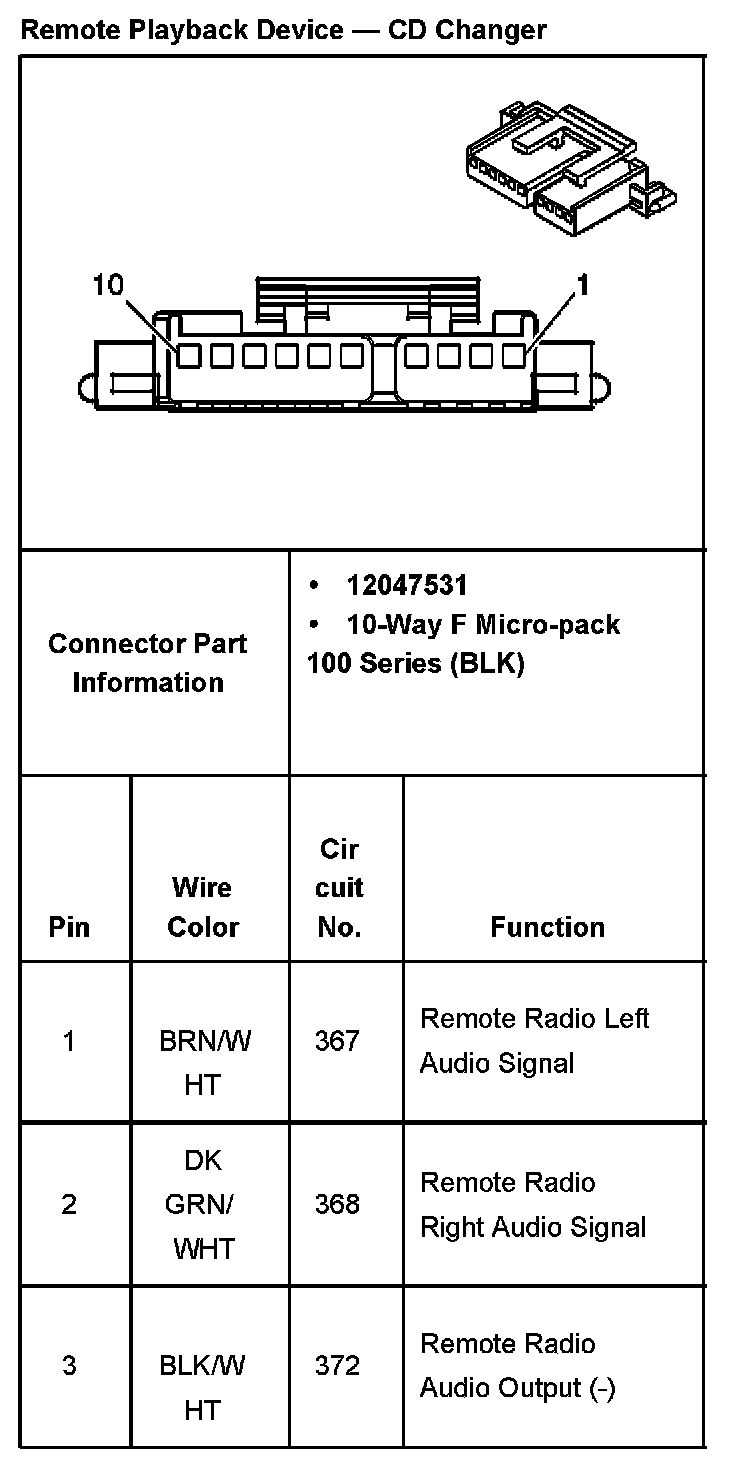

Remote Playback Device-CD Changer Part 1:

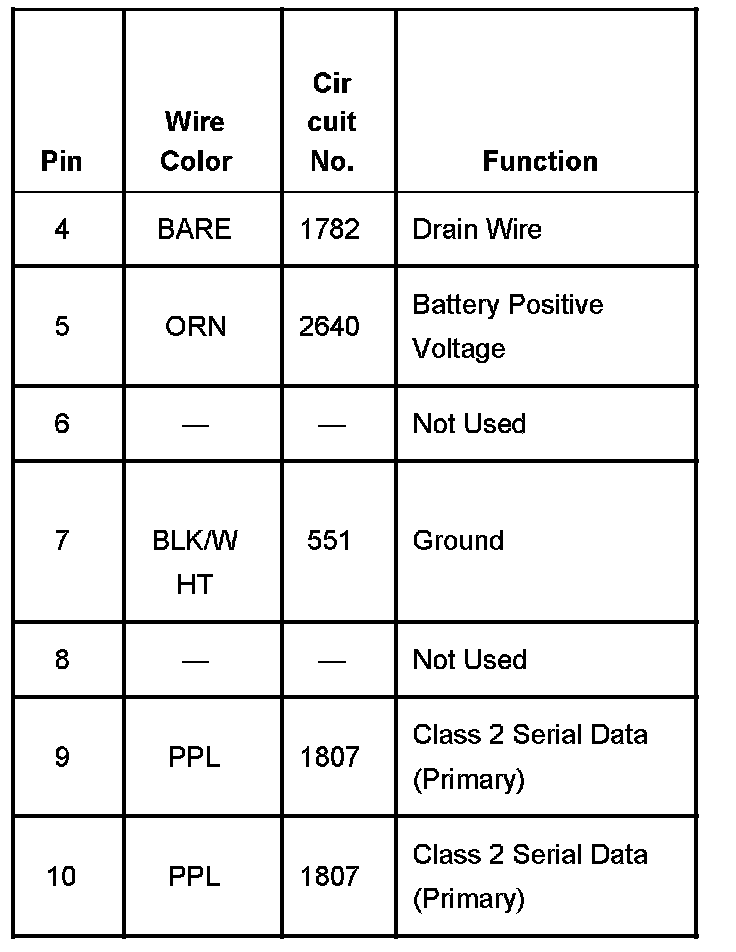

Remote Playback Device-CD Changer Part 2:
