Navigation Antenna Replacement

NAVIGATION ANTENNA REPLACEMENT

REMOVAL PROCEDURE
1. Remove the rear seat back.
2. Remove the forward rear compartment trim.

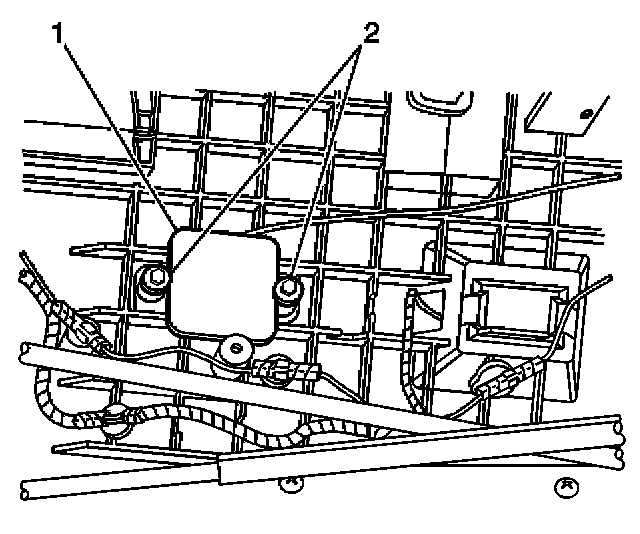

3. Remove the Global Positioning System (GPS) antenna module push-in fasteners (2).
4. Lower the GPS module (1) to the rear compartment floor.
5. Disconnect the GPS antenna coaxial cable connector from the Communication Interface Module.
6. Disengage the coaxial cable to the rear shelf carrier retainers.
7. Remove the GPS antenna from the rear shelf carrier.

INSTALLATION PROCEDURE




1. Install the Global Positioning System (GPS) antenna coaxial cable into the retainers in the rear shelf carrier.
2. Close the cable retainers.
3. Secure the GPS antenna module (1) to the rear shelf carrier with the push-in fasteners (2).
4. Connect the GPS antenna coaxial cable connector to the Communication Interface Module.
5. Install the forward rear compartment trim.
6. Install the rear seat back.
