Does Not Disarm With Key Lock - Content Theft Deterrent (CTD)

CONTENT THEFT DETERRENT (CTD) DOES NOT DISARM WITH KEY LOCK

DIAGNOSTIC AIDS
For Diagnostic Aids, refer to Testing for Intermittent and Poor Connections and Testing for Electrical Intermittents in Diagnostic Aids.

TEST DESCRIPTION

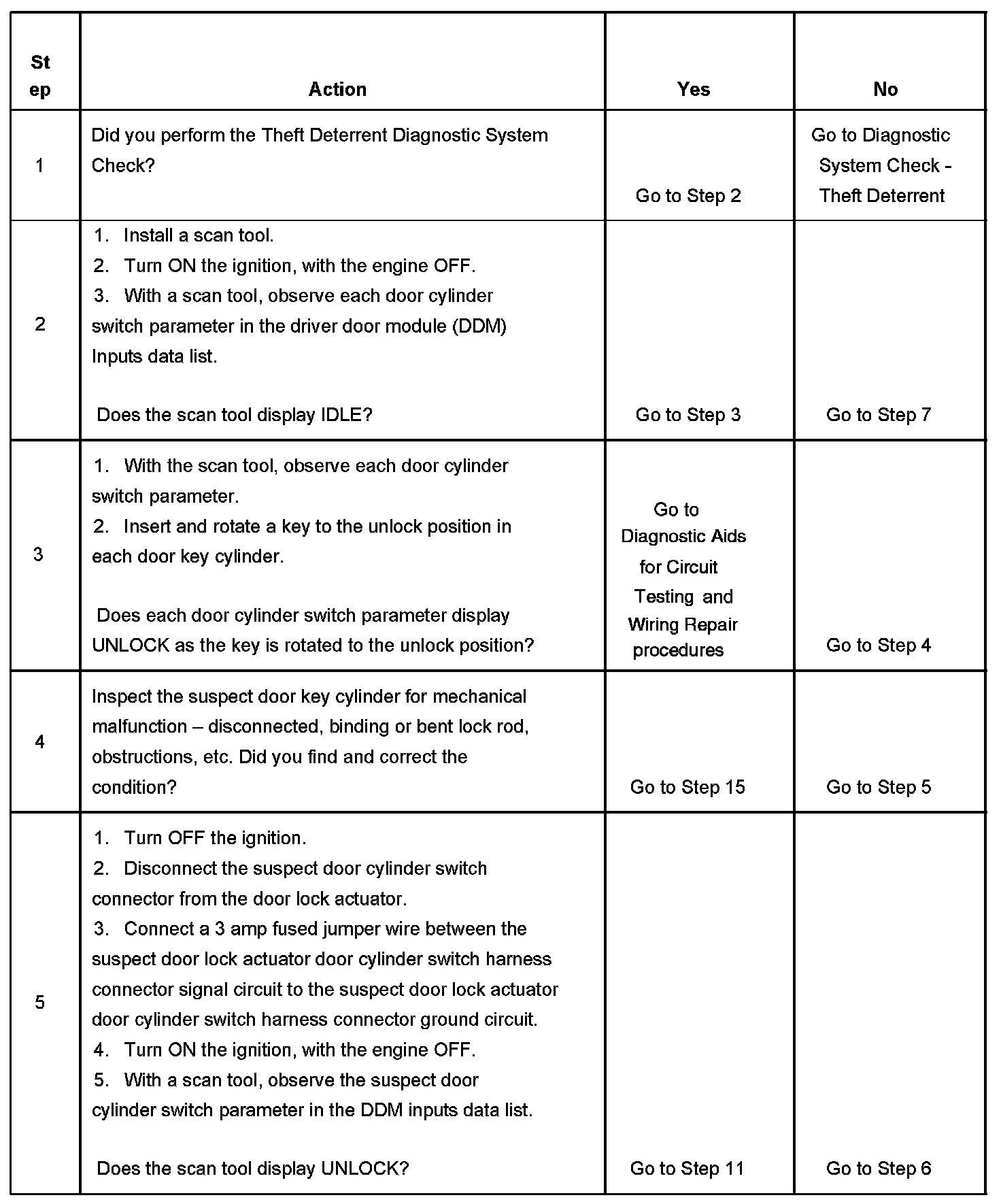

Steps 1-5:

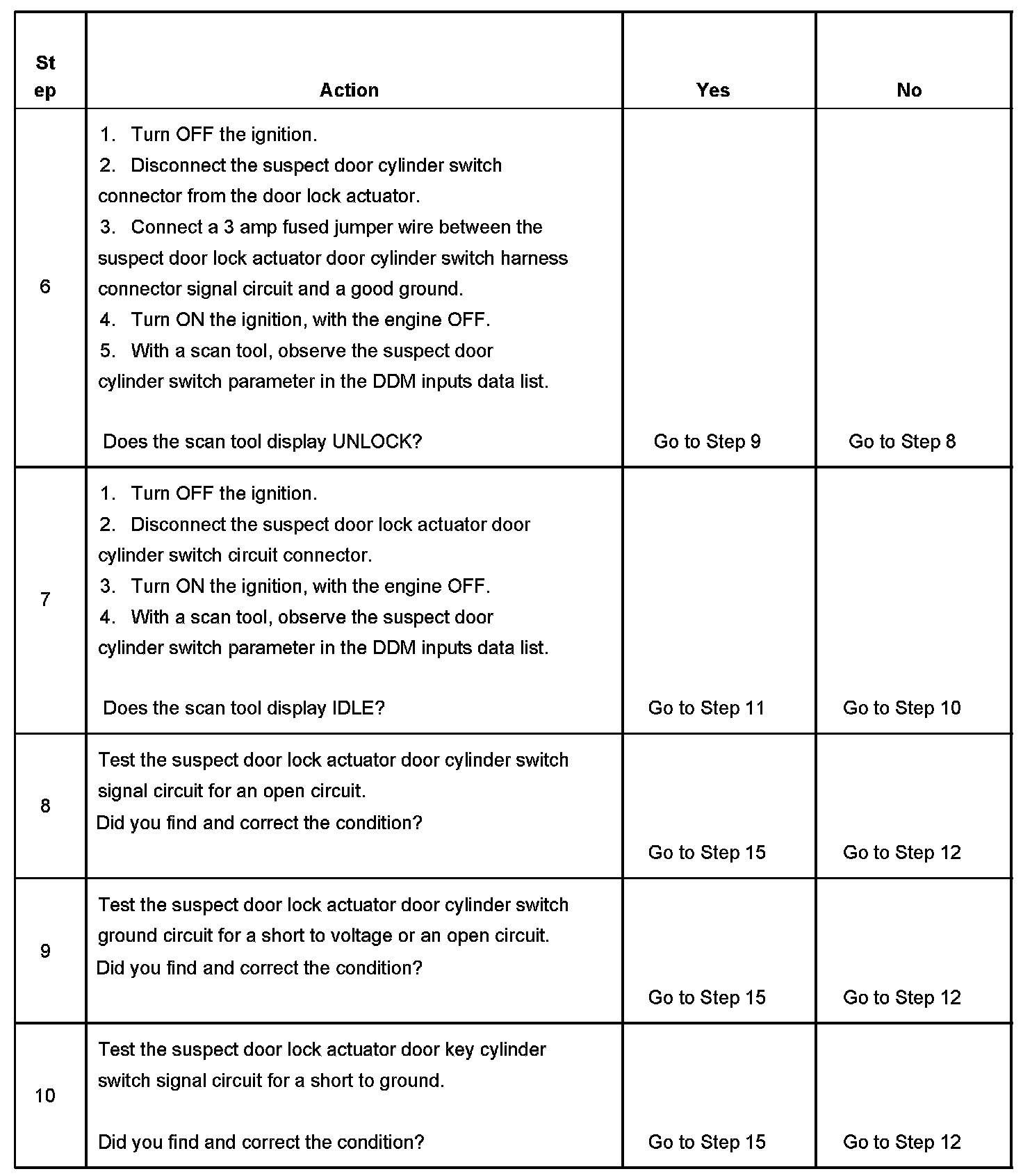

Steps 6-10:

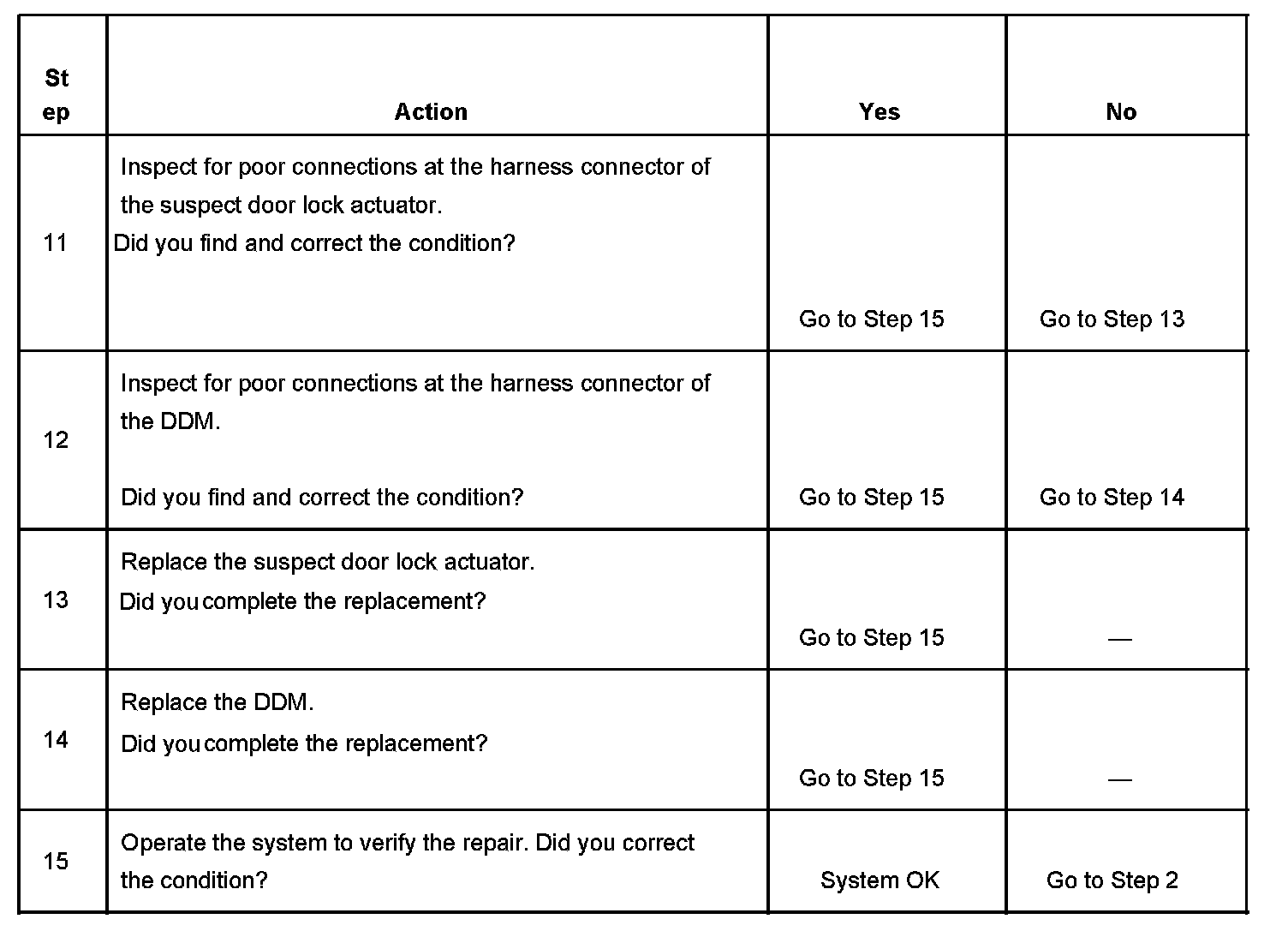

Steps 11-15:

The number below refer to the step number on the diagnostic table.
3. Scan tool should read the normal state operation.
