Dash Integration Module (DIM)

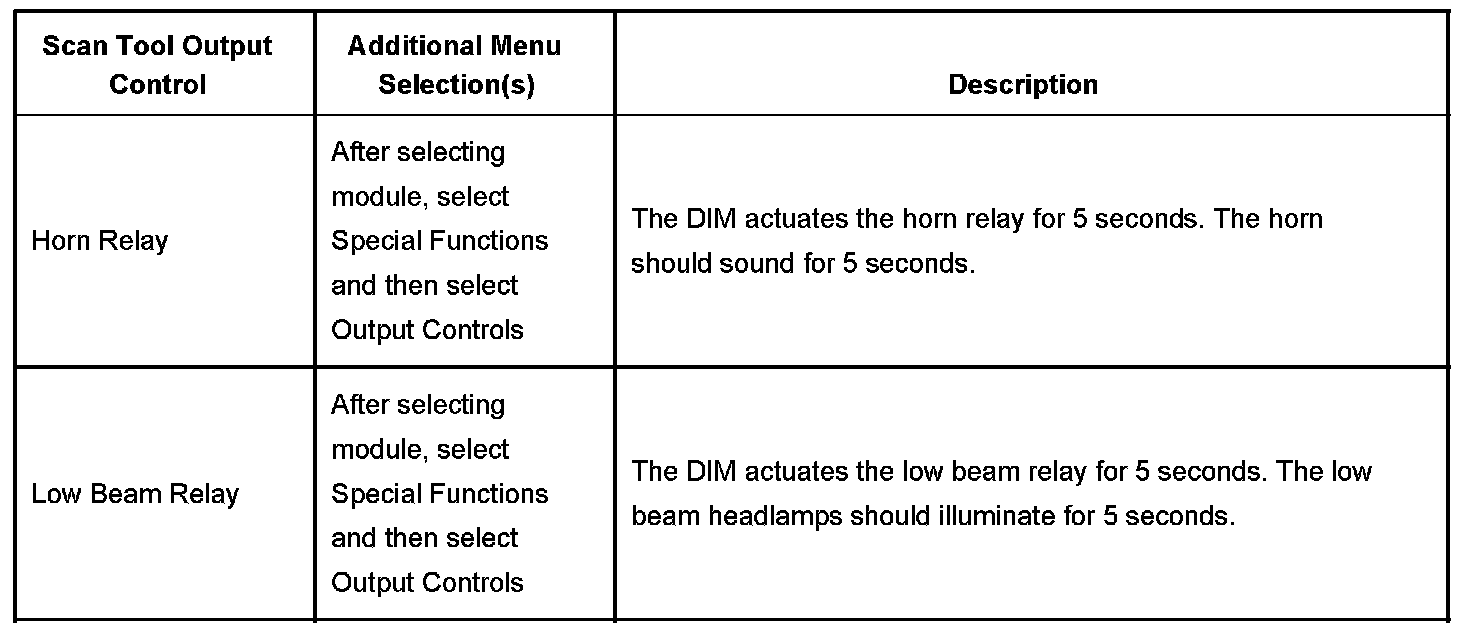

Dash Integration Module Scan Tool Output Controls Part 1:

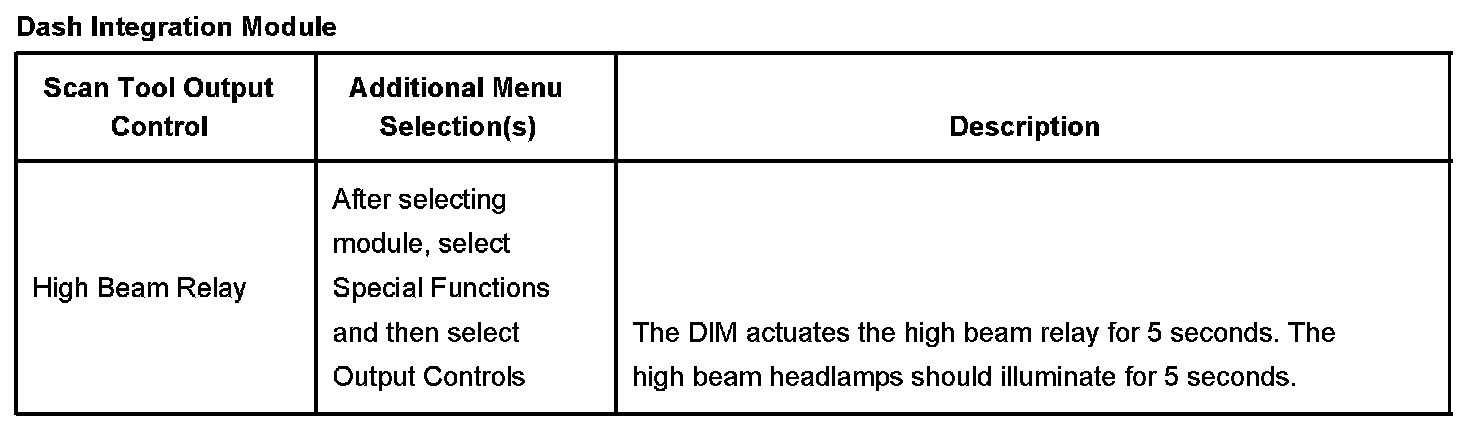

Dash Integration Module Scan Tool Output Controls Part 2:
