Antenna Extension Cable Replacement
ANTENNA EXTENSION CABLE REPLACEMENTREMOVAL PROCEDURE
1. Remove the radio.
2. Remove the right side windshield garnish molding.
3. Remove the upper instrument panel trim pad.
4. Disconnect the antenna coaxial cable from the radio cavity by sliding the cable connection upwards out of the retainer.

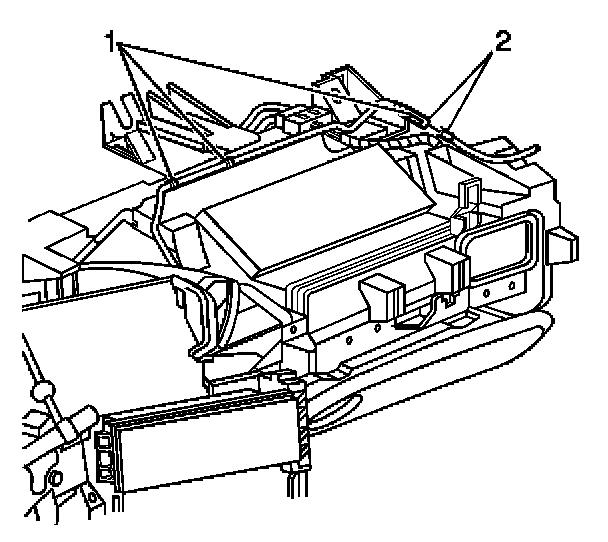

5. Remove the remaining cable clips (1) from the instrument panel support.
6. Disconnect the coaxial cable connector (2).
7. Remove the antenna extension cable from the vehicle.
INSTALLATION PROCEDURE
1. Position the antenna extension to the vehicle.

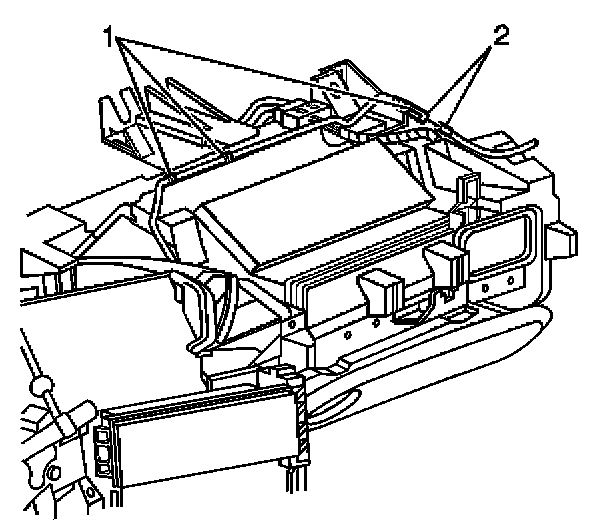

2. Connect the coaxial cable connectors (2).
3. Install the cable clips (1) to the instrument panel support.
4. Insert the cable connector into the retainer in the radio cavity.
5. Install the upper instrument panel trim pad.
6. Install the radio.
7. Install the right side windshield garnish molding.
