Antenna Cable Replacement

ANTENNA CABLE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the right side windshield garnish molding.
2. Remove the center pillar trim panel.
3. Remove the right rear upper quarter trim panel.
4. Remove the upper instrument panel trim pad.
5. Lower the headliner in order to gain access to the coaxial cable harness along the right side of the vehicle. Refer to Headliner Replacement (with Sunroof) Headliner Replacement (without Sunroof) in Interior Trim.

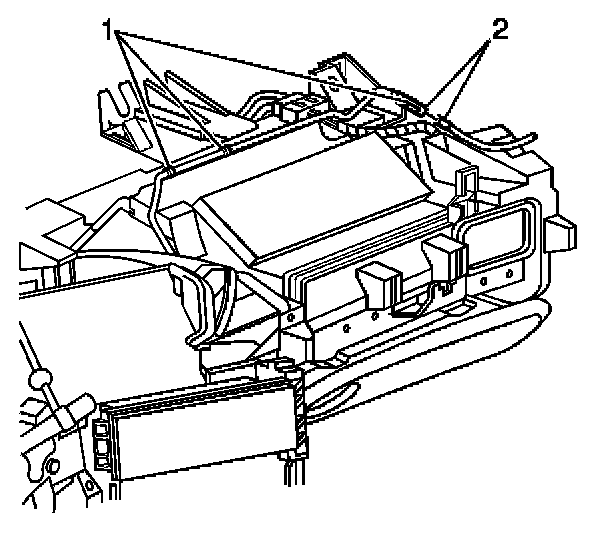

6. Disconnect the coaxial cable connectors (2).

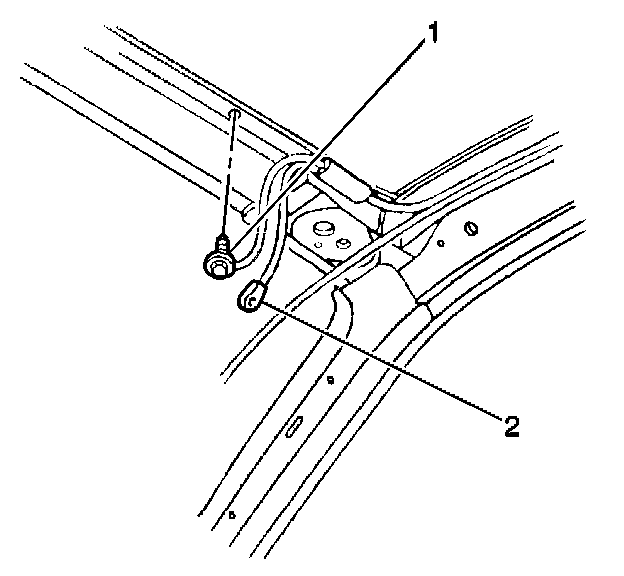

7. Disconnect the ground cable (1) from the roof beam.
8. Disconnect the antenna connection (2) at the windshield.

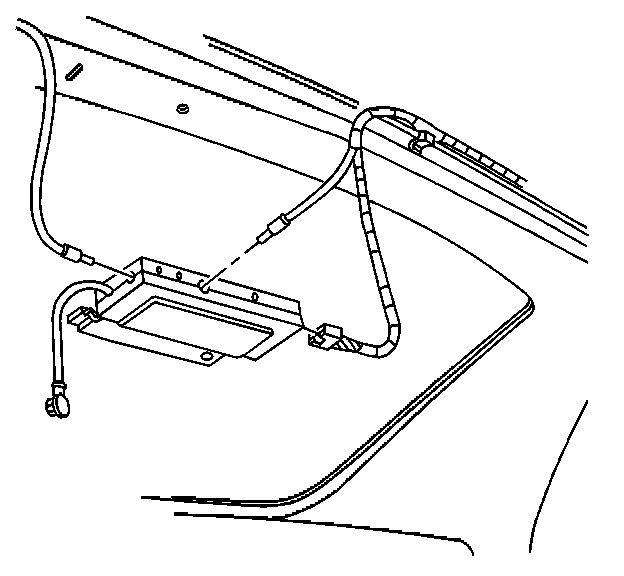

9. Disconnect the coaxial cable from the antenna module located on the rear roof beam.

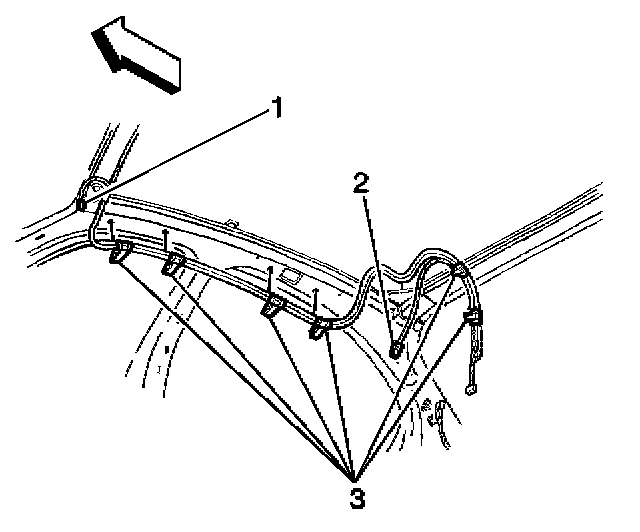

10. Disconnect the power lead connection (2).
11. Remove the rosebud clips (3) from the roof beams.
12. Remove the coaxial cable harness from the vehicle.

INSTALLATION PROCEDURE

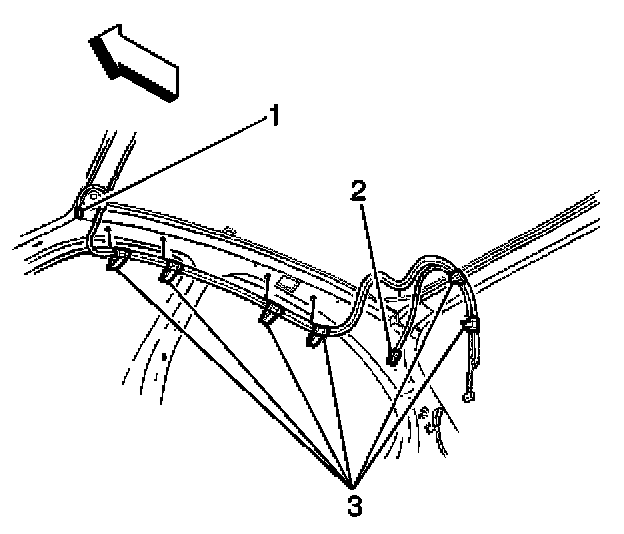

1. Install the coaxial cable harness to the roof beams with the rosebud clips (3).
2. Connect the power lead connectors (2).




3. Install the antenna connection (2) at the windshield.

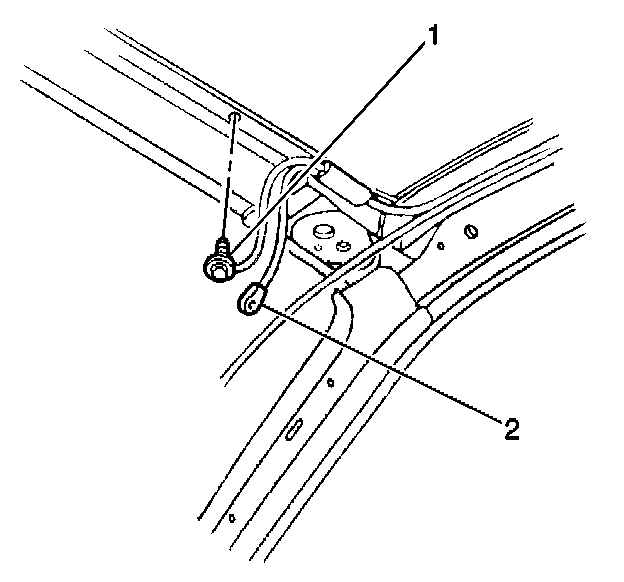

4. Connect the ground connector (1) to the roof beam.

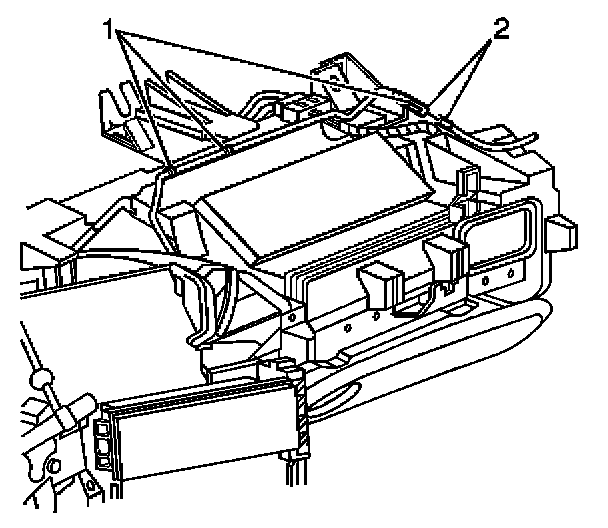

5. Connect the coaxial cable connectors (2).

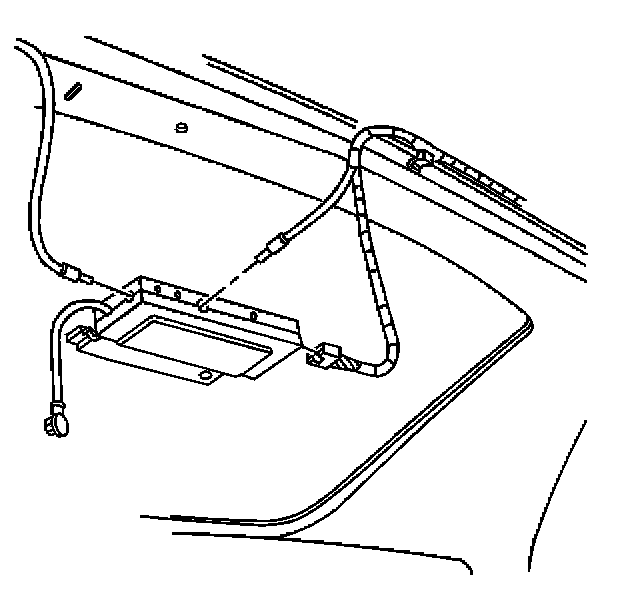

6. Install the coaxial cable connections to the antenna module.
7. Install the upper instrument panel trim pad.
8. Install the headliner.
9. Install the upper rear quarter trim panel.
10. Install the right side windshield garnish molding.
