P0719

DTC P0719

Steps 1-8:

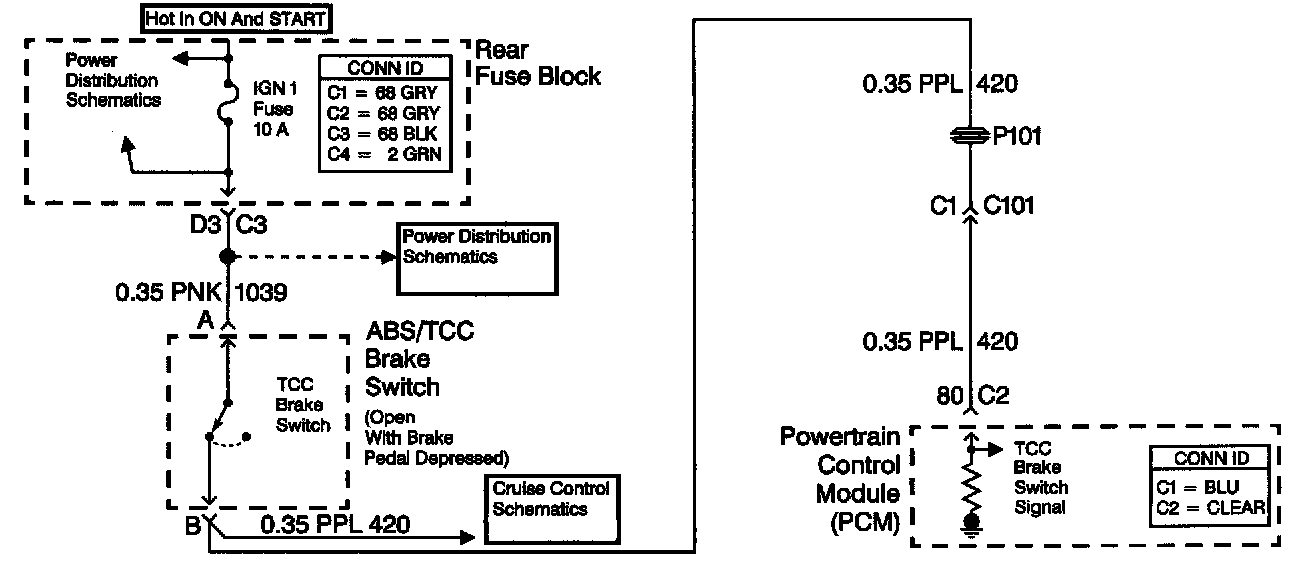

Circuit Description
The torque converter clutch (TCC) brake switch is used to indicate the status of the brake pedal, applied or released, to the PCM. The normally-closed TCC brake switch supplies a battery voltage input to the PCM. Applying the brake pedal opens the switch, interrupting voltage to the PCM. Releasing the brake pedal resumes voltage to the PCM. When the PCM senses 0 volts at the TCC brake switch input, the PCM de-energizes the TCC solenoid valve.
If the PCM detects an open TCC brake switch, stuck ON, during accelerations, then DTC P0719 sets. DTC P0719 is a type C DTC.

Conditions for Running the DTC
^ No VSS DTCs P0502 or P0503.
^ DTC P0719 has not passed this ignition cycle.

Conditions for Setting the DTC
The TCC brake switch input is at 0 volts for 15 minutes and the following conditions occur eight times without a status change on the TCC brake input:
^ The vehicle speed is less than 8 km/h (5 mph).
^ The vehicle accelerates to 32 km/h (20 mph) within 2 - 6 seconds.
^ Then the vehicle speed remains above 32 km/h (20 mph) for 6 seconds.

Action Taken When the DTC Sets
^ The PCM does not illuminate the malfunction indicator lamp (MIL).
^ The PCM disregards the TCC brake switch input for TCC scheduling. The PCM then uses throttle position and vehicle speed inputs to determine TCC application and release. Use of these inputs may result in a noticeable harsh apply or abrupt release of the TCC.
^ The PCM records the operating conditions when the Conditions for Setting the DTC are met. The PCM stores this information as Failure Records.
^ The PCM stores DTC P0719 in PCM history.

Conditions for Clearing the DTC
^ The TCC brake switch input indicates ignition voltage for 2 seconds.
^ A scan tool can clear the DTC.
^ The PCM clears the DTC from PCM history if the vehicle completes 40 warm-up cycles without a non-emission-related diagnostic fault occurring.
^ The PCM cancels the DTC default actions when the fault no longer exists and the DTC passes.

Test Description

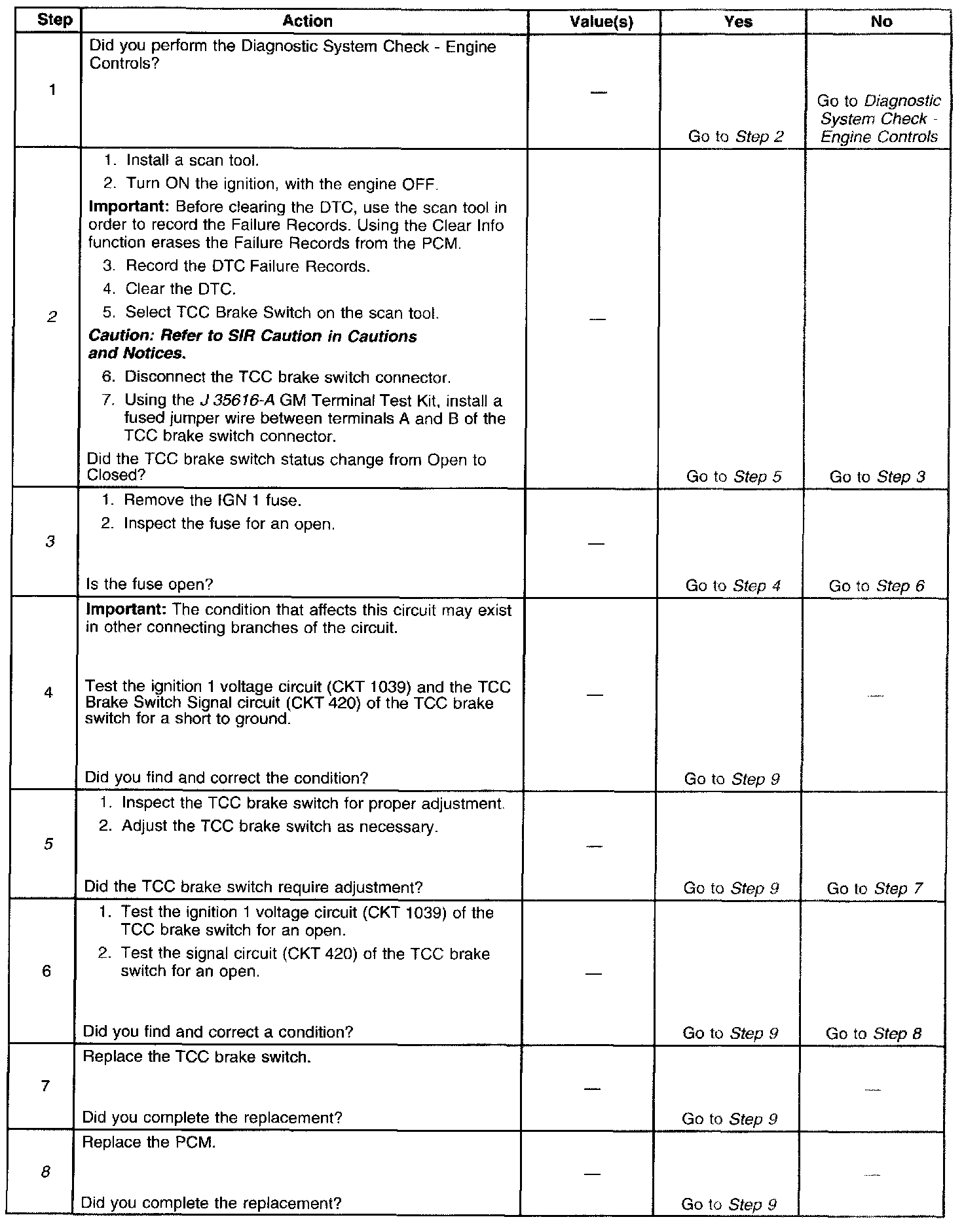

The numbers below refer to the step numbers on the diagnostic table.
2. Disconnecting the brake switch connector, jumping the circuit, and observing a status change, isolates the brake switch as the source of the DTC.
3. If the ignition 1 voltage circuit shorts to ground, the IGN 1 fuse opens.
5. If the brake switch is properly adjusted, then the brake switch must be replaced.
8. Replace the PCM only after you have completed the preceding diagnostic steps.
