P0712

DTC P0712

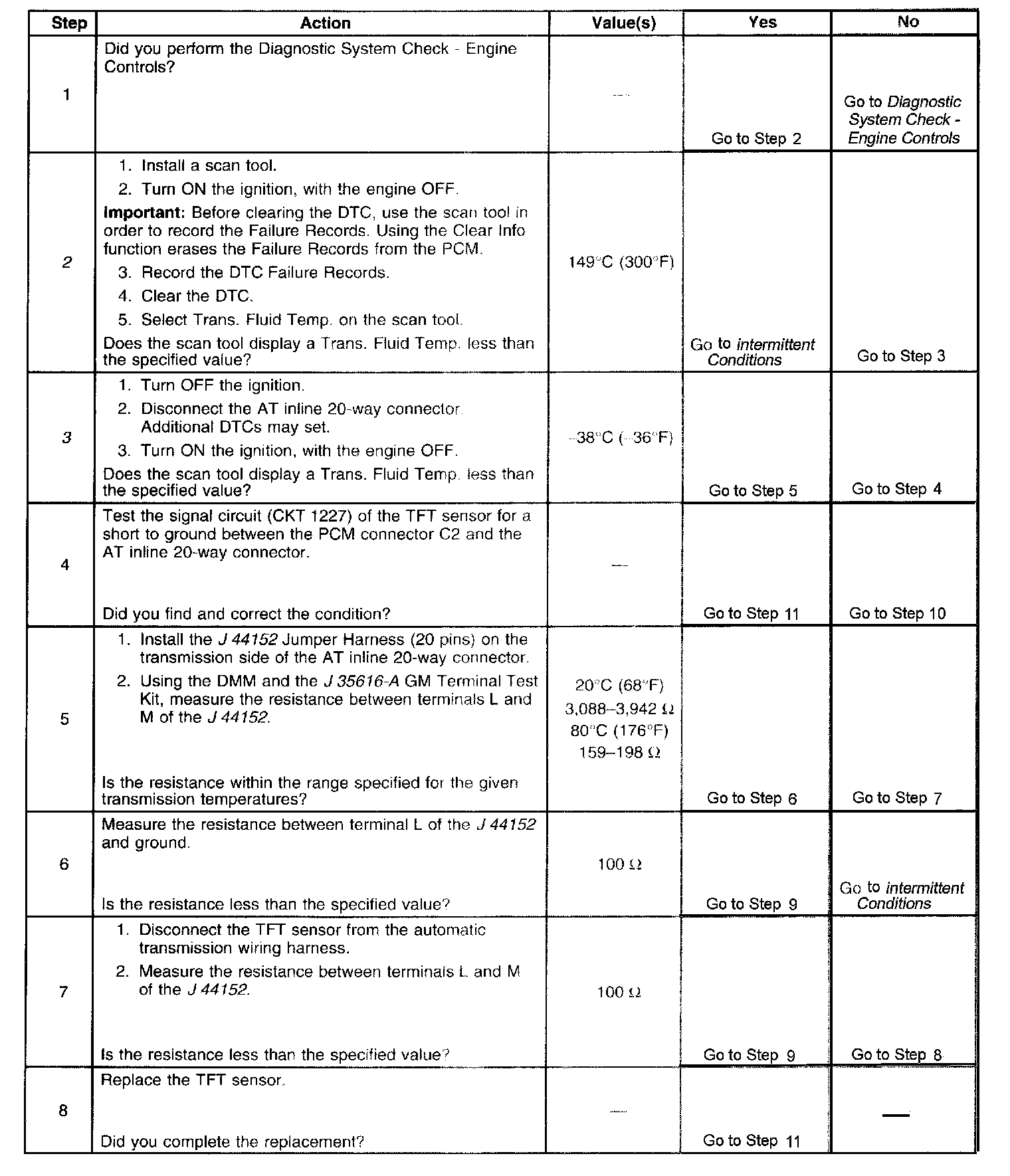

Steps 1-8:

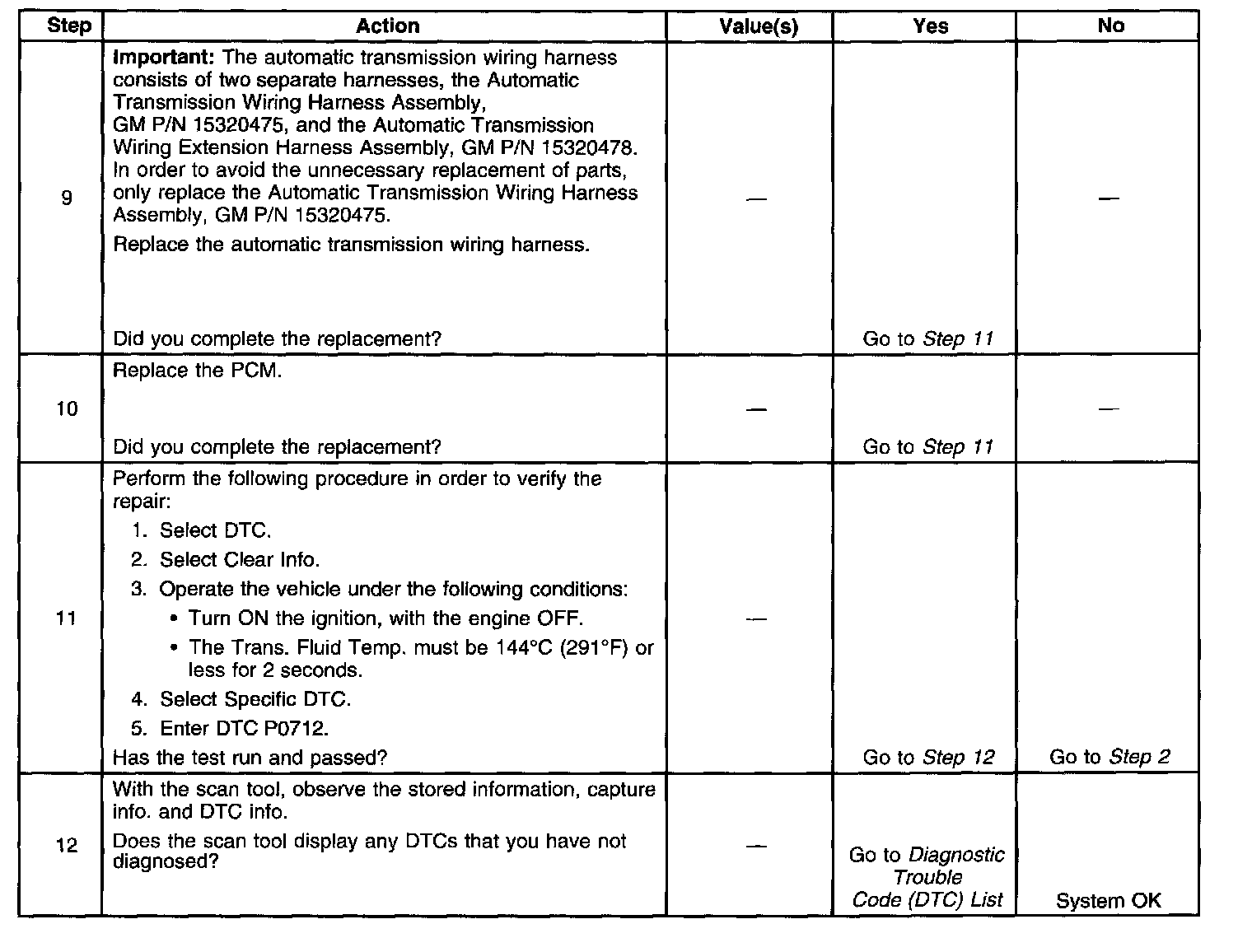

Steps 9-12:

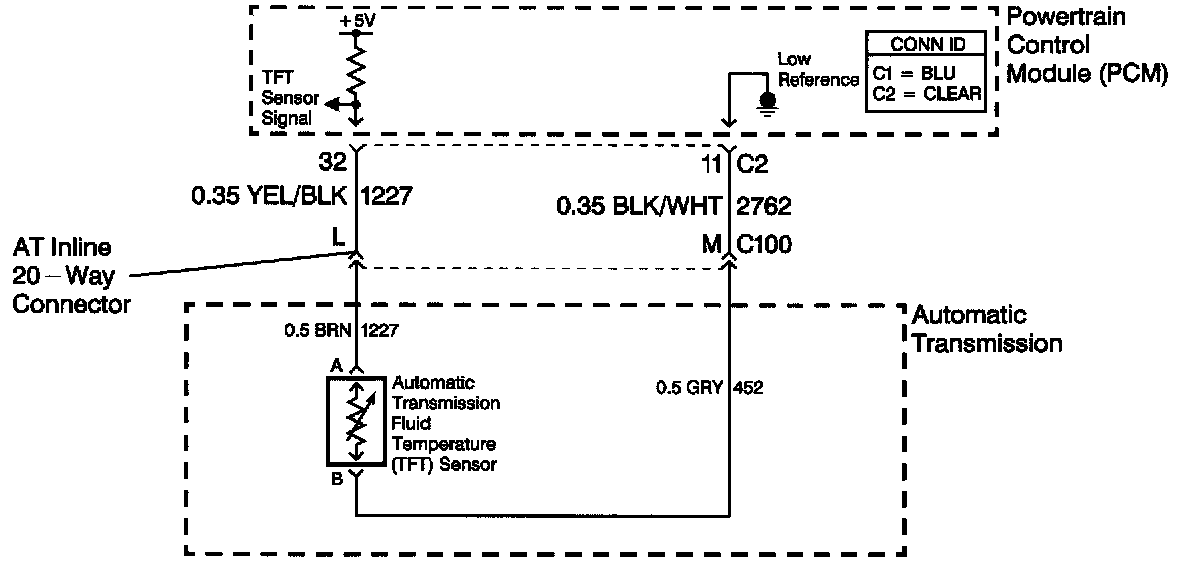

Circuit Description
The automatic transmission fluid temperature (TFT) sensor is a negative coefficient thermistor whose resistance value changes based on temperature. The PCM provides a 5 volt reference to the sensor. A high fluid temperature or a short to ground on the signal circuit results in low signal voltage. The TFT operating range is -40 to +151°C (-40 to +305°F).
If the PCM detects a continuous short to ground in the TFT sensor circuit, then DTC P0712 sets. DTC P0712 is a type C DTC.

Conditions for Running the DTC
The engine run time is greater than 5 seconds.

Conditions for Setting the DTC
The PCM detects a TFT of 149°C (300°F) or greater for 10 seconds.

Action Taken When the DTC Sets
^ The PCM does not illuminate the malfunction indicator lamp (MIL).
^ The PCM calculates a default transmission fluid temperature based on engine coolant temperature, intake air temperature and engine run time.
^ The PCM records the operating conditions when the Conditions for Setting the DTC are met. The PCM stores this information as Failure Records.
^ The PCM stores DTC P0712 in PCM history.

Conditions for Clearing the DTC
^ A scan tool can clear the DTC.
^ The PCM clears the DTC from PCM history if the vehicle completes 40 warm-up cycles without a non-emission-related diagnostic fault occurring.
^ The PCM cancels the DTC default actions when the fault no longer exists and the DTC passes.

Test Description
The numbers below refer to the step numbers on the diagnostic table.
2. This step verifies DTC P0712 by indicating a short to ground. If the scan tool does not display a transmission fluid temperature equal to or greater than 149°C (300°F), then the DTC is intermittent.
3. This step isolates the transmission. If the scan tool displays a transmission fluid temperature less than -38°C (-36°F), then the engine wiring harness is good.
