P0574

DTC P0574

CIRCUIT DESCRIPTION
The cruise control module uses the cruise engaged circuit to request cruise control. If any condition exists that would make cruise control operation undesirable, the PCM will disable cruise control through the cruise inhibit circuit.

CONDITIONS FOR RUNNING THE DTC
- The cruise control is enabled.
- The cruise control is engaged.

CONDITIONS FOR SETTING THE DTC
The PCM detects a vehicle speed greater than 176 km/h (110 mph) with the cruise control still engaged.

ACTION TAKEN WHEN THE DTC SETS
- The PCM disables the cruise control.
- The PCM will not illuminate the malfunction indicator lamp (MIL).
- The PCM will store the conditions which were present when the DTC set, as Fail Records data only.

CONDITIONS FOR CLEARING THE DTC
- The History DTC will clear after 40 consecutive warm-up cycles have occurred without a malfunction.
- The DTC can be cleared by using the scan tool's Clear DTC Information function.

DIAGNOSTIC AIDS
This diagnostic trouble code (DTC) is an information DTC only. The DTC indicates the reason that the PCM disabled the cruise control system. Be sure to verify the conditions that set the DTC with the customer.

Reviewing the Fail Records vehicle mileage since the diagnostic test last failed may assist in diagnosing the condition. The information may help determine how often the condition that set the DTC occurs.

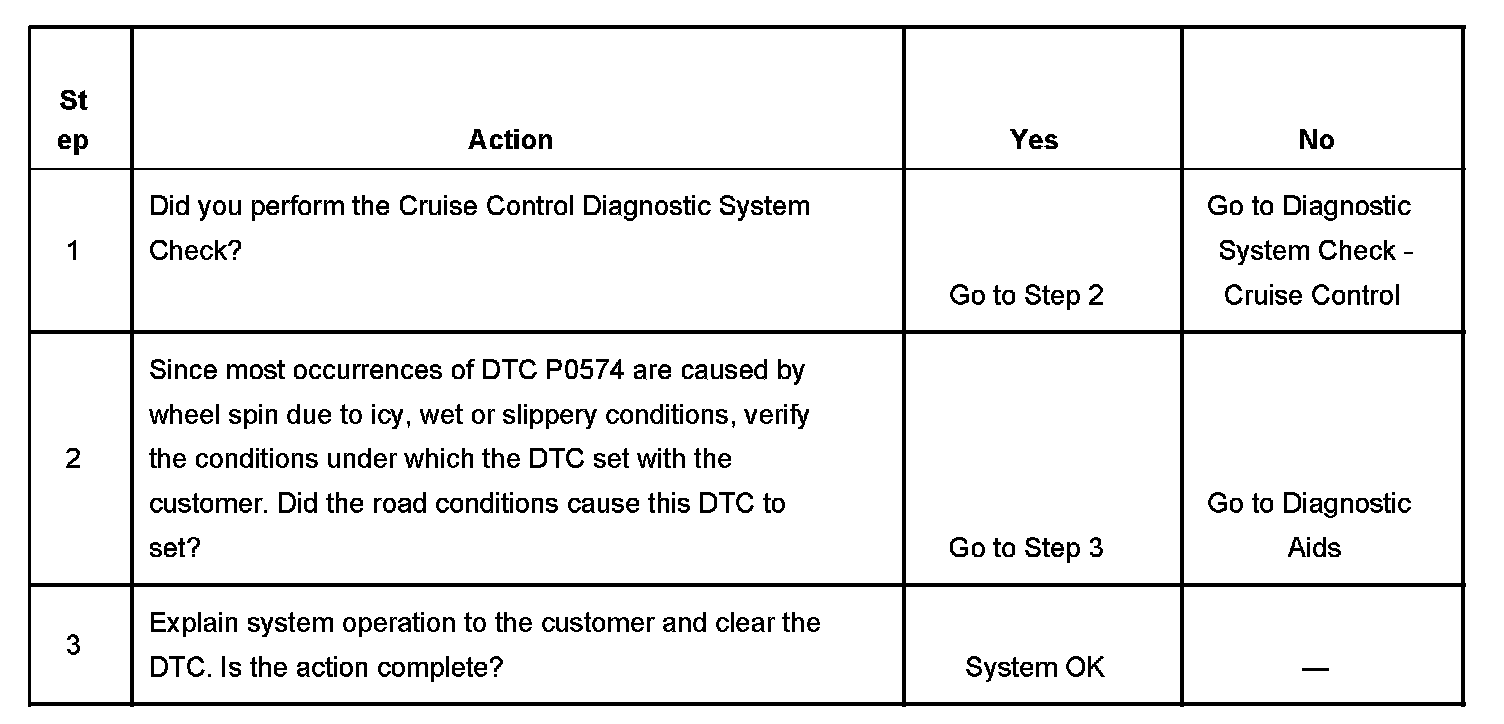

TEST

Steps 1-3:
