P0404

CIRCUIT DESCRIPTION
The exhaust gas recirculation (EGR) valve position sensor is monitored by the powertrain control module (PCM). The 5-volt reference circuit, low reference circuit and the EGR valve position signal circuit are used by the PCM to determine the EGR valve position. The PCM compares the EGR Position Sensor parameter with the Desired EGR Position parameter when the valve is commanded open or closed. If the PCM detects a calibrated difference between the EGR Position Sensor parameter and Desired EGR Position parameter for a calibrated amount of time, DTC P0404 sets.

CONDITIONS FOR RUNNING THE DTC
- The Ignition 1 Signal parameter is between 11-18 volts.
- The EGR valve is commanded to open.

CONDITIONS FOR SETTING THE DTC
- The difference between the EGR Position Sensor parameter and the Desired EGR Position parameter is more than 8 percent.
- The above condition is met for more than 10 seconds

ACTION TAKEN WHEN THE DTC SETS
- The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
- The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
- The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
- Clear the MIL and the DTC with a scan tool.

DIAGNOSTIC AIDS
- Inspect for excessive deposits on the EGR pintle or seat. Inspect for deposits that may interfere with the EGR valve pintle extending completely or cause the pintle to stick.
- If the condition is intermittent, refer to Intermittent Conditions. Intermittent Conditions

TEST

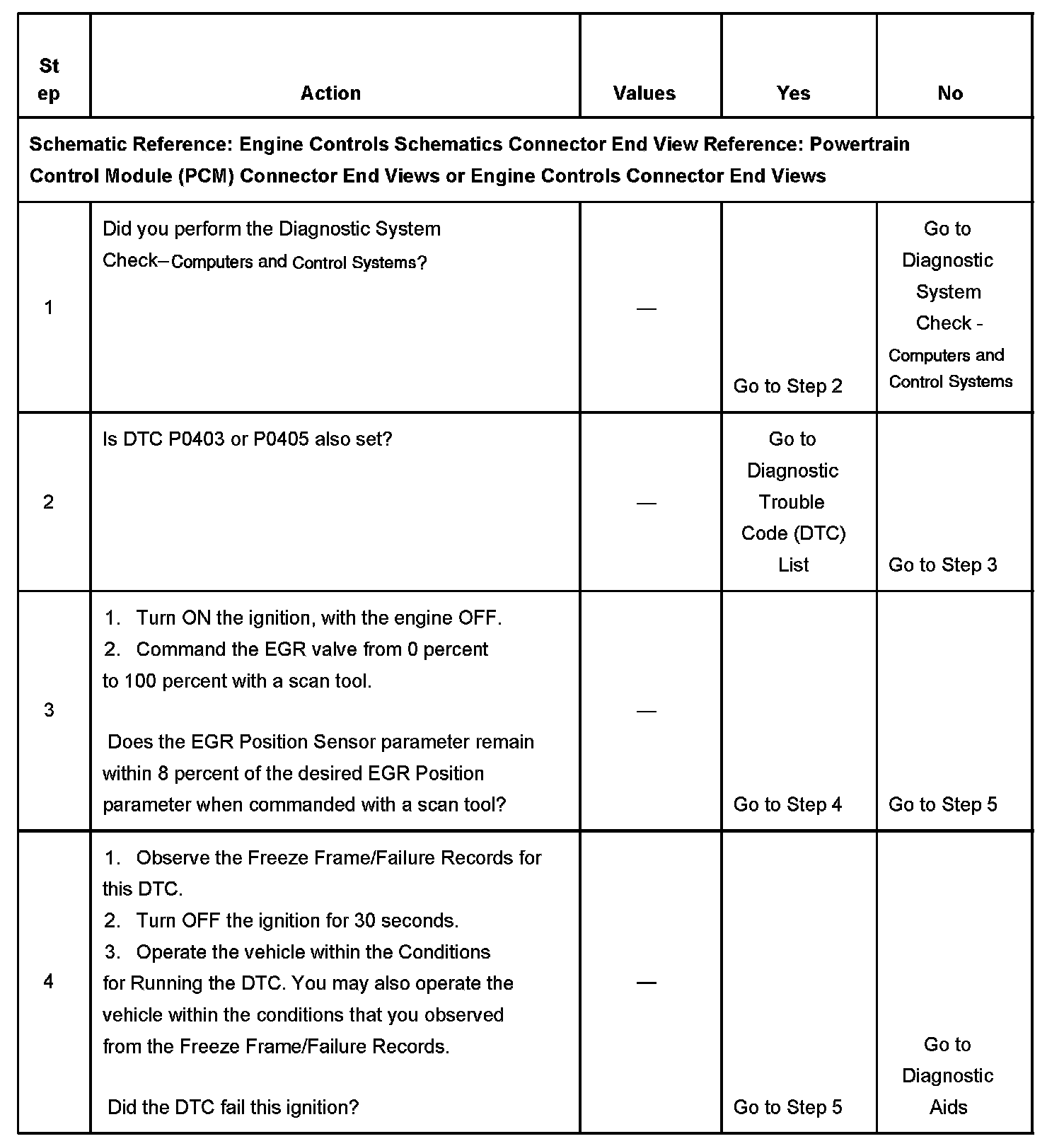

Steps 1-4:

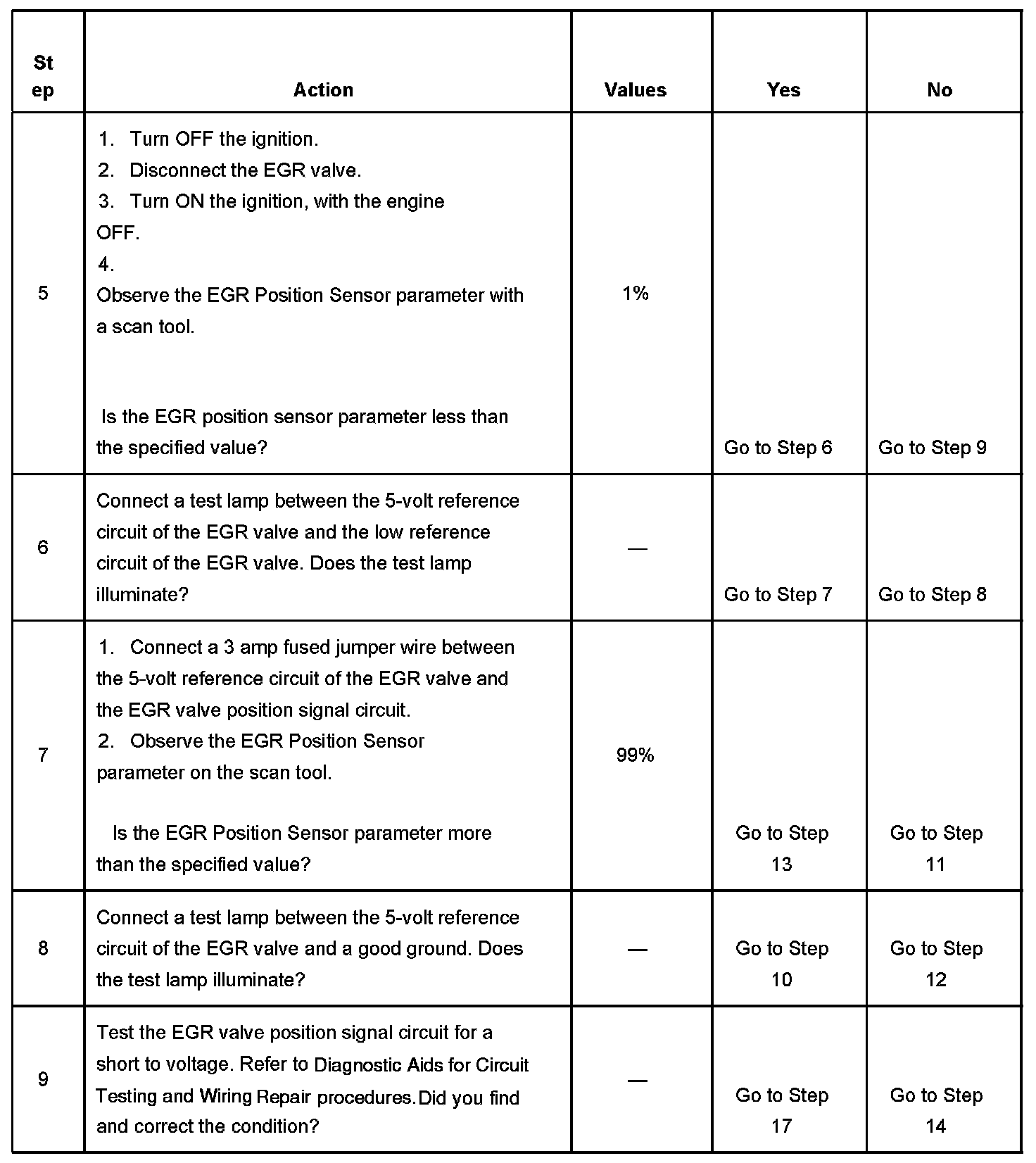

Steps 5-9:

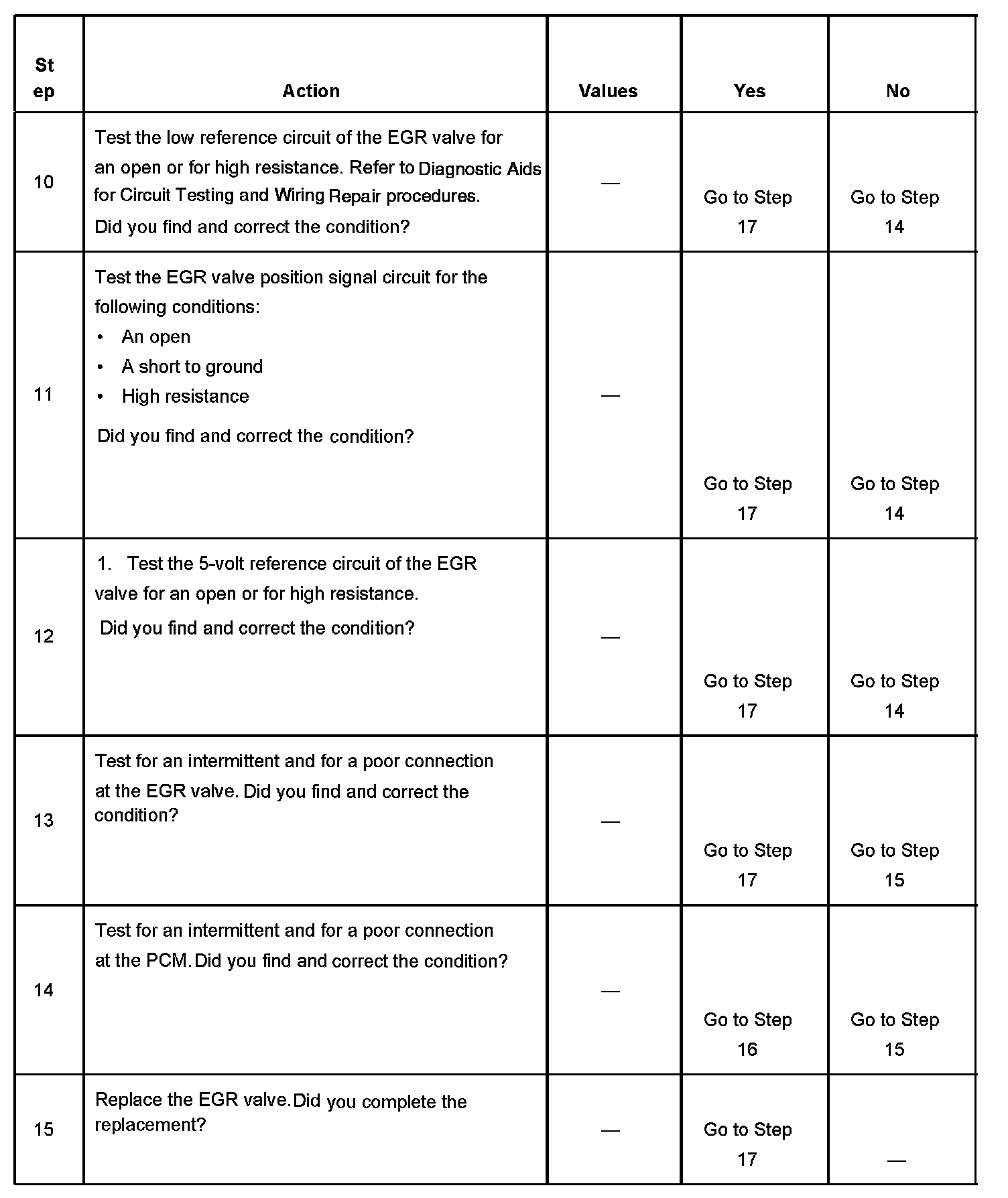

Steps 10-15:

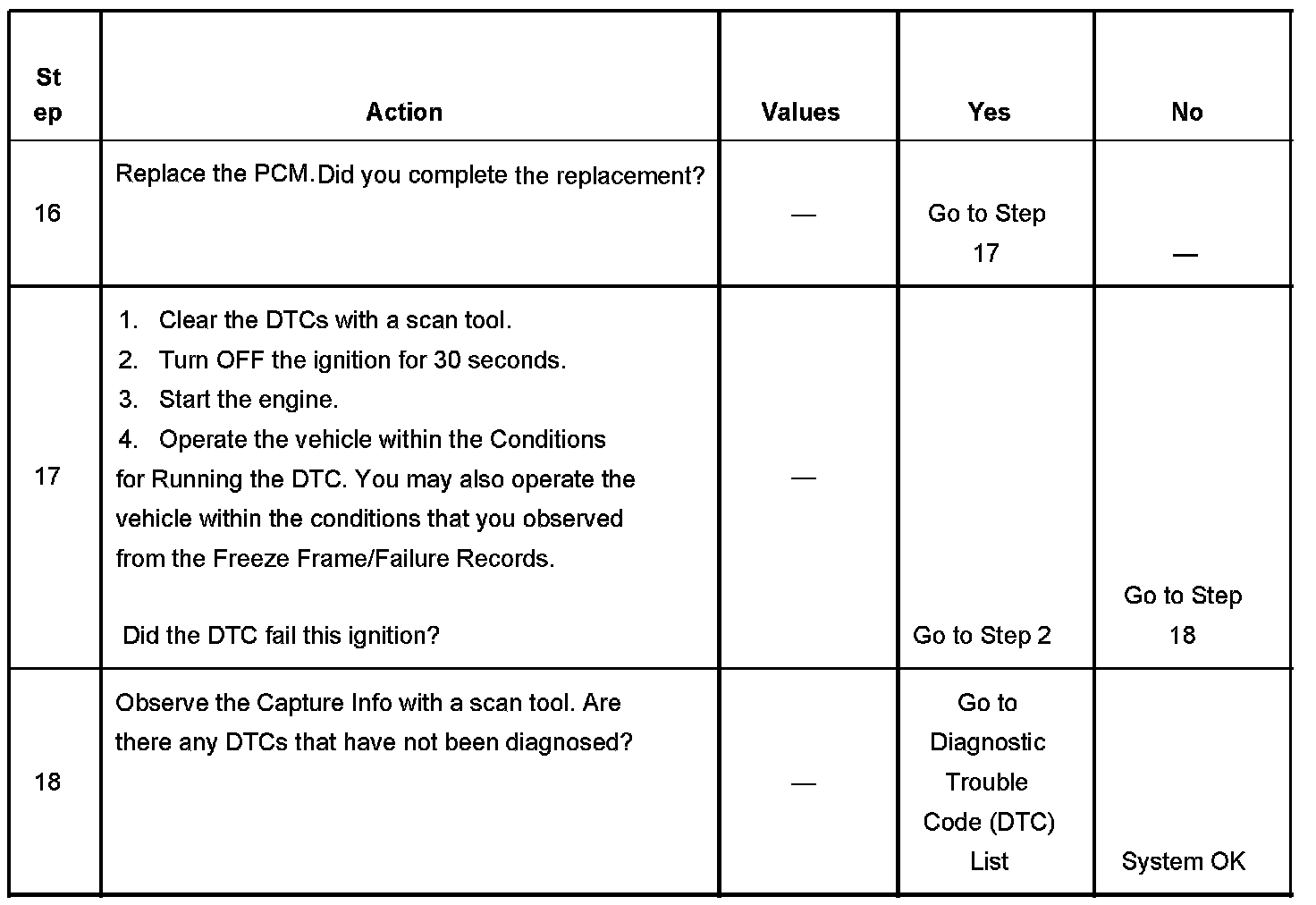

Steps 16-18:
