B1010
DTC B1010CIRCUIT DESCRIPTION
The Calibration ROM check sum error detection is handled inside the control module. No external circuits are involved.
CONDITIONS FOR RUNNING THE DTC
The microprocessor runs the program to detect a ROM check sum error after each power up. The only requirements are voltage and ground. This program runs even if the voltage is out of the valid operating range.
ACTION TAKEN WHEN THE DTC SETS
The microprocessor reverts to base operation values programmed for those blocks of data that have failed the ROM check sum test. The blocks of data that have not failed the check sum test are not affected.
CONDITIONS FOR CLEARING THE DTC
- A current DTC clears when the malfunction is no longer present.
- A history DTC clears when the module ignition cycle counter reaches the reset threshold, without a repeat of the malfunction.
DIAGNOSTIC AIDS
- This DTC may be stored as a History DTC without affecting the operation of the module. If stored only as a History DTC and not retrieved as a current DTC, do not replace the module.
- If this DTC is retrieved as a Current DTC, replace the module.

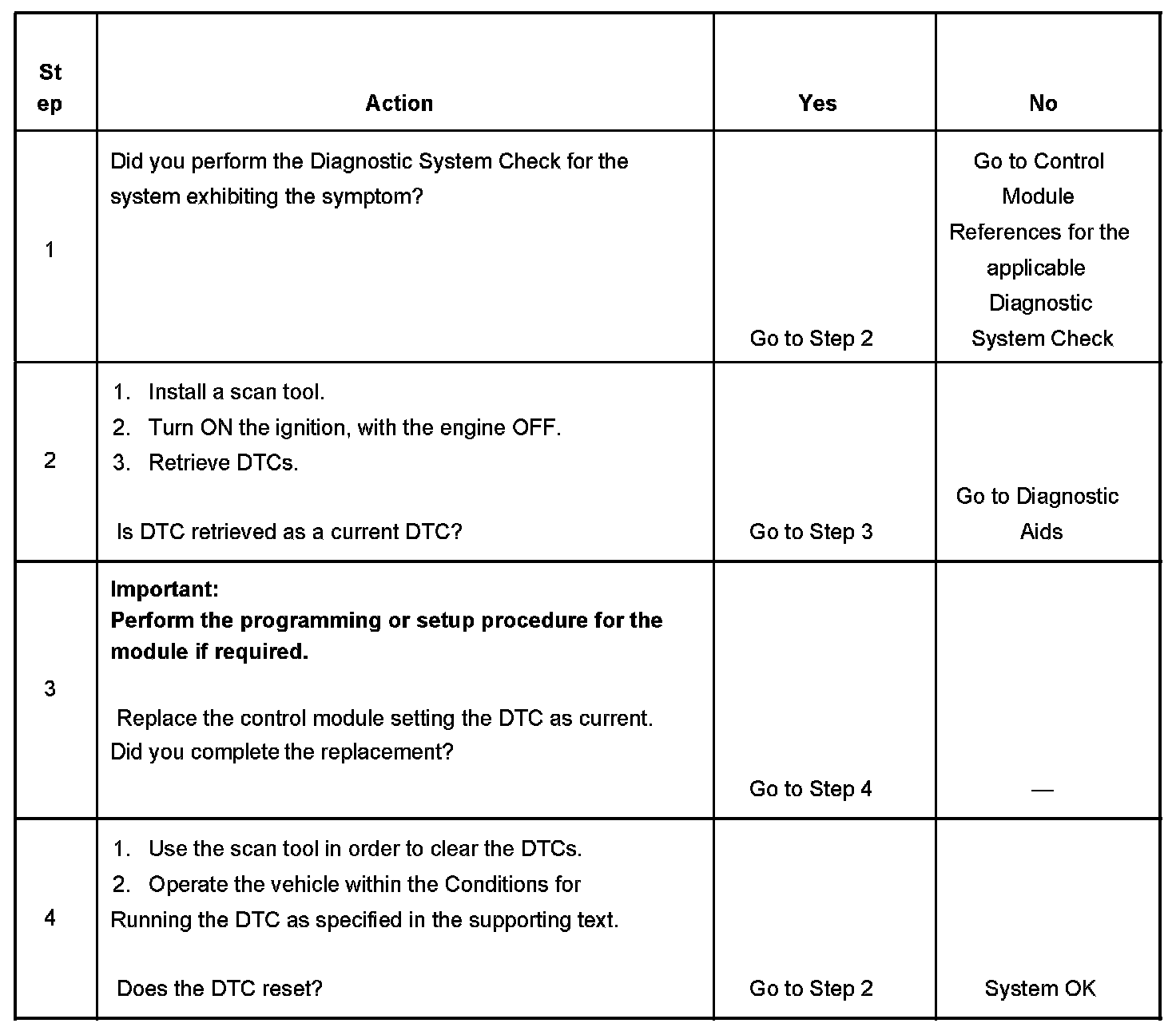

TEST
