Restraint System Diagnosis

CIRCUIT DESCRIPTION
When the ignition is turned ON the inflatable restraint Sensing And Diagnostic Module (SDM) compares the restraint ID that is stored in the SDM to the restraints ID that is stored in the Dash Integration Module (DIM). The restraints ID that is being compared to contains the last four digits of SDM part number. The SDM receives these messages and compares them to information stored in memory, this DTC is set when the SDM receives a restraints ID over the class 2 communication circuit from the DIM that is different from the ID that is stored in the SDM memory.

CONDITIONS FOR RUNNING THE DTC
Ignition 1 Voltage is within the normal operating voltage range.

CONDITIONS FOR SETTING THE DTC
- The restraints ID that is stored in the SDM does not match the restraints ID that is stored in the DIM.
- This test is only run once during power initialization.

ACTION TAKEN WHEN THE DTC SETS
- The SDM commands ON the AIR BAG warning lamp via Class 2 serial data.
- The SDM disables all deployments.

CONDITIONS FOR CLEARING THE DTC
The restraints ID that is stored in the SDM matches the restraints ID that is stored in the DIM.

DIAGNOSTIC AIDS
This DTC is an indication that an incorrect SDM is installed in the vehicle, or that the SDM and/or the DIM was replace without reprogramming the DIM with the new information.

TEST DESCRIPTION

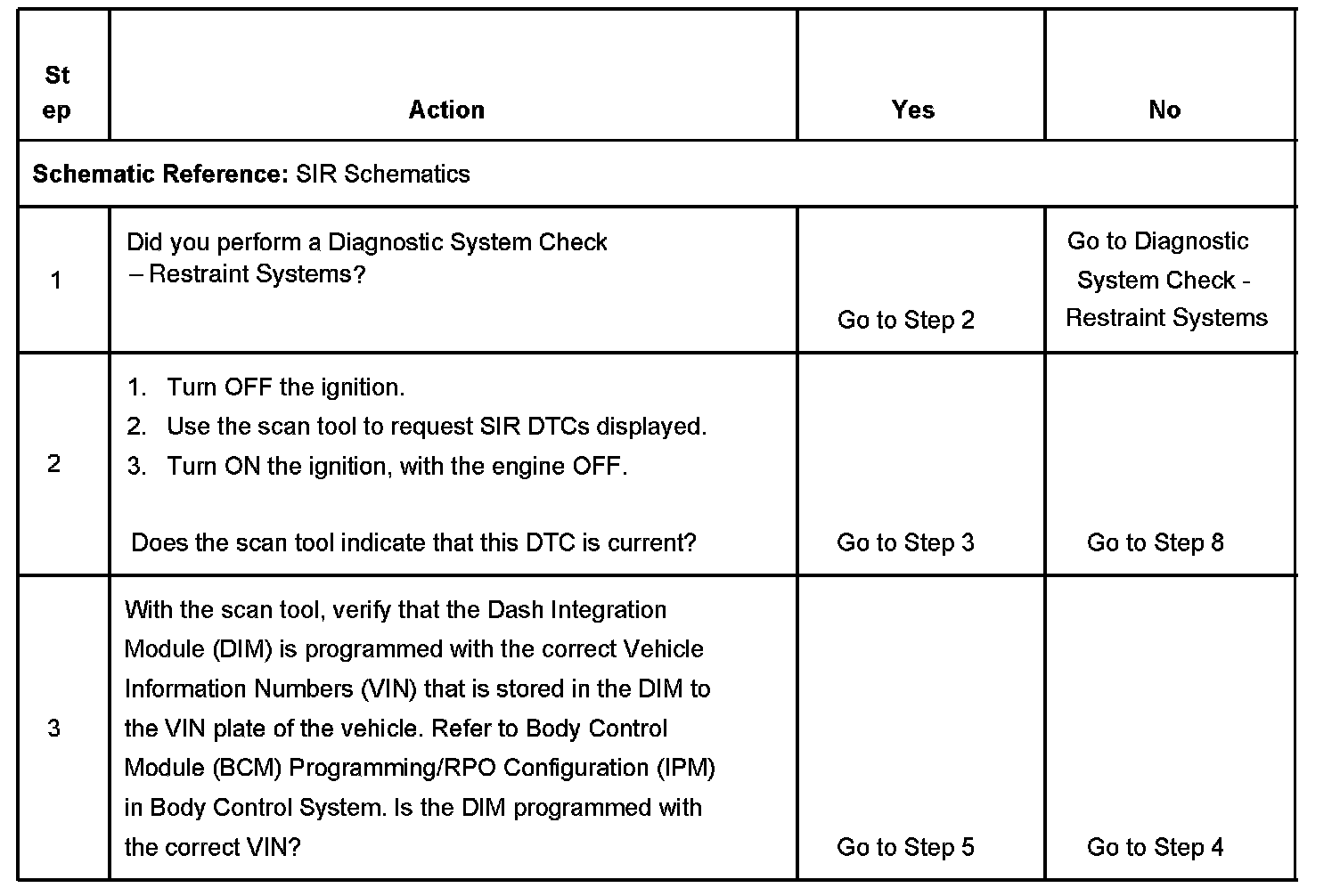

Steps 1-3:

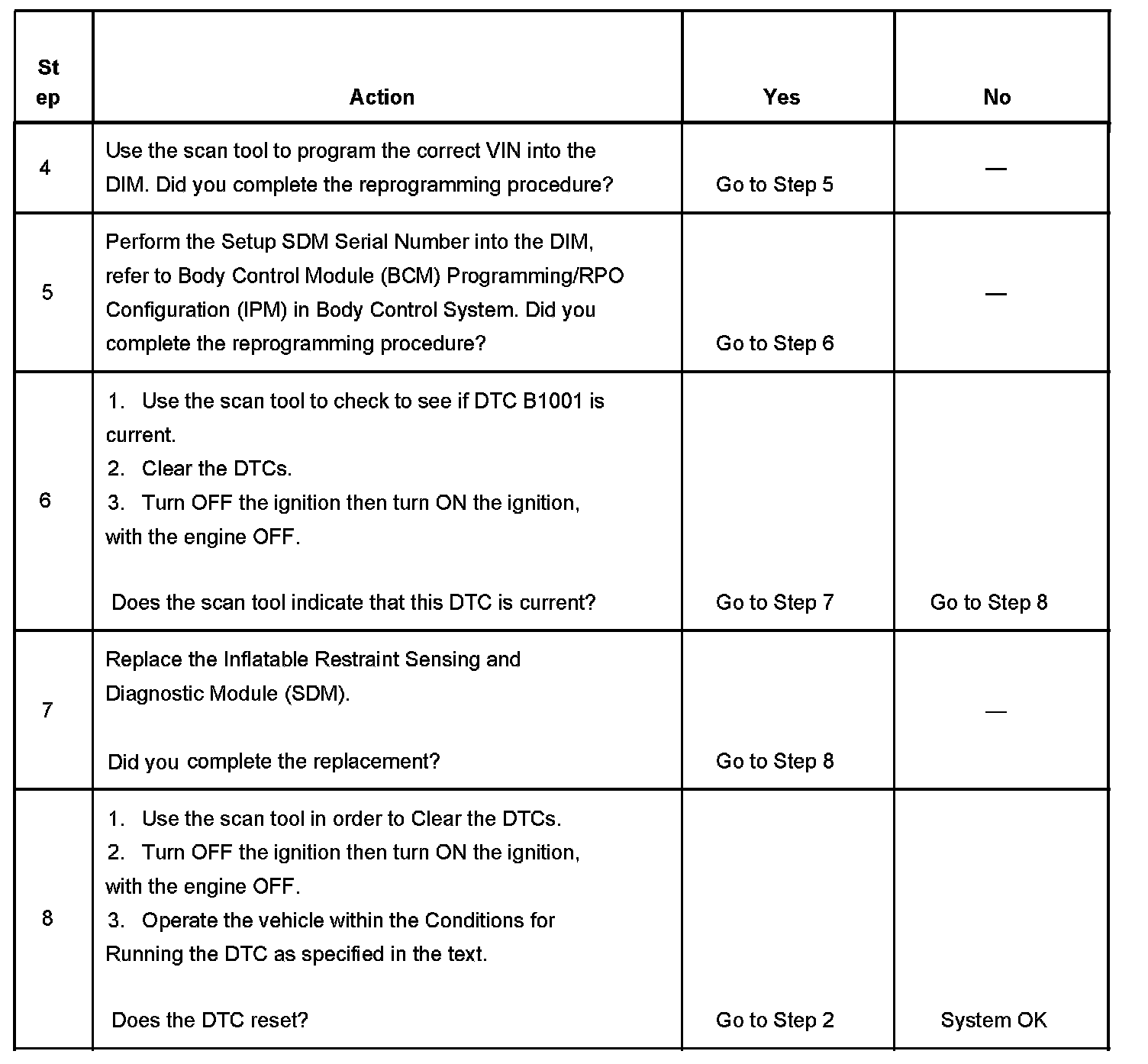

Steps 4-8:

The following numbers refer to the step numbers in the diagnostic table:
2. This test checks for current inflatable restraint sensing and diagnostic module (SDM) DTCs.
3. This test checks to see if the correct Vehicle Information Numbers (VIN) is programmed in the Dash Integration Module (DIM).
4. This step explains that the DIM must be programmed.
6. This test checks to see if after clearing the DTCs if this DTC is current then its possible that the wrong SDM has been installed.
