Home >> Oldsmobile >> 2003 >> Alero L4-2.2L VIN F >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Component Locations >> Passenger Compartment Views

Passenger Compartment Views

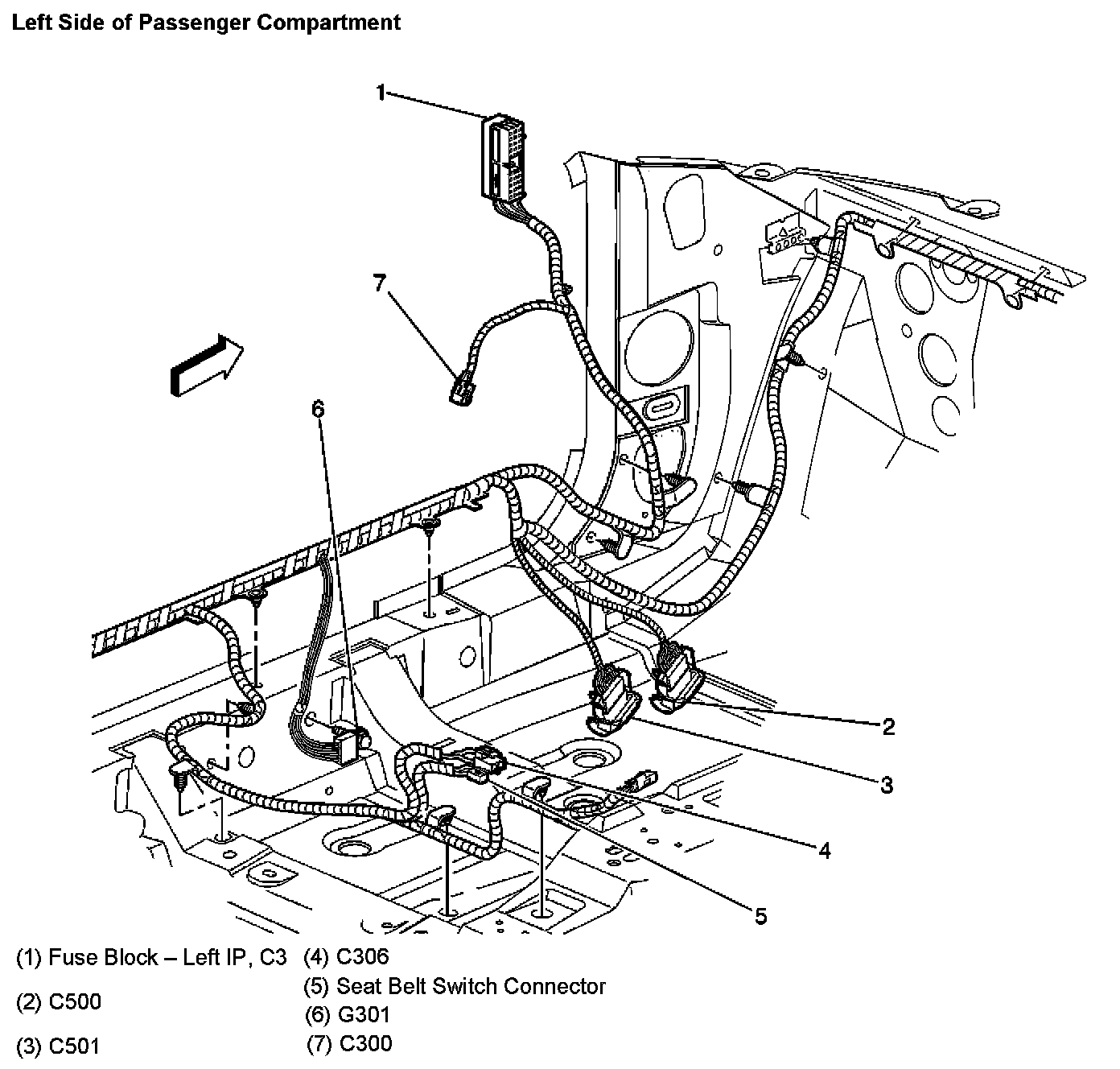

Left Side Of Passenger Compartment:
