Body Control Systems

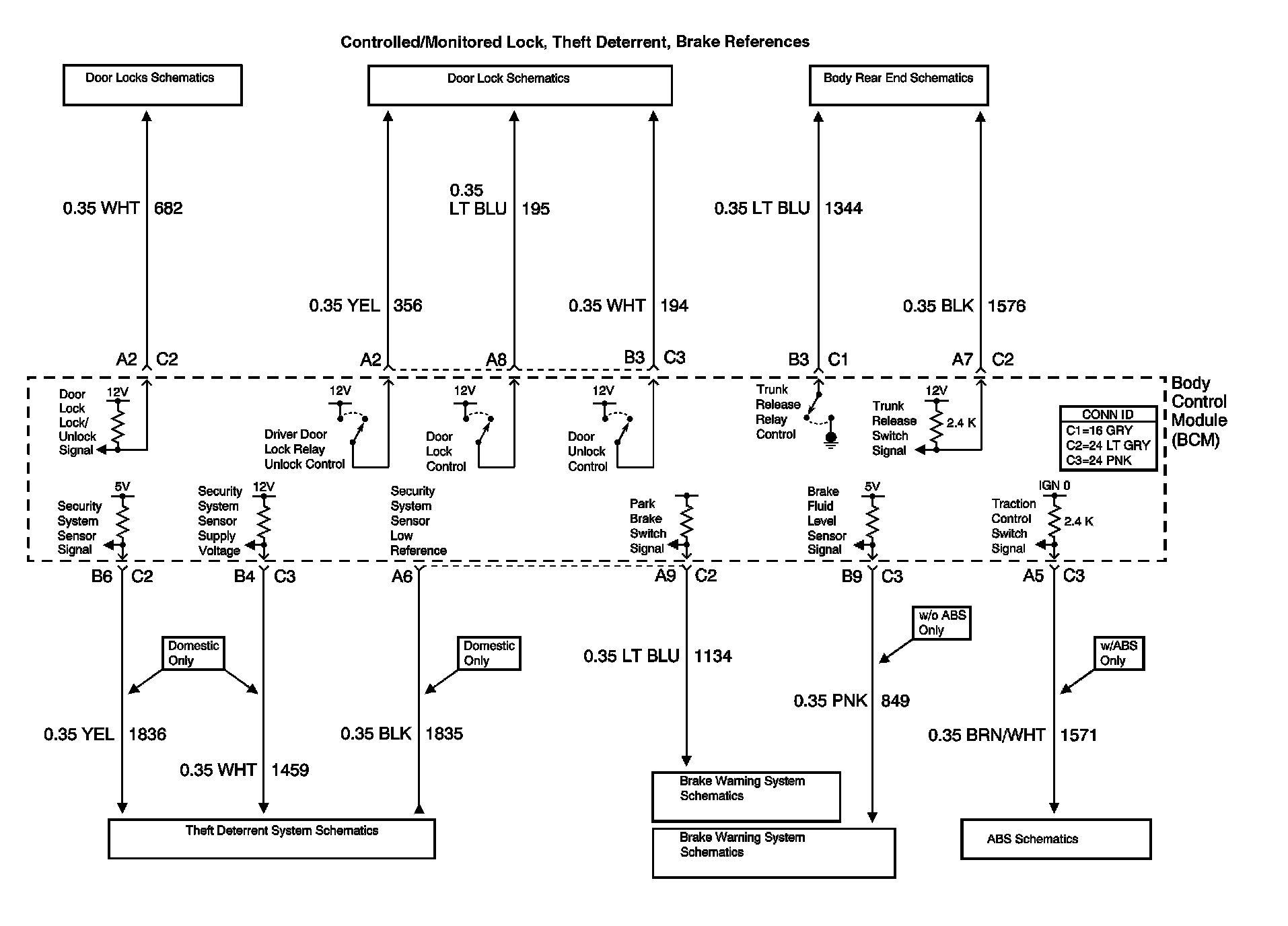

Body Control Systems Diagram 1:

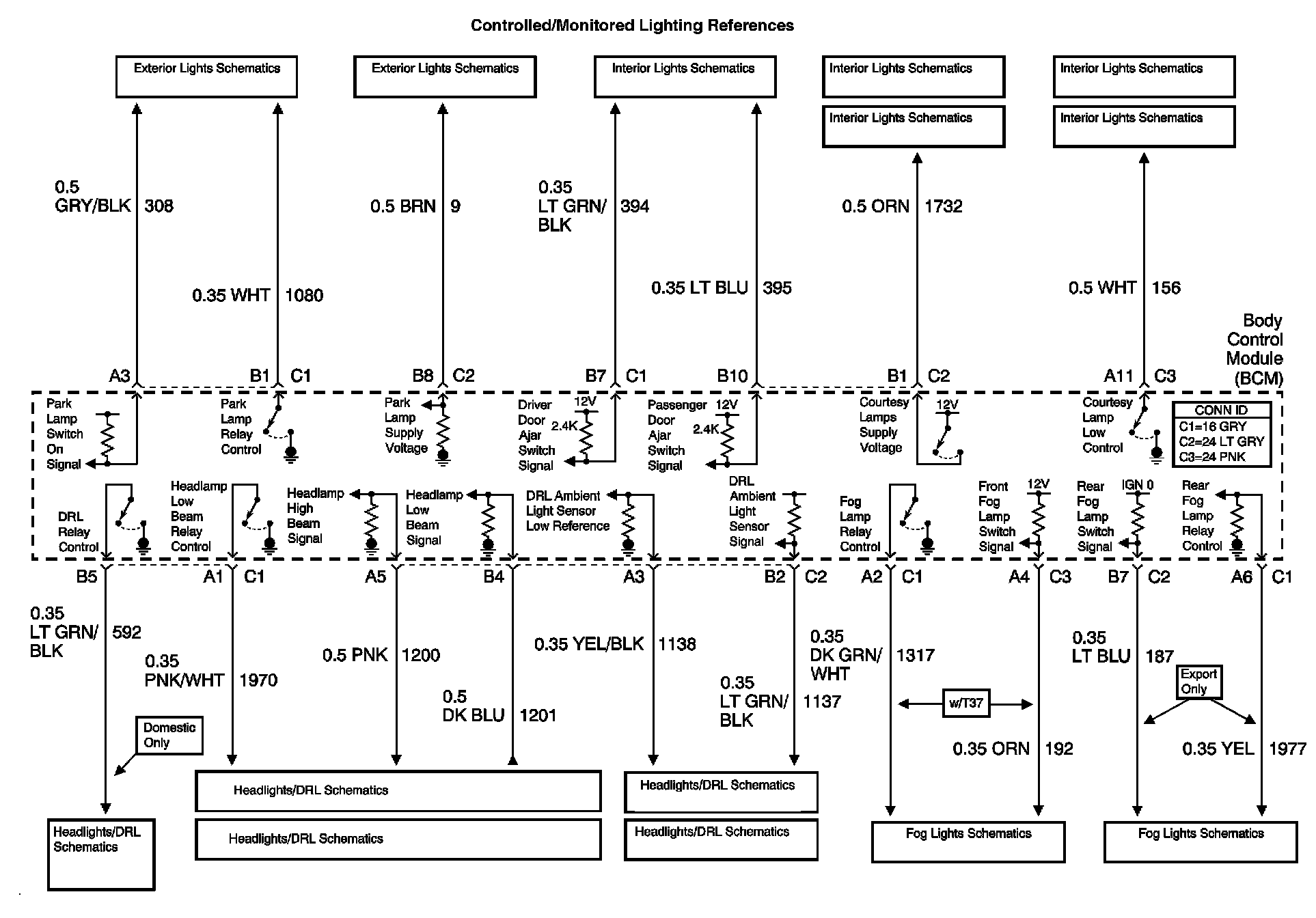

Body Control Systems Diagram 2:

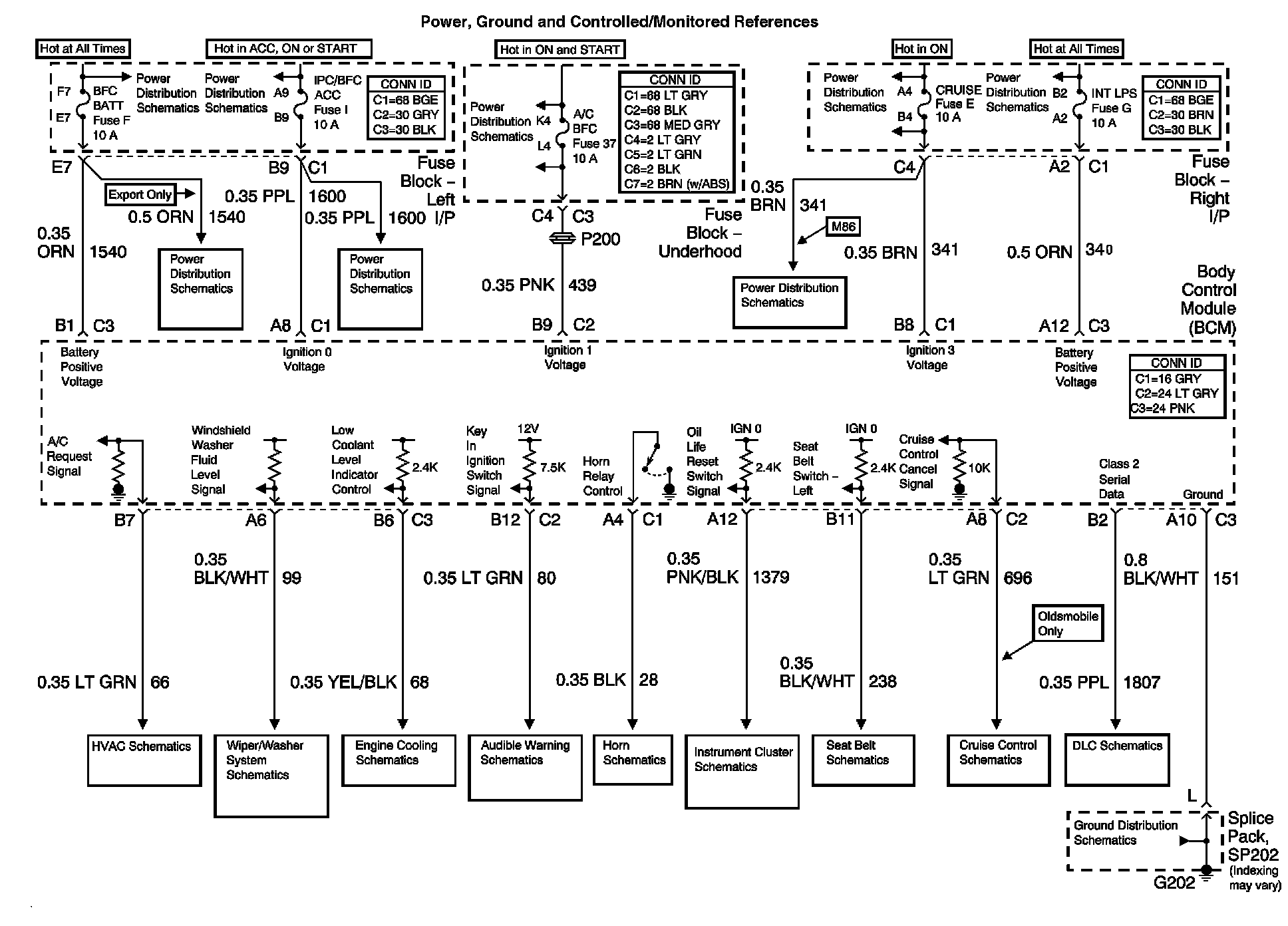

Body Control Systems Diagram 3:
