Turn Signal Switch

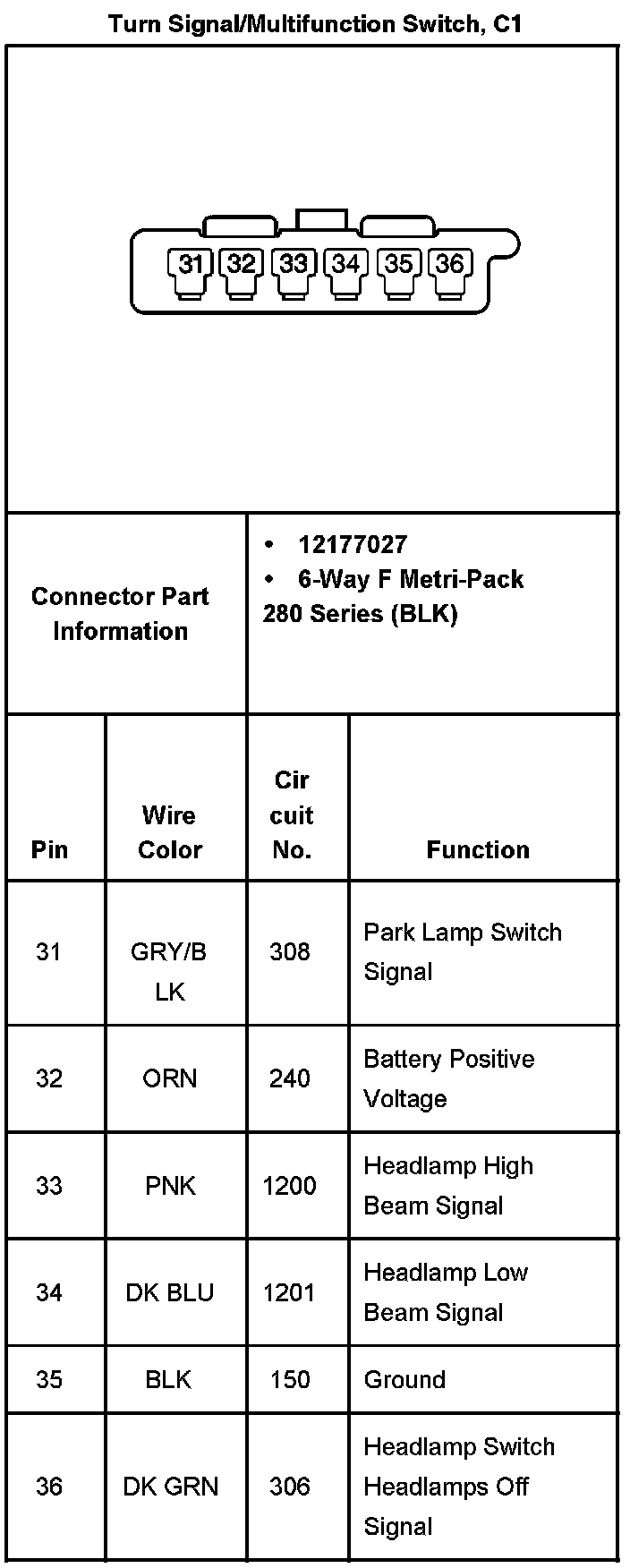

Turn Signal/Multifunction Switch, C1:

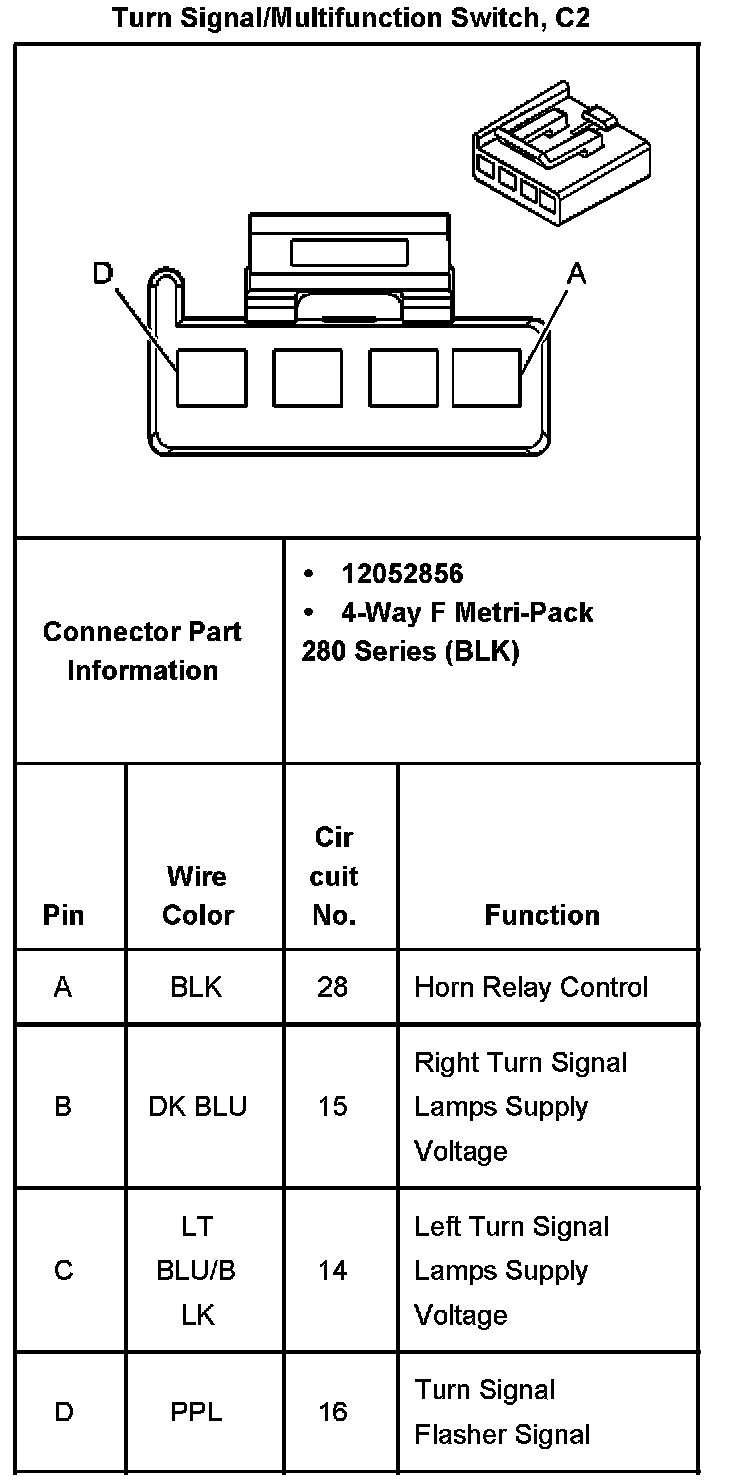

Turn Signal/Multifunction Switch, C2:

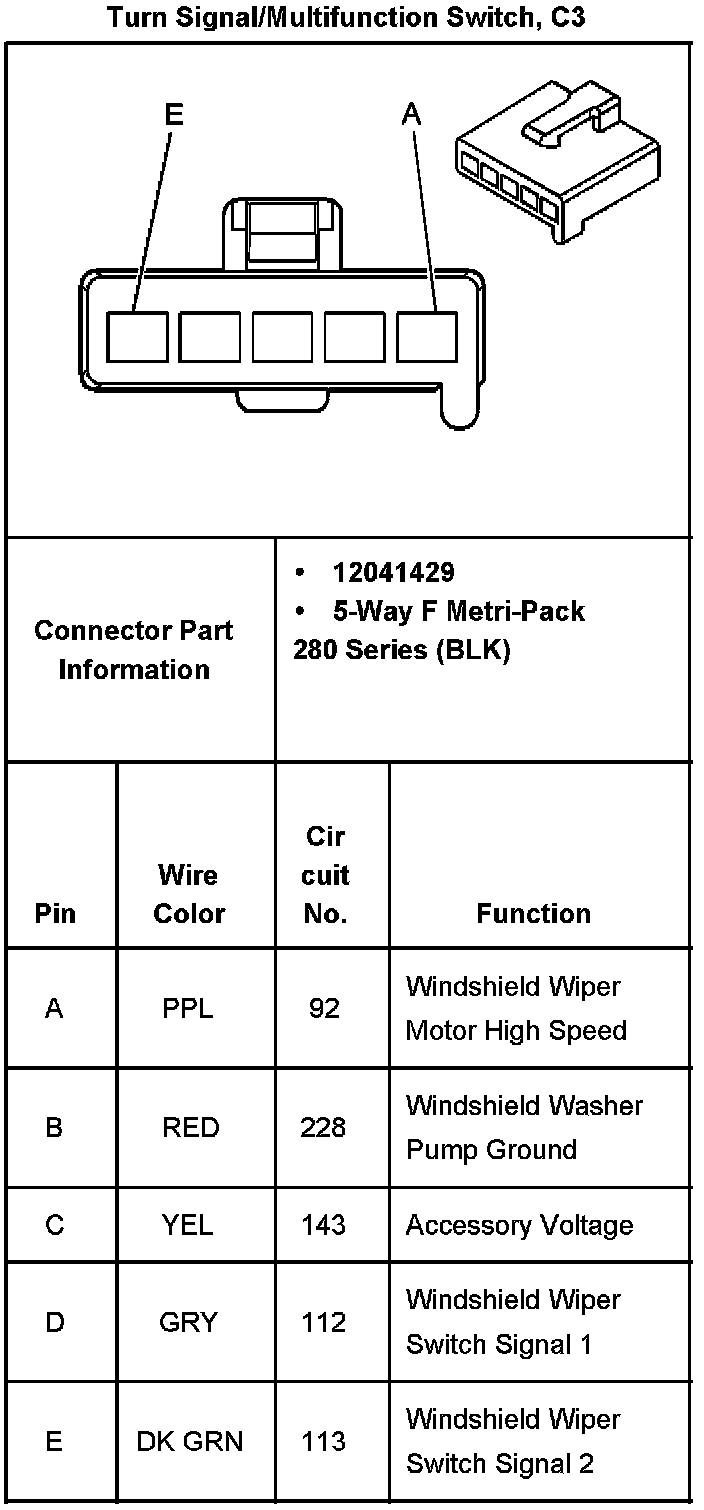

Turn Signal/Multifunction Switch, C3:
