Home >> Oldsmobile >> 2002 >> Intrigue V6-214 3.5L VIN H SFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Intake Manifold

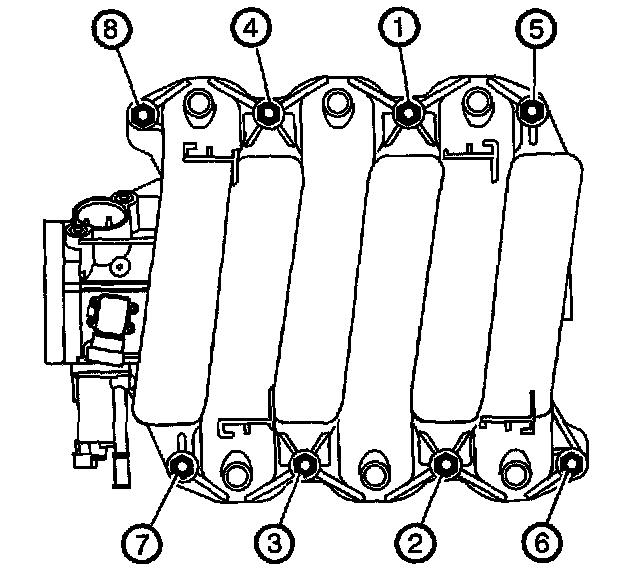

Intake Manifold

EGR Pipe attached to Intake Manifold Bolt 89 inch lbs





Intake Manifold Bolt/Stud 62 inch lbs
