Home >> Oldsmobile >> 2002 >> Intrigue V6-214 3.5L VIN H SFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> On-Vehicle

On-Vehicle

Specifications

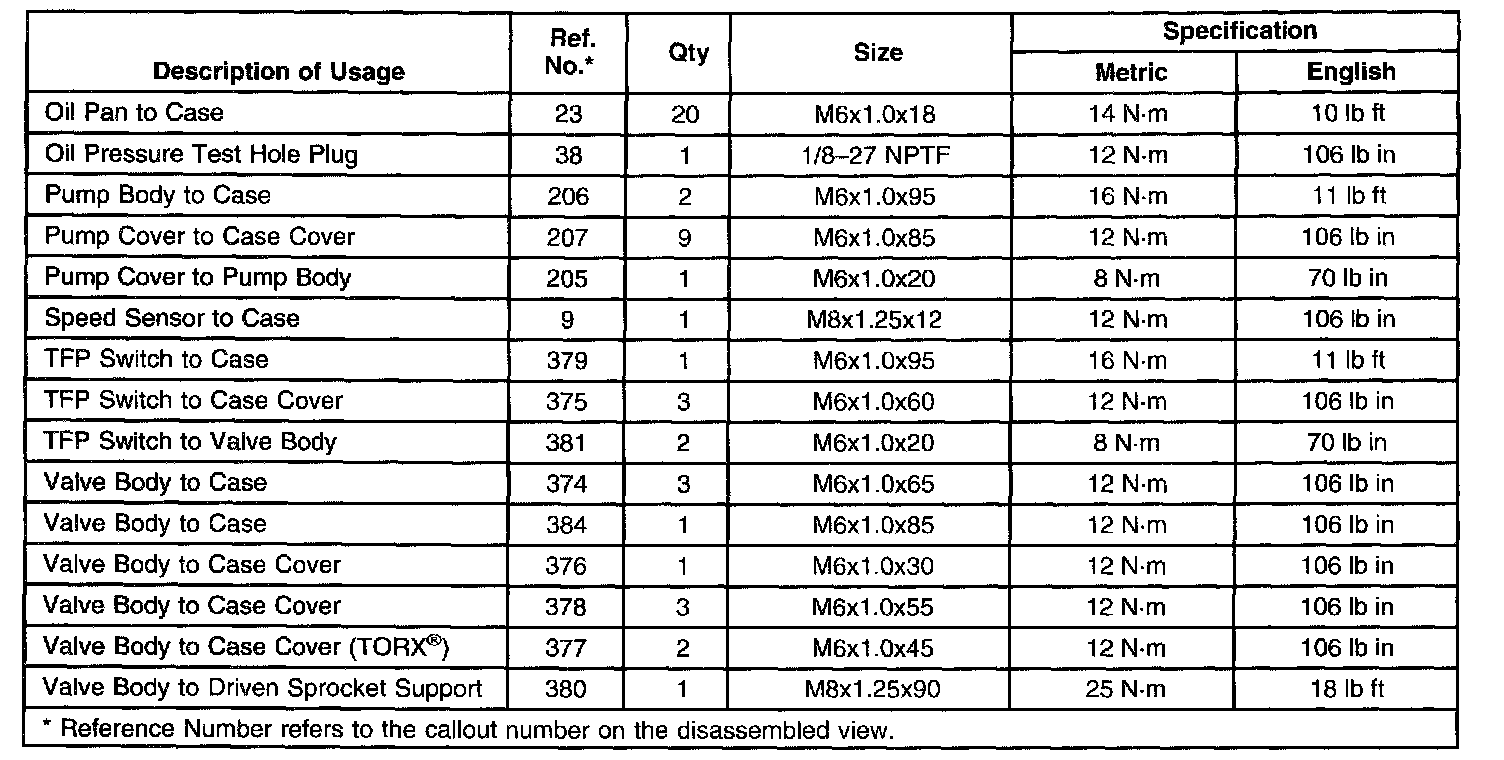

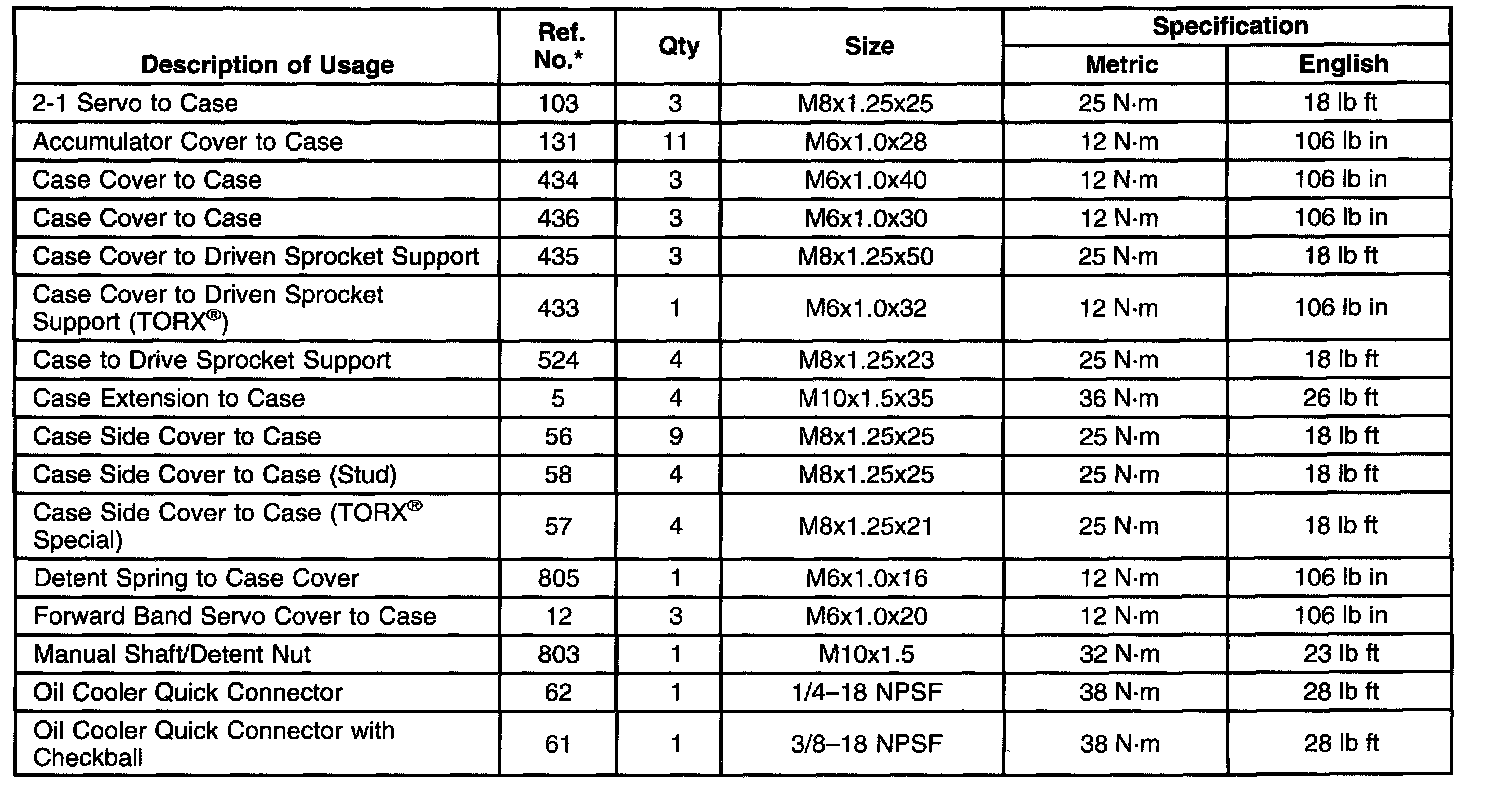

Fastener Tightening Specifications

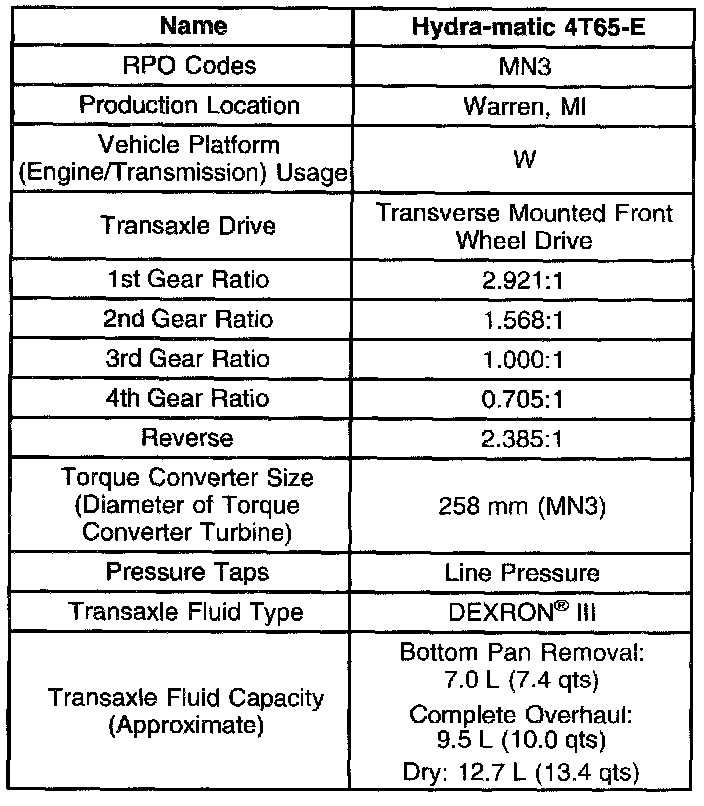

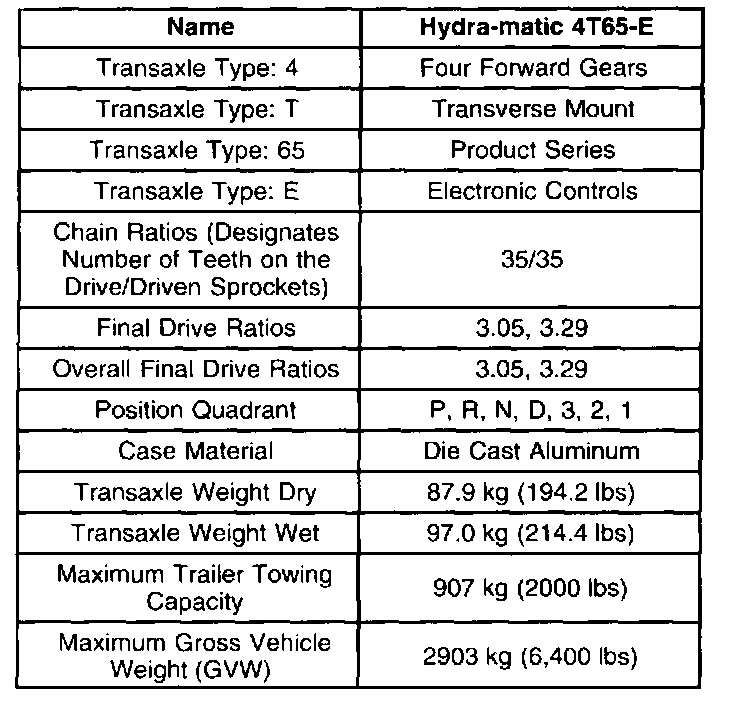

Transmission General Specifications

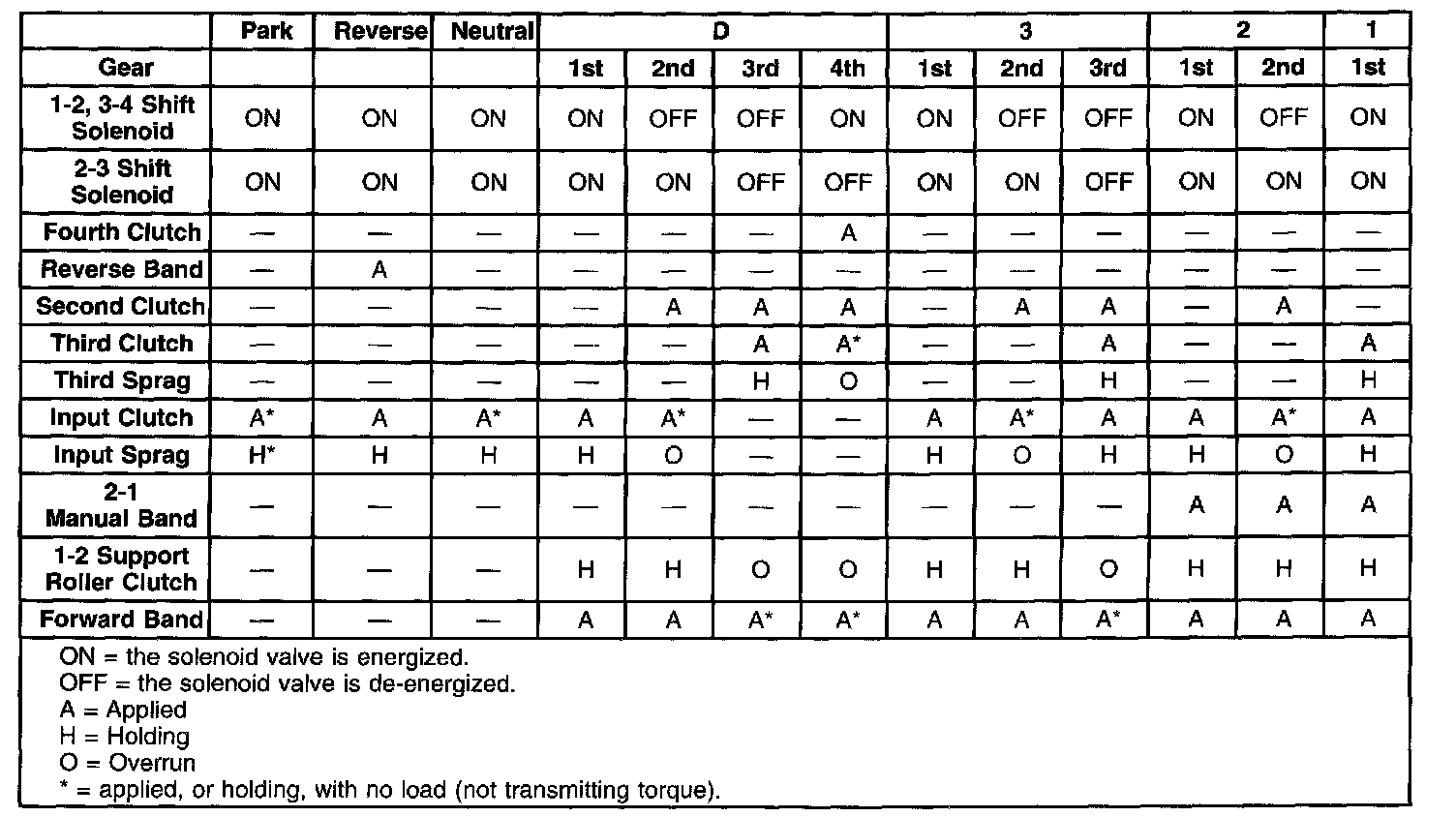

Range Reference

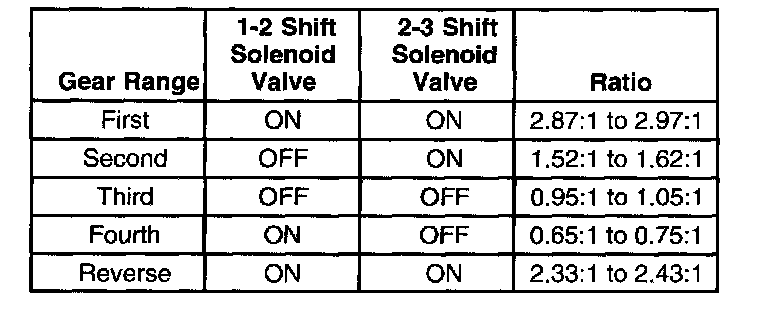

Shift Solenoid Valve State And Gear Ratio

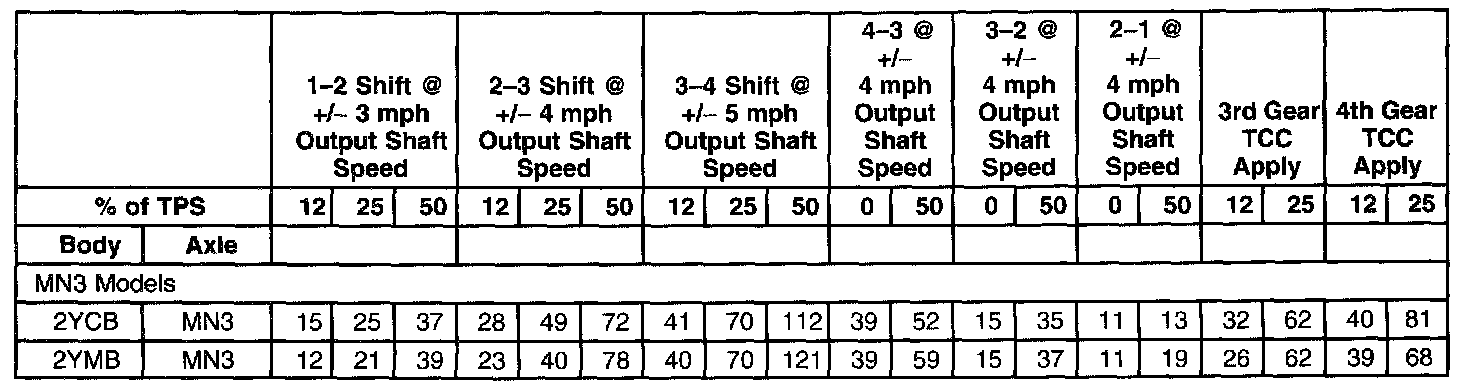

Shift Speed
