Automatic Transmission/Transaxle

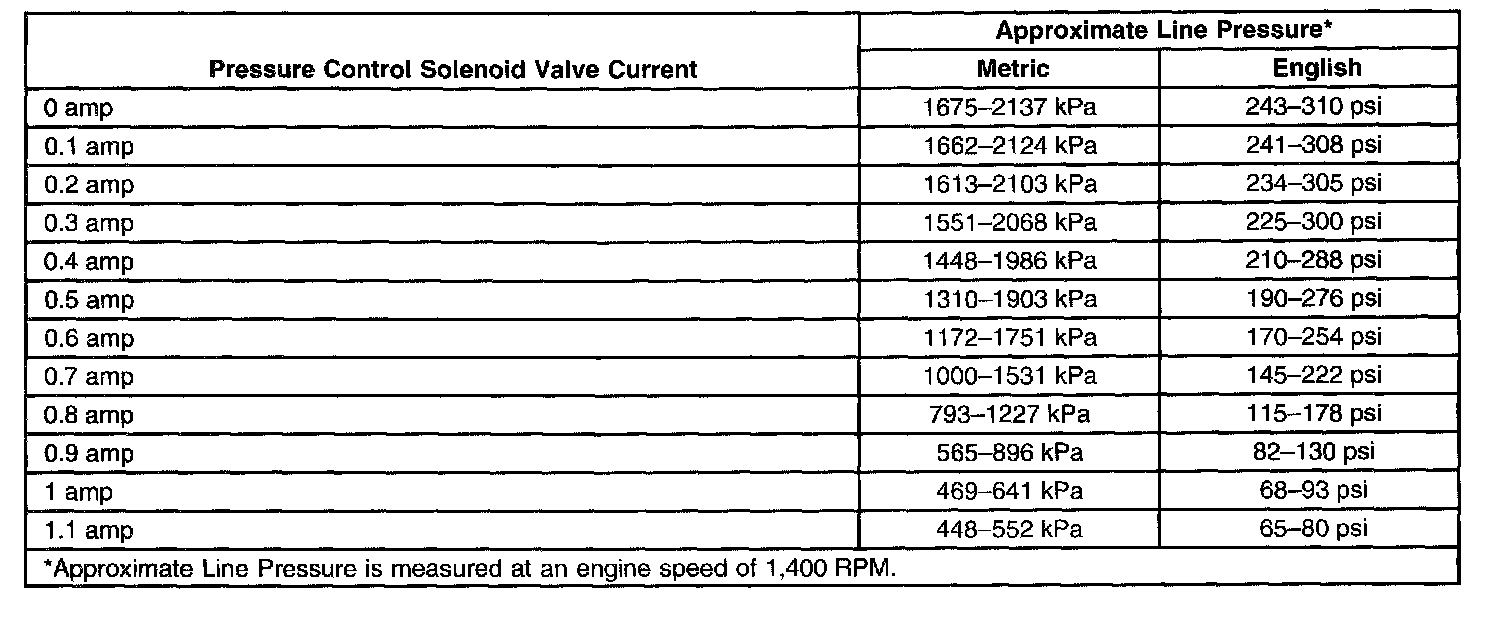

Specifications





Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic





Transmission Range Switch Logic

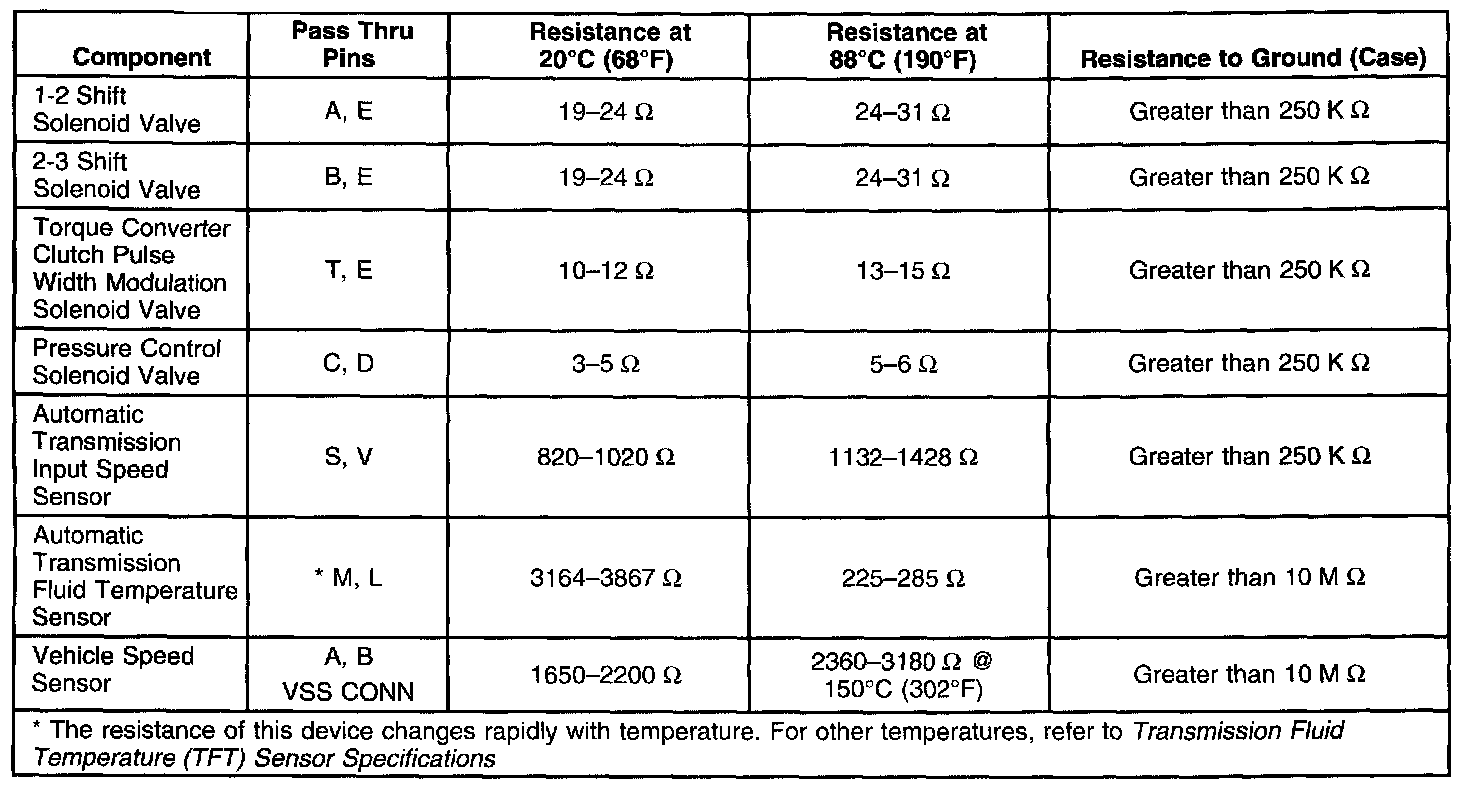

Component Resistance
