Transmission Position Sensor/Switch: Diagrams

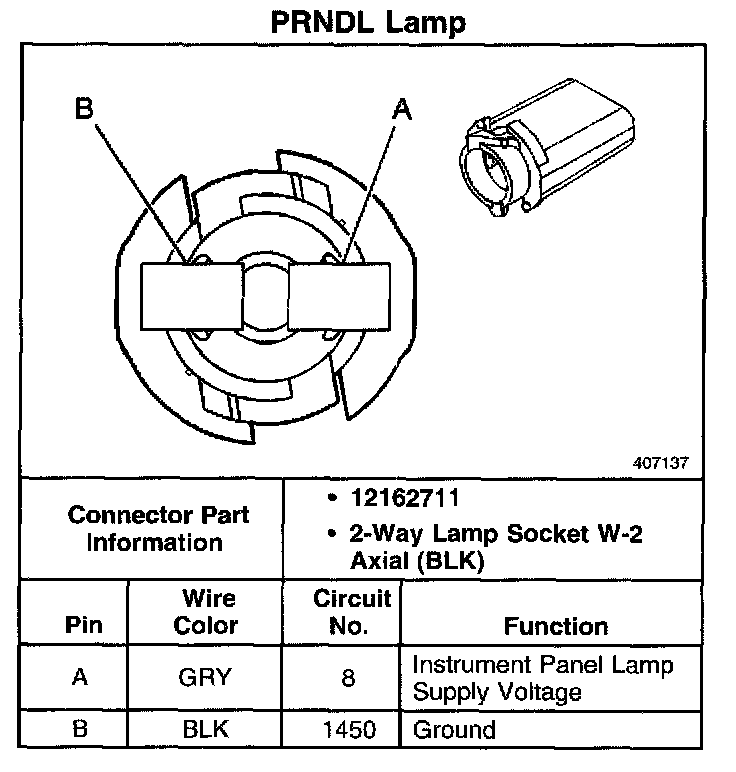

PRNDL Lamp:

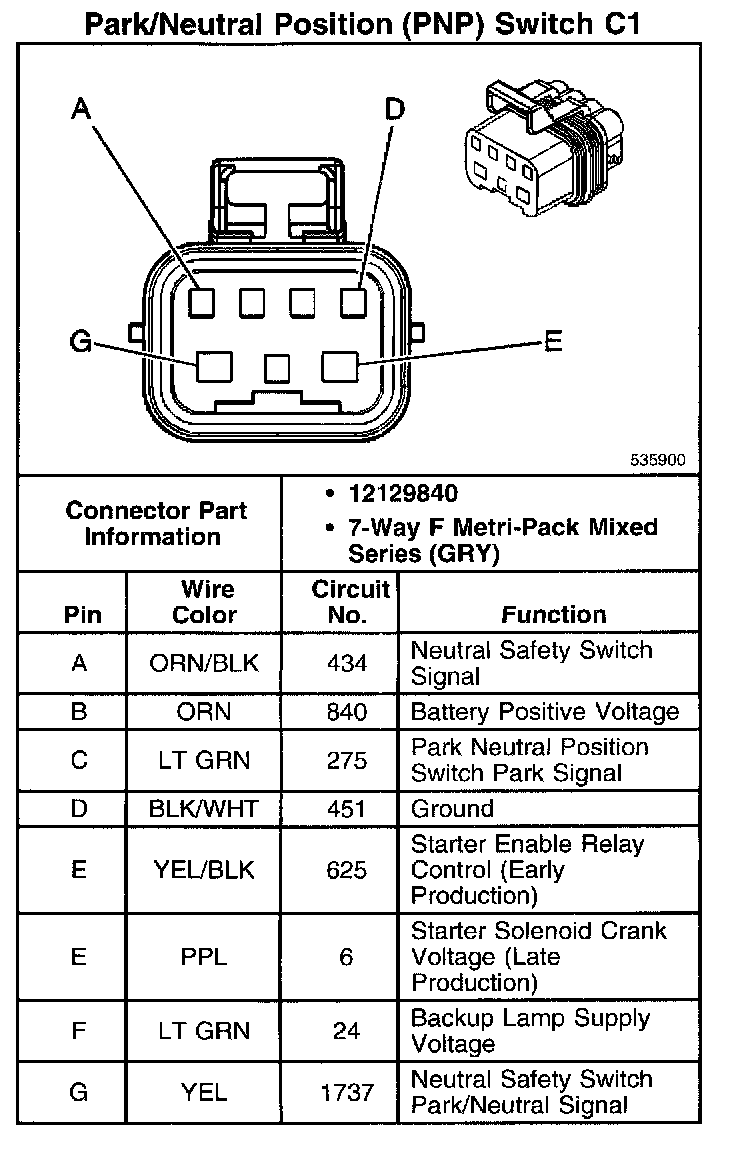

Park/Neutral Position (PNP) Switch C1:

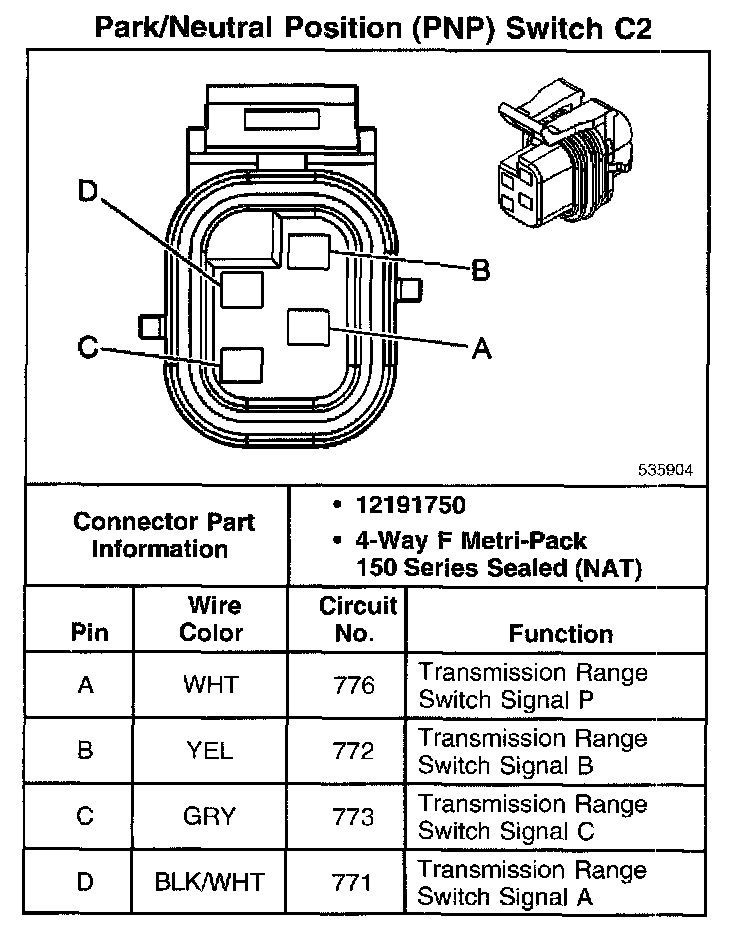

Park/Neutral Position (PNP) Switch C2:
